Ricoh MPC 2800 AT-C2 User Manual

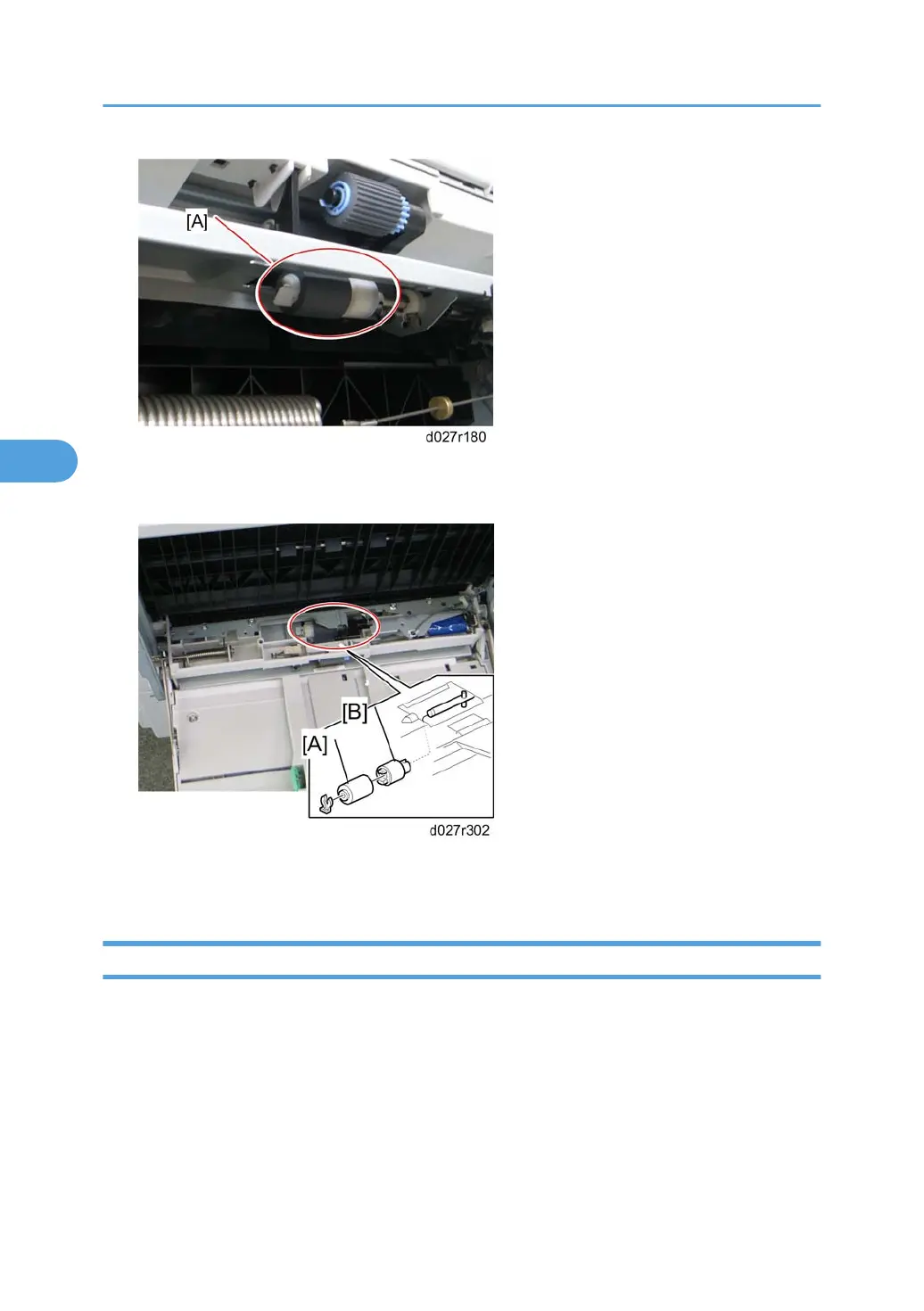

3. By-pass feed roller [A] ( x 1)
4. By-pass feed unit cover (*p.272 "By-pass Paper End Sensor")
5. By-pass separation roller [A] ( x 1)
6. Torque limiter [B]
By-pass Feed Clutch
1. Open the right door.
2. Right door rear cover (*p.269)
4. Replacement and Adjustment
274
4
