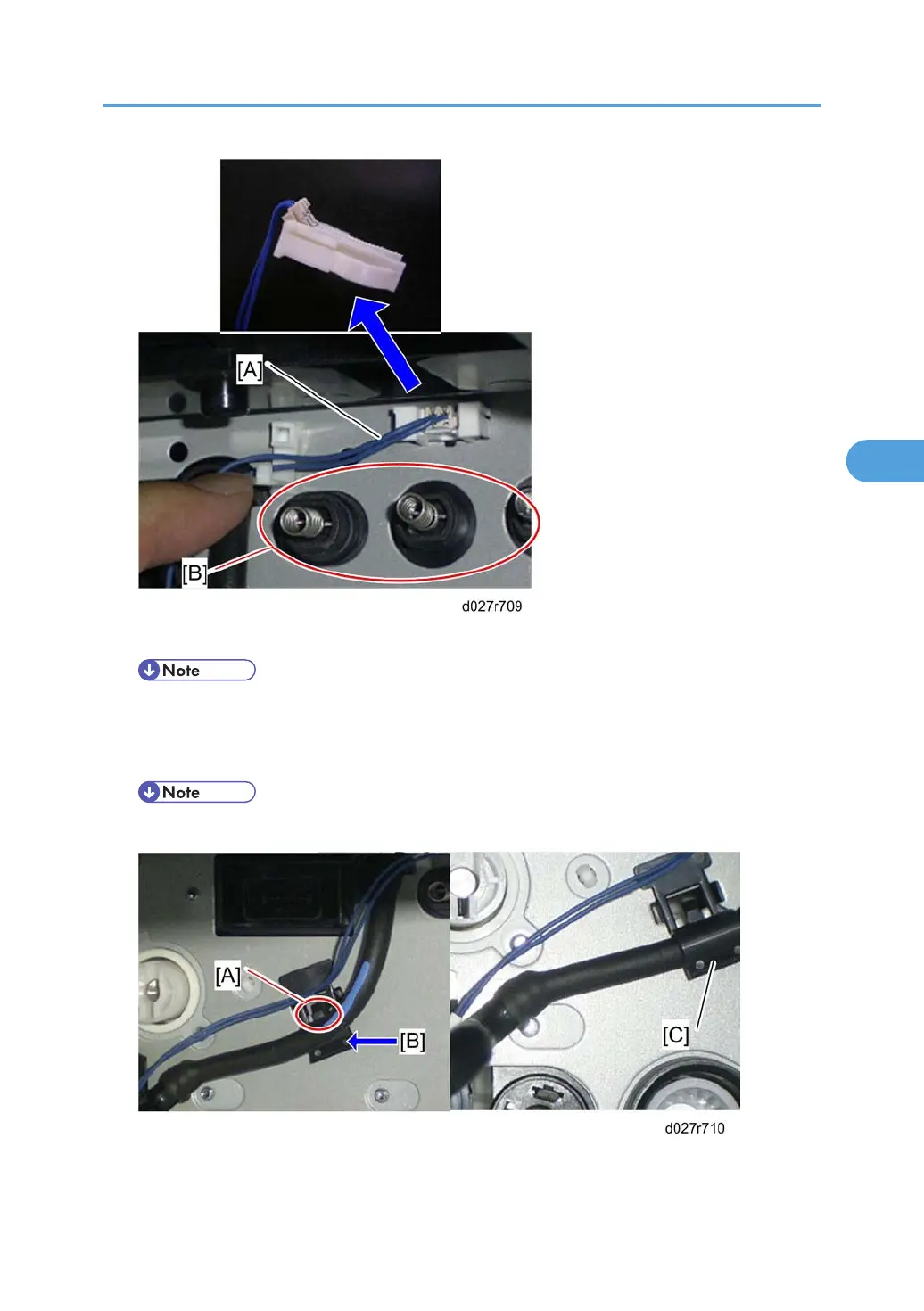

4. Connect the harness [A] to the connector of the machine.
• On the above picture, the magnified picture of the connector shows the easiest way to connect
it.
5. Clamp the harness [A] ( x 1 for YCM,  x 2 for K).
• Avoid touching these spring terminals [B].
6. Pass the harness of the toner pump unit behind the hook [A], while pressing at [B].
7. Secure the toner supply tube with the holder [C], lifting up the edge of the holder "very gently".
