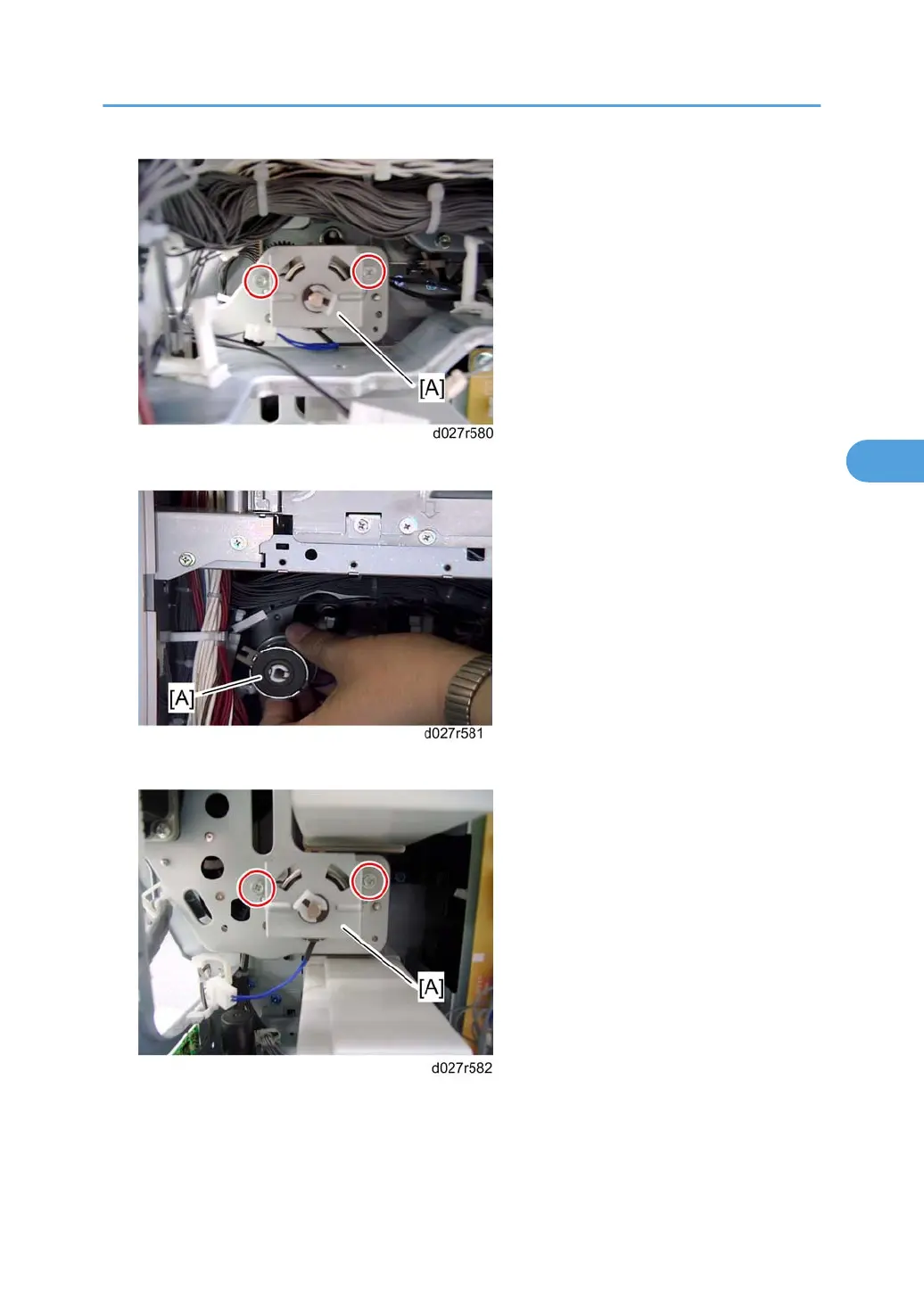

4. Paper feed clutch 1 bracket [A] ( x 2,  x 1, x 1,  x 1)

5. Paper feed clutch 1 [A]

6. Paper feed clutch 2 bracket [A] ( x 2,  x 1,  x 1)

Drive Unit

243

4
