5.22

SEL-311C Relay Instruction Manual Date Code 20060320

Trip and Target Logic

Directional Comparison Unblocking Logic

q To Figure 5.11; w to Figure 5.7.

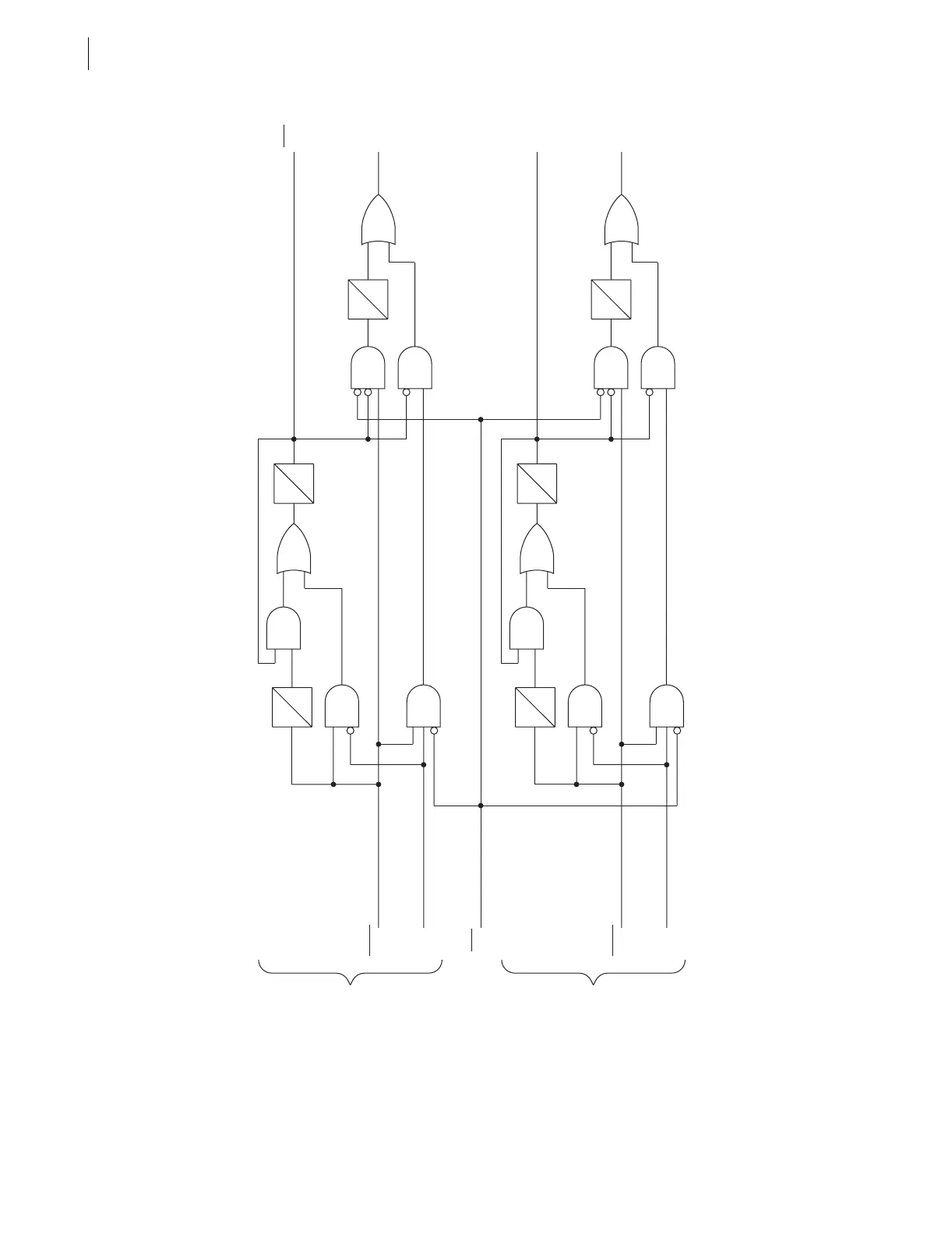

Figure 5.10 DCUB Logic

UBB2 q

LOG2

PT2

Loss-of-Guard Input

Permissive Trip Input

Z3RB

(from POTT logic)

Logic enabled

if setting

ECOMM = DCUB2

Logic enabled

if setting

ECOMM = DCUB1

ECOMM = DCUB2

PTRX2

Loss-of-Channel

UBEND

UBDURD

GARD1D

Relay

Word

Bit

Relay

Word

Bits

SELOGIC

Settings

UBB1 q

LOG1

PT1

Loss-of-Guard Input

Permissive Trip Input

PTRX1 w

Loss-of-Channel

UBEND

UBDURD

GARD1D

SELOGIC

Settings
