Schweitzer Engineering Laboratories SEL-311C - Figure 8.11 Response of Thermal and Rolling Demand Meters to a Step Input

To Next Page

To Previous Page

8.21

Date Code 20060320 Instruction Manual SEL-311C Relay

Breaker Monitor and Metering Functions

Demand Metering

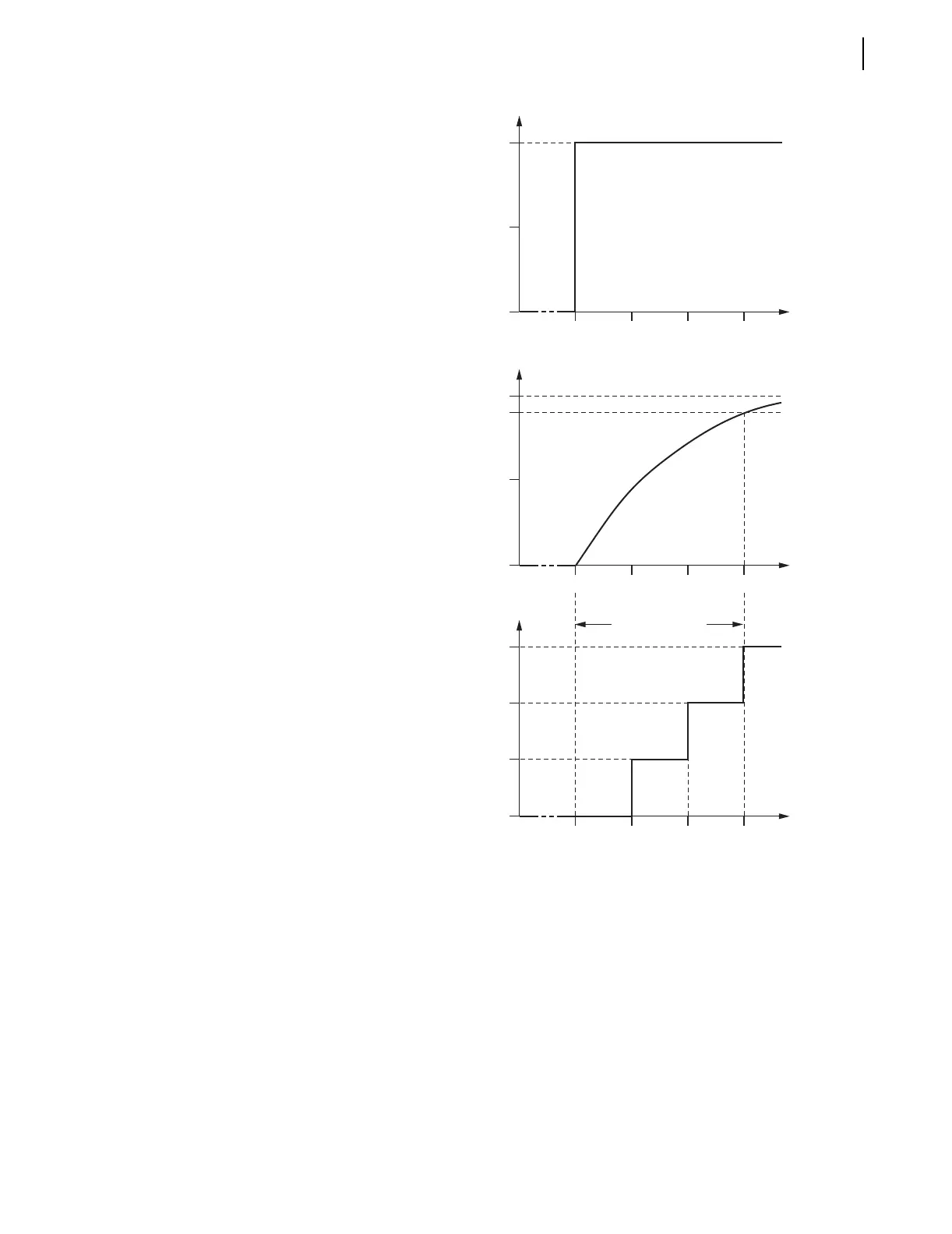

Figure 8.11 Response of Thermal and

Rolling Demand Meters to a Step Input (Setting DMTC = 15 Minutes)

Thermal Demand Meter Response (EDEM = THM)

The response of the thermal demand meter in Figure 8.11 (middle) to the step

current input (top) is analogous to the parallel RC circuit in Figure 8.12.

Thermal Demand

Meter Response

(EDEM = THM)

Thermal Demand Current (per unit)

051015

0.5

0.9

1.0

Time

(Minutes)

Rolling Demand

Meter Response

(EDEM = ROL)

Rolling Demand Current (per unit)

DMTC = 15 minutes

051015

.33

.67

1.0

Time

(Minutes)

Step Current

Input

Instantaneous Current (per unit)

051015

0.5

1.0

Time

(Minutes)
