Schweitzer Engineering Laboratories SEL-311C - Figure 6.3 Reclose Supervision Limit Timer Operation (Refer to Bottom of Figure 6.2); Settings and General Operation

6.6
SEL-311C Relay Instruction Manual Date Code 20060320
Close and Reclose Logic
Reclose Supervision Logic

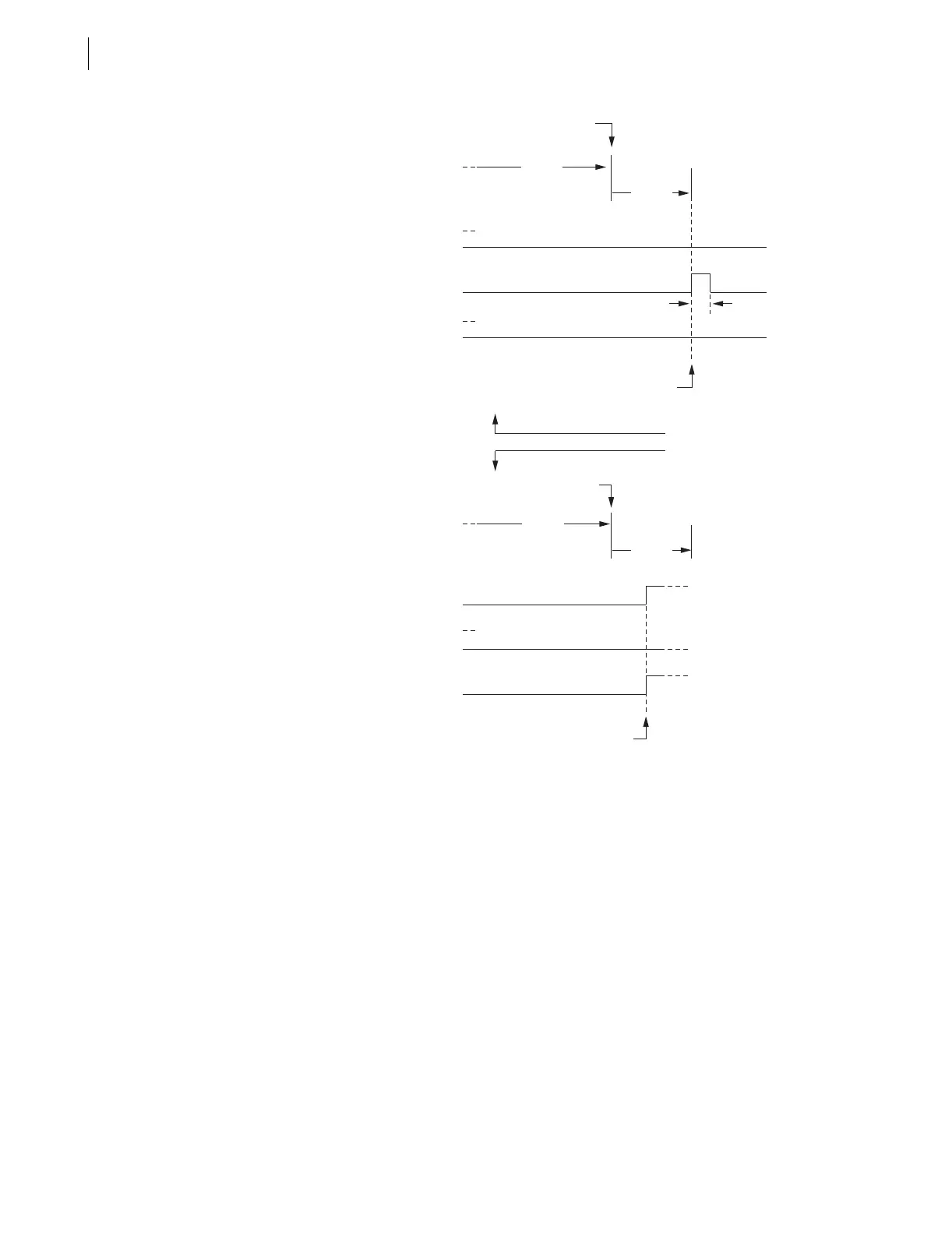

Figure 6.3 Reclose Supervision Limit Timer Operation (Refer to Bottom of
Figure 6.2)
Settings and
General Operation
Figure 6.2 contains the following SELOGIC control equation setting:
79CLS (reclose supervision conditions—checked after reclosing relay
open interval time-out)
and setting:
79CLSD (Reclose Supervision Limit Time)
See Reclosing Relay (See Table 6.2 and Table 6.3) on page SET.12 for setting
ranges.
For Most Applications (Top of Figure 6.2)
For most applications, the Reclose Supervision Limit Time setting should be
set to zero cycles:
79CLSD = 0.00
Open Interval 1
times out
Open Interval 1
times out
Open Interval
Timer
Open Interval
Timer
Reclose Supervision
Limit Timer
Reclose Supervision
Limit Timer
79CLS (Reclose
Supervision Condition)
79CLS (Reclose
Supervision Condition)
RCSF (Reclose
Supervision Failure)
RCSF (Reclose
Supervision Failure)
OUT102 = CLOSE
(Close Output Contact)
OUT102 = CLOSE
(Close Output Contact)
79OI1
79OI1
79CLSD
79CLSD
one processing
interval
79CLS not asserted.
79CLSD times out,
driving the reclosing
relay to lockout.
79CLS asserts before
79CLSD times out.
No Reclosing
Reclosing Proceeds
