Schweitzer Engineering Laboratories SEL-311C - Figure 5.13 SEL-311 C Connections to Communications Equipment for a Three-Terminal Line DCUB Scheme (Setting ECOMM = DCUB2)

To Next Page

To Previous Page

5.24

SEL-311C Relay Instruction Manual Date Code 20060320

Trip and Target Logic

Directional Comparison Unblocking Logic

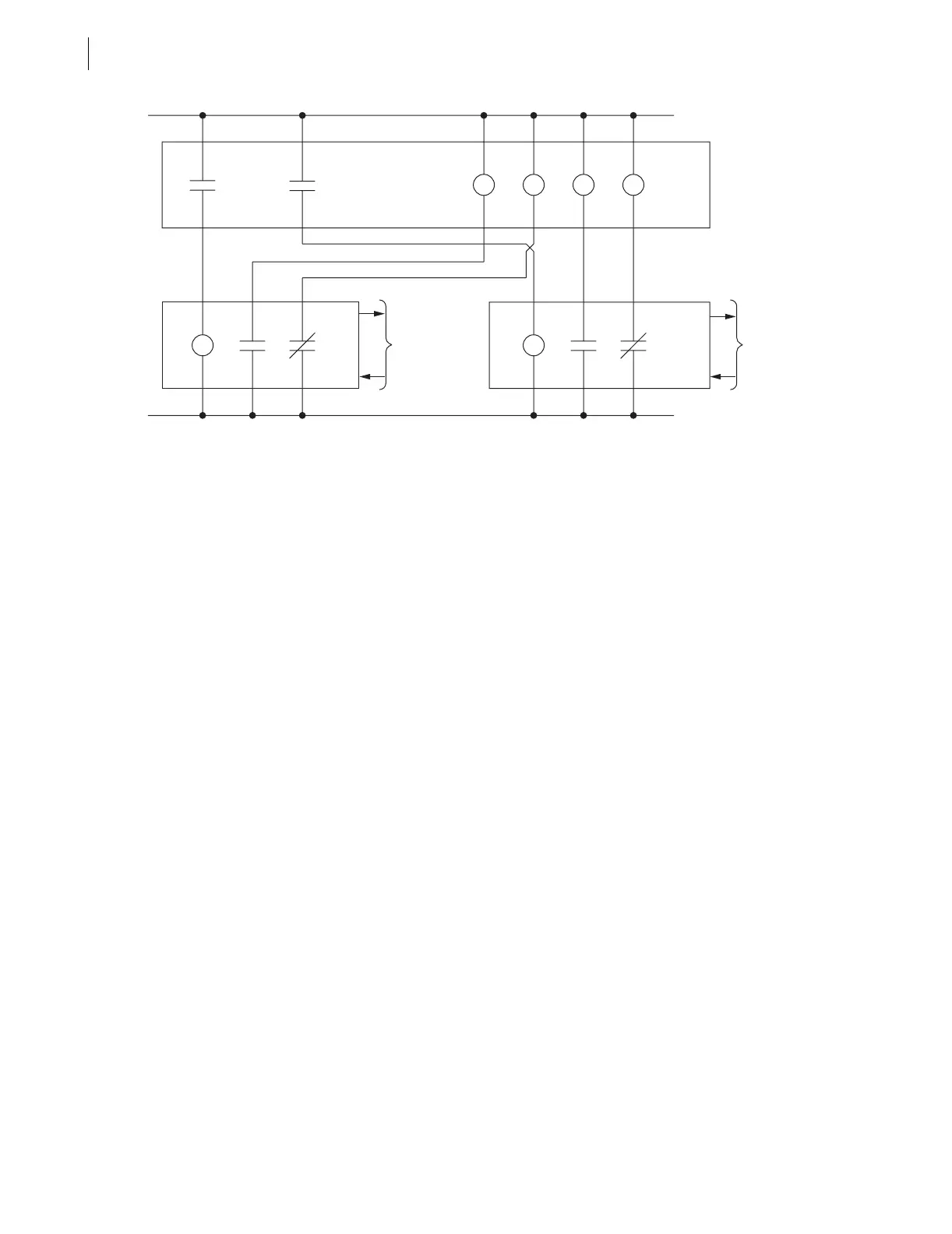

Figure 5.13 SEL-311C Connections to Communications Equipment

for a Three-Terminal Line DCUB Scheme (Setting ECOMM = DCUB2)

IN104 IN105 IN106 IN207

OUT105

TRIP

(RX)

OUT107

SEL-311C

(partial)

to/from

remote

terminal 1

GUARD

(RX)

TRIP

(RX)

GUARD

(RX)

PT1 = IN104

LOG1 = IN105

PT2 = IN106

LOG2 = IN207

OUT105 = KEY

OUT107 = KEY

to/from

remote

terminal 2

(+)

(—)
