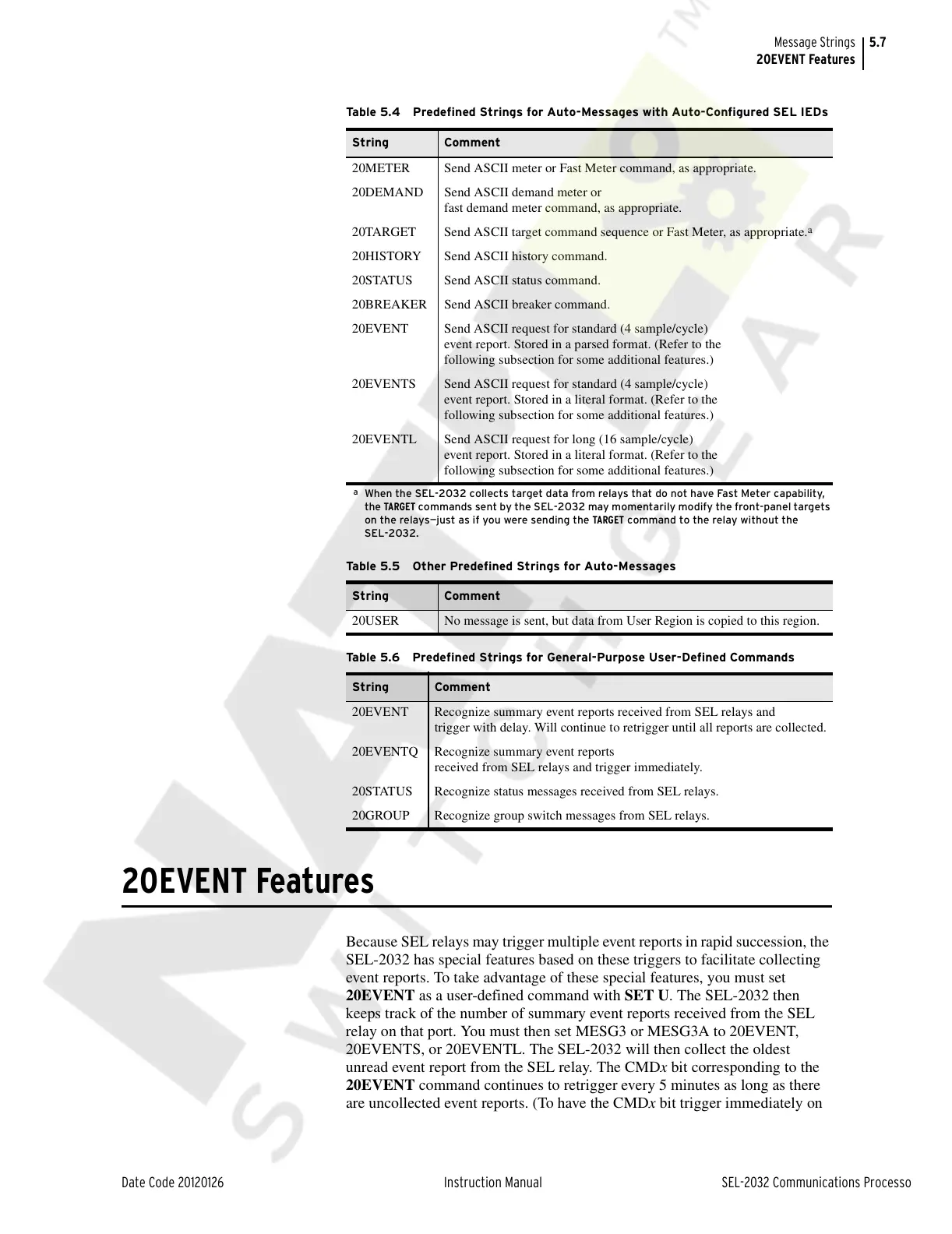

20EVENT Features
20EVENT Features
Because SEL relays may trigger multiple event reports in rapid succession, the
SEL-2032 has special features based on these triggers to facilitate collecting
event reports. To take advantage of these special features, you must set
20EVENT as a user-defined command with SET U. The SEL-2032 then
keeps track of the number of summary event reports received from the SEL
relay on that port. You must then set MESG3 or MESG3A to 20EVENT,
20EVENTS, or 20EVENTL. The SEL-2032 will then collect the oldest
unread event report from the SEL relay. The CMDx bit corresponding to the
20EVENT command continues to retrigger every 5 minutes as long as there
are uncollected event reports. (To have the CMDx bit trigger immediately on
Table 5.4 Predefined Strings for Auto-Messages with Auto-Configured SEL IEDs
String Comment
20METER Send ASCII meter or Fast Meter command, as appropriate.
20DEMAND Send ASCII demand meter or
fast demand meter command, as appropriate.
20TARGET Send ASCII target command sequence or Fast Meter, as appropriate.
a
a
When the SEL-2032 collects target data from relays that do not have Fast Meter capability,
the TARGET commands sent by the SEL-2032 may momentarily modify the front-panel targets
on the relays—just as if you were sending the TARGET command to the relay without the
SEL-2032.
20HISTORY Send ASCII history command.
20STATUS Send ASCII status command.
20BREAKER Send ASCII breaker command.
20EVENT Send ASCII request for standard (4 sample/cycle)
event report. Stored in a parsed format. (Refer to the
following subsection for some additional features.)
20EVENTS Send ASCII request for standard (4 sample/cycle)
event report. Stored in a literal format. (Refer to the
following subsection for some additional features.)
20EVENTL Send ASCII request for long (16 sample/cycle)
event report. Stored in a literal format. (Refer to the
following subsection for some additional features.)
Table 5.5 Other Predefined Strings for Auto-Messages
String Comment
20USER No message is sent, but data from User Region is copied to this region.
Table 5.6 Predefined Strings for General-Purpose User-Defined Commands
String Comment
20EVENT Recognize summary event reports received from SEL relays and
trigger with delay. Will continue to retrigger until all reports are collected.
20EVENTQ Recognize summary event reports
received from SEL relays and trigger immediately.
20STATUS Recognize status messages received from SEL relays.
20GROUP Recognize group switch messages from SEL relays.
