9.38
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Serial Distributed Network Protocol (Serial DNP3)
In Table 9.22, the indices for Port 2 begin at 44 and proceed to 79. The indices
continue to the maximum index of 655. If your DNP3 master does not support
high control point index numbers, you can reduce the available points. The
example indices in Table 9 .23 correspond to DNP_CMDNUM = 0,
DNP_SBONUM = 0, DNPBRNUM = 1, and DNPRBNUM = 4.

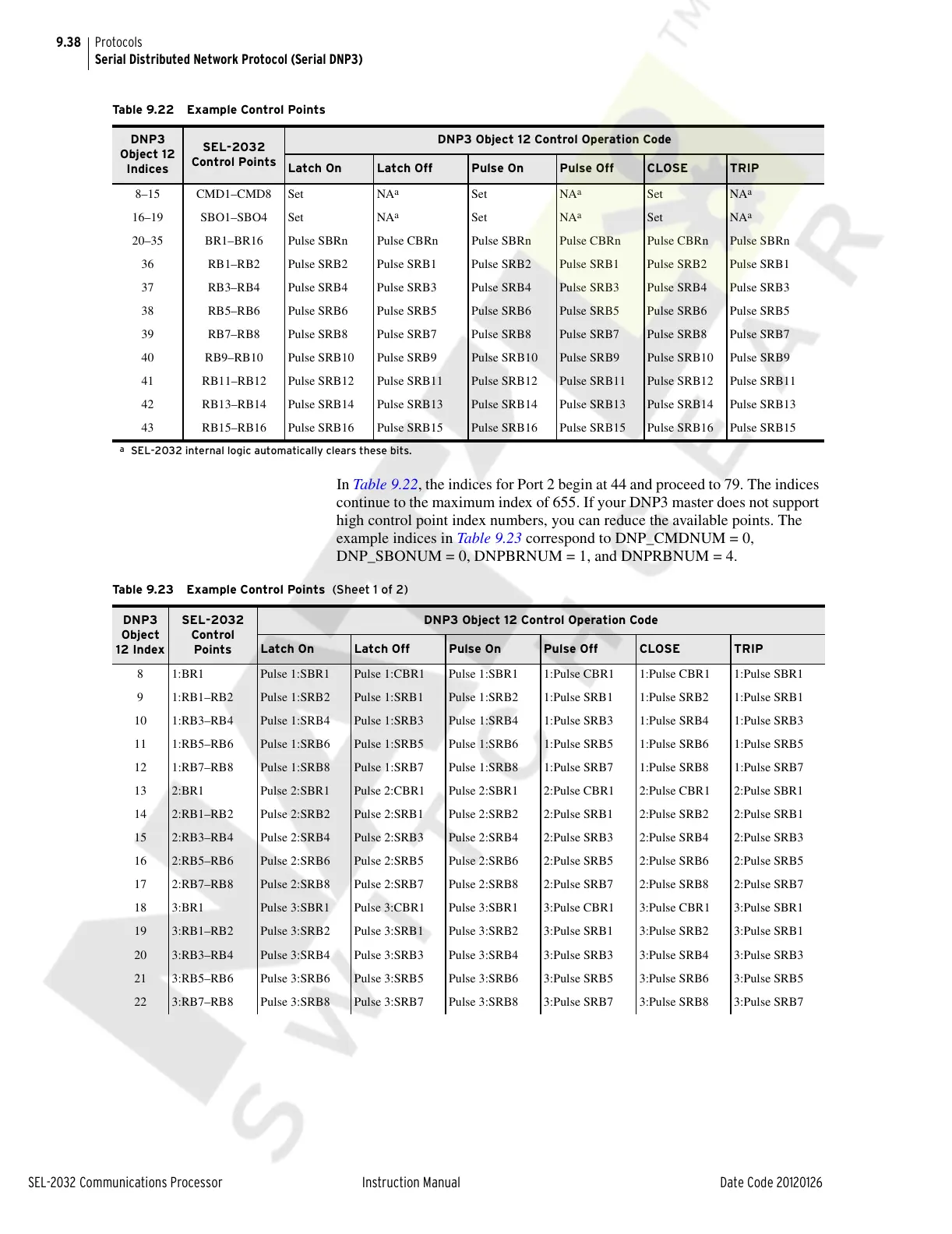

Table 9.22 Example Control Points
DNP3
Object 12
Indices
SEL-2032
Control Points
DNP3 Object 12 Control Operation Code
Latch On Latch Off Pulse On Pulse Off CLOSE TRIP
8–15 CMD1–CMD8 Set NA
a
a
SEL-2032 internal logic automatically clears these bits.
Set NA
a
Set NA
a
16–19 SBO1–SBO4 Set NA
a
Set NA
a
Set NA
a
20–35 BR1–BR16 Pulse SBRn Pulse CBRn Pulse SBRn Pulse CBRn Pulse CBRn Pulse SBRn
36 RB1–RB2 Pulse SRB2 Pulse SRB1 Pulse SRB2 Pulse SRB1 Pulse SRB2 Pulse SRB1
37 RB3–RB4 Pulse SRB4 Pulse SRB3 Pulse SRB4 Pulse SRB3 Pulse SRB4 Pulse SRB3
38 RB5–RB6 Pulse SRB6 Pulse SRB5 Pulse SRB6 Pulse SRB5 Pulse SRB6 Pulse SRB5
39 RB7–RB8 Pulse SRB8 Pulse SRB7 Pulse SRB8 Pulse SRB7 Pulse SRB8 Pulse SRB7
40 RB9–RB10 Pulse SRB10 Pulse SRB9 Pulse SRB10 Pulse SRB9 Pulse SRB10 Pulse SRB9
41 RB11–RB12 Pulse SRB12 Pulse SRB11 Pulse SRB12 Pulse SRB11 Pulse SRB12 Pulse SRB11
42 RB13–RB14 Pulse SRB14 Pulse SRB13 Pulse SRB14 Pulse SRB13 Pulse SRB14 Pulse SRB13
43 RB15–RB16 Pulse SRB16 Pulse SRB15 Pulse SRB16 Pulse SRB15 Pulse SRB16 Pulse SRB15
Table 9.23 Example Control Points (Sheet 1 of 2)
DNP3
Object
12 Index
SEL-2032
Control
Points
DNP3 Object 12 Control Operation Code
Latch On Latch Off Pulse On Pulse Off CLOSE TRIP
8 1:BR1 Pulse 1:SBR1 Pulse 1:CBR1 Pulse 1:SBR1 1:Pulse CBR1 1:Pulse CBR1 1:Pulse SBR1
9 1:RB1–RB2 Pulse 1:SRB2 Pulse 1:SRB1 Pulse 1:SRB2 1:Pulse SRB1 1:Pulse SRB2 1:Pulse SRB1
10 1:RB3–RB4 Pulse 1:SRB4 Pulse 1:SRB3 Pulse 1:SRB4 1:Pulse SRB3 1:Pulse SRB4 1:Pulse SRB3
11 1:RB5–RB6 Pulse 1:SRB6 Pulse 1:SRB5 Pulse 1:SRB6 1:Pulse SRB5 1:Pulse SRB6 1:Pulse SRB5
12 1:RB7–RB8 Pulse 1:SRB8 Pulse 1:SRB7 Pulse 1:SRB8 1:Pulse SRB7 1:Pulse SRB8 1:Pulse SRB7
13 2:BR1 Pulse 2:SBR1 Pulse 2:CBR1 Pulse 2:SBR1 2:Pulse CBR1 2:Pulse CBR1 2:Pulse SBR1
14 2:RB1–RB2 Pulse 2:SRB2 Pulse 2:SRB1 Pulse 2:SRB2 2:Pulse SRB1 2:Pulse SRB2 2:Pulse SRB1
15 2:RB3–RB4 Pulse 2:SRB4 Pulse 2:SRB3 Pulse 2:SRB4 2:Pulse SRB3 2:Pulse SRB4 2:Pulse SRB3
16 2:RB5–RB6 Pulse 2:SRB6 Pulse 2:SRB5 Pulse 2:SRB6 2:Pulse SRB5 2:Pulse SRB6 2:Pulse SRB5
17 2:RB7–RB8 Pulse 2:SRB8 Pulse 2:SRB7 Pulse 2:SRB8 2:Pulse SRB7 2:Pulse SRB8 2:Pulse SRB7
18 3:BR1 Pulse 3:SBR1 Pulse 3:CBR1 Pulse 3:SBR1 3:Pulse CBR1 3:Pulse CBR1 3:Pulse SBR1
19 3:RB1–RB2 Pulse 3:SRB2 Pulse 3:SRB1 Pulse 3:SRB2 3:Pulse SRB1 3:Pulse SRB2 3:Pulse SRB1
20 3:RB3–RB4 Pulse 3:SRB4 Pulse 3:SRB3 Pulse 3:SRB4 3:Pulse SRB3 3:Pulse SRB4 3:Pulse SRB3
21 3:RB5–RB6 Pulse 3:SRB6 Pulse 3:SRB5 Pulse 3:SRB6 3:Pulse SRB5 3:Pulse SRB6 3:Pulse SRB5
22 3:RB7–RB8 Pulse 3:SRB8 Pulse 3:SRB7 Pulse 3:SRB8 3:Pulse SRB7 3:Pulse SRB8 3:Pulse SRB7
