9.62

SEL-2032 Communications Processor Instruction Manual Date Code 20120126

Protocols

Distributed Network Protocol 3.0 (DNP3) LAN/WAN

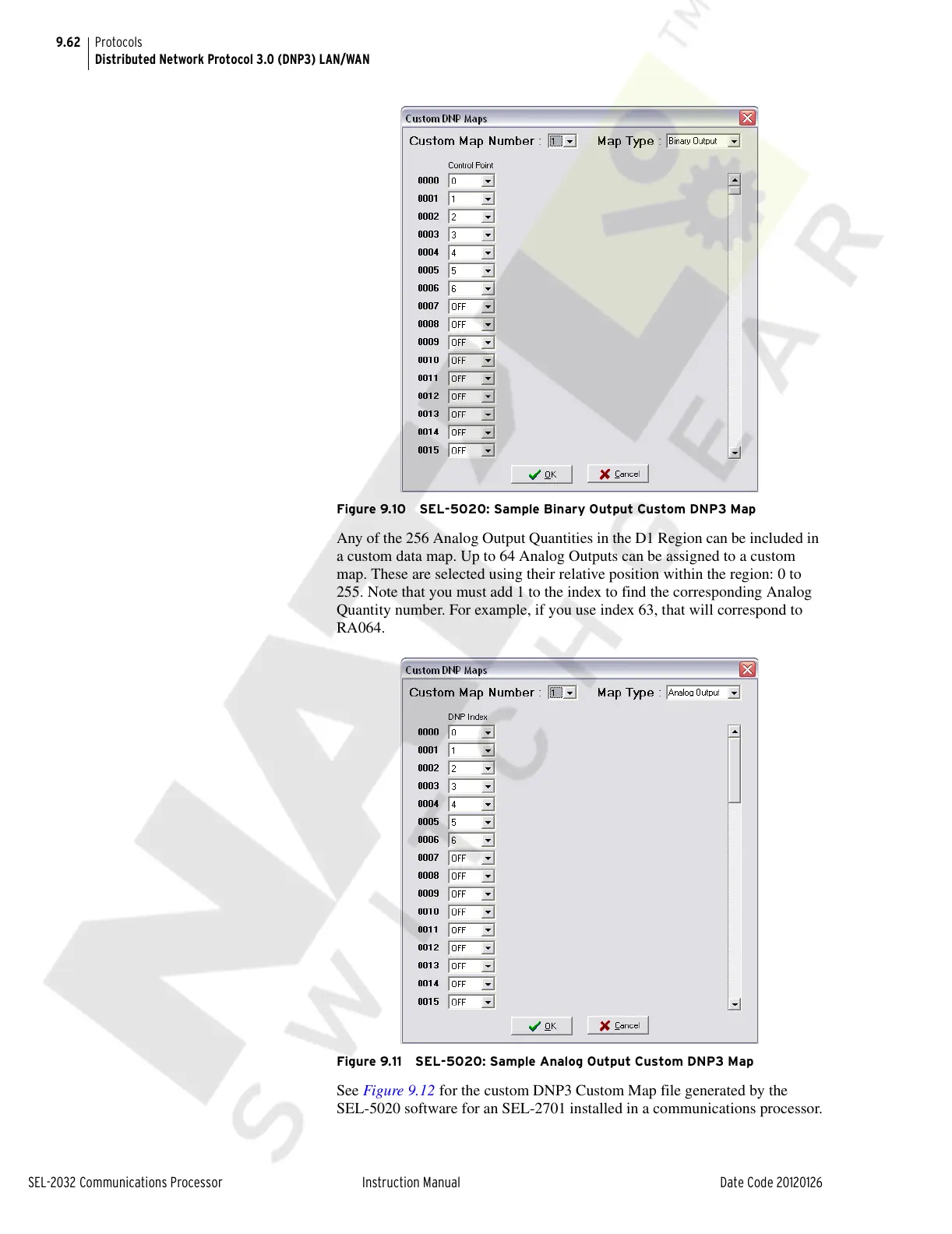

Figure 9.10 SEL-5020: Sample Binary Output Custom DNP3 Map

Any of the 256 Analog Output Quantities in the D1 Region can be included in

a custom data map. Up to 64 Analog Outputs can be assigned to a custom

map. These are selected using their relative position within the region: 0 to

255. Note that you must add 1 to the index to find the corresponding Analog

Quantity number. For example, if you use index 63, that will correspond to

RA064.

Figure 9.11 SEL-5020: Sample Analog Output Custom DNP3 Map

See Figure 9.12 for the custom DNP3 Custom Map file generated by the

SEL-5020 software for an SEL-2701 installed in a communications processor.
