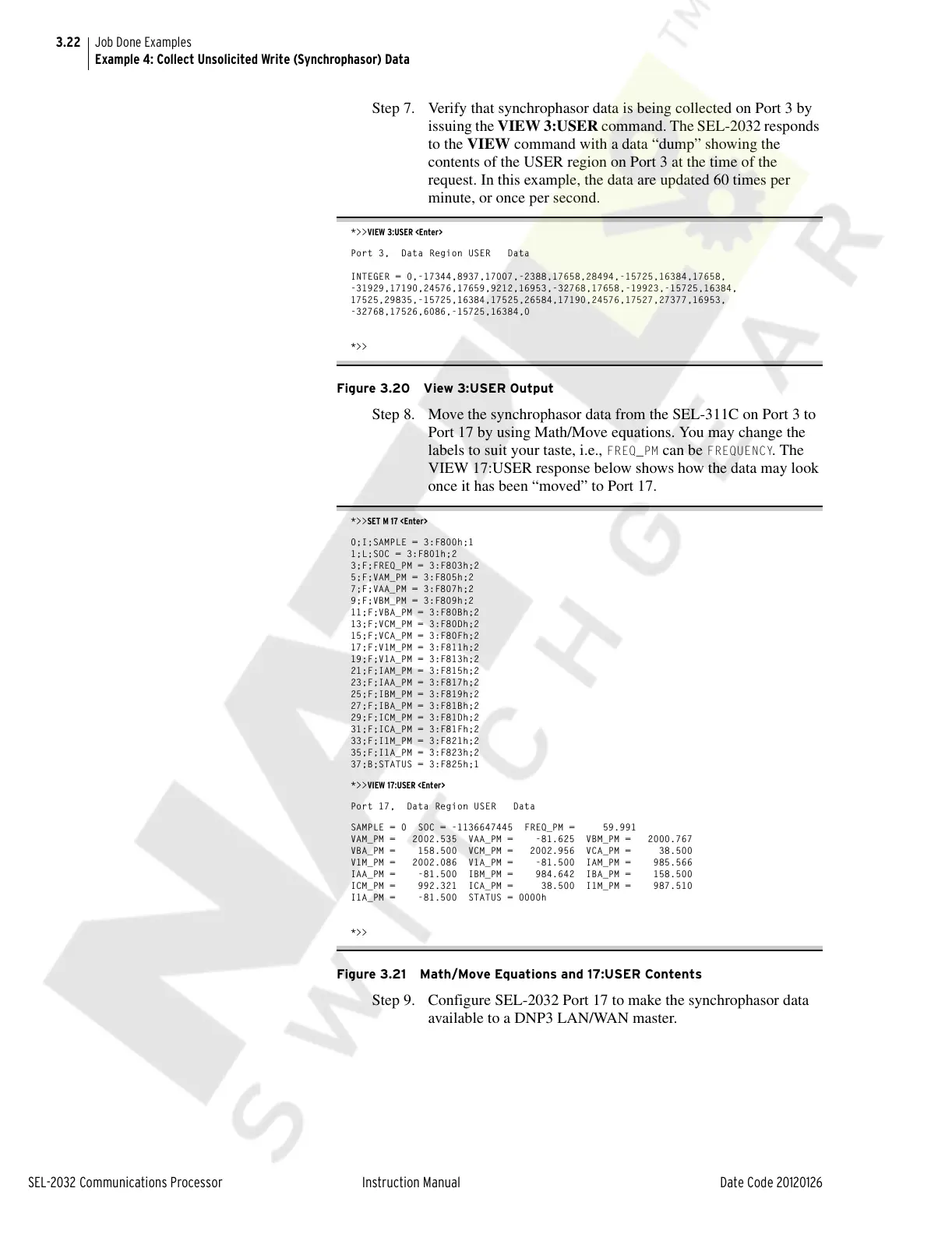

Example 4: Collect Unsolicited Write (Synchrophasor) Data
Step 7. Verify that synchrophasor data is being collected on Port 3 by
issuing the VIEW 3:USER command. The SEL-2032 responds
to the VIEW command with a data “dump” showing the
contents of the USER region on Port 3 at the time of the
request. In this example, the data are updated 60 times per
minute, or once per second.
*>>VIEW 3:USER <Enter>
Port 3, Data Region USER Data
INTEGER = 0,-17344,8937,17007,-2388,17658,28494,-15725,16384,17658,
-31929,17190,24576,17659,9212,16953,-32768,17658,-19923,-15725,16384,
17525,29835,-15725,16384,17525,26584,17190,24576,17527,27377,16953,
-32768,17526,6086,-15725,16384,0
*>>
Figure 3.20 View 3:USER Output
Step 8. Move the synchrophasor data from the SEL-311C on Port 3 to
Port 17 by using Math/Move equations. You may change the
labels to suit your taste, i.e.,
FREQ_PM can be FREQUENCY. The
VIEW 17:USER response below shows how the data may look
once it has been “moved” to Port 17.
*>>SET M 17 <Enter>
0;I;SAMPLE = 3:F800h;1
1;L;SOC = 3:F801h;2
3;F;FREQ_PM = 3:F803h;2
5;F;VAM_PM = 3:F805h;2
7;F;VAA_PM = 3:F807h;2
9;F;VBM_PM = 3:F809h;2
11;F;VBA_PM = 3:F80Bh;2
13;F;VCM_PM = 3:F80Dh;2
15;F;VCA_PM = 3:F80Fh;2
17;F;V1M_PM = 3:F811h;2
19;F;V1A_PM = 3:F813h;2
21;F;IAM_PM = 3:F815h;2
23;F;IAA_PM = 3:F817h;2
25;F;IBM_PM = 3:F819h;2
27;F;IBA_PM = 3:F81Bh;2
29;F;ICM_PM = 3:F81Dh;2
31;F;ICA_PM = 3:F81Fh;2
33;F;I1M_PM = 3:F821h;2
35;F;I1A_PM = 3:F823h;2
37;B;STATUS = 3:F825h;1
*>>VIEW 17:USER <Enter>
Port 17, Data Region USER Data
SAMPLE = 0 SOC = -1136647445 FREQ_PM = 59.991
VAM_PM = 2002.535 VAA_PM = -81.625 VBM_PM = 2000.767
VBA_PM = 158.500 VCM_PM = 2002.956 VCA_PM = 38.500
V1M_PM = 2002.086 V1A_PM = -81.500 IAM_PM = 985.566
IAA_PM = -81.500 IBM_PM = 984.642 IBA_PM = 158.500
ICM_PM = 992.321 ICA_PM = 38.500 I1M_PM = 987.510
I1A_PM = -81.500 STATUS = 0000h
*>>
Figure 3.21 Math/Move Equations and 17:USER Contents
Step 9. Configure SEL-2032 Port 17 to make the synchrophasor data
available to a DNP3 LAN/WAN master.
