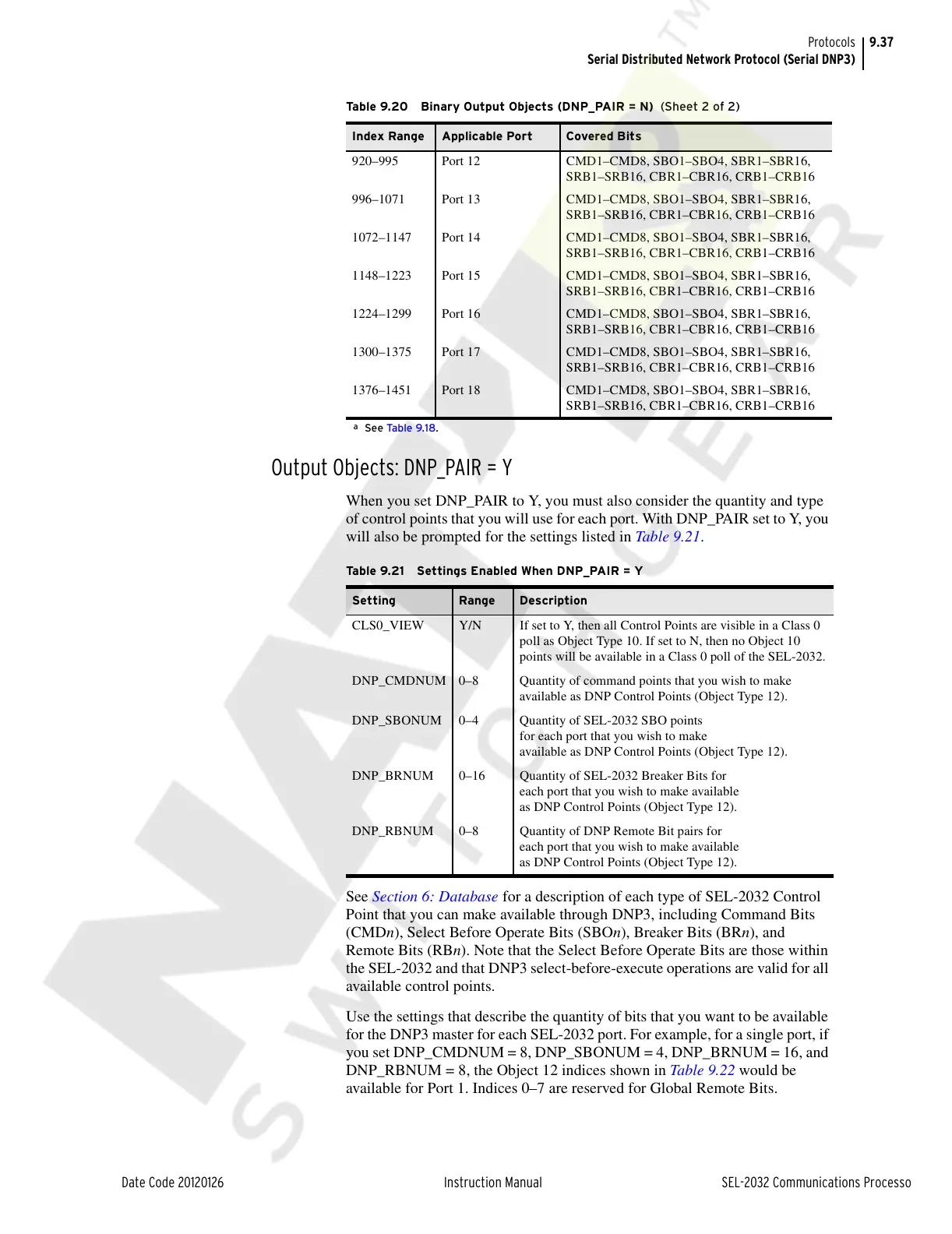

9.37
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Protocols
Serial Distributed Network Protocol (Serial DNP3)
Output Objects: DNP_PAIR = Y
When you set DNP_PAIR to Y, you must also consider the quantity and type
of control points that you will use for each port. With DNP_PAIR set to Y, you
will also be prompted for the settings listed in Table 9.21.
See Section 6: Database for a description of each type of SEL-2032 Control
Point that you can make available through DNP3, including Command Bits
(CMDn), Select Before Operate Bits (SBOn), Breaker Bits (BRn), and
Remote Bits (RBn). Note that the Select Before Operate Bits are those within
the SEL-2032 and that DNP3 select-before-execute operations are valid for all
available control points.
Use the settings that describe the quantity of bits that you want to be available
for the DNP3 master for each SEL-2032 port. For example, for a single port, if
you set DNP_CMDNUM = 8, DNP_SBONUM = 4, DNP_BRNUM = 16, and
DNP_RBNUM = 8, the Object 12 indices shown in Table 9.22 would be
available for Port 1. Indices 0–7 are reserved for Global Remote Bits.
920–995 Port 12 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
996–1071 Port 13 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
1072–1147 Port 14 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
1148–1223 Port 15 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
1224–1299 Port 16 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
1300–1375 Port 17 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
1376–1451 Port 18 CMD1–CMD8, SBO1–SBO4, SBR1–SBR16,
SRB1–SRB16, CBR1–CBR16, CRB1–CRB16
a
See Ta b le 9. 1 8.
Table 9.20 Binary Output Objects (DNP_PAIR = N) (Sheet 2 of 2)
Index Range Applicable Port Covered Bits
Table 9.21 Settings Enabled When DNP_PAIR = Y
Setting Range Description
CLS0_VIEW Y/N If set to Y, then all Control Points are visible in a Class 0
poll as Object Type 10. If set to N, then no Object 10
points will be available in a Class 0 poll of the SEL-2032.
DNP_CMDNUM 0–8 Quantity of command points that you wish to make
available as DNP Control Points (Object Type 12).
DNP_SBONUM 0–4 Quantity of SEL-2032 SBO points
for each port that you wish to make
available as DNP Control Points (Object Type 12).
DNP_BRNUM 0–16 Quantity of SEL-2032 Breaker Bits for
each port that you wish to make available
as DNP Control Points (Object Type 12).
DNP_RBNUM 0–8 Quantity of DNP Remote Bit pairs for
each port that you wish to make available
as DNP Control Points (Object Type 12).
