2.21
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Installation
Getting Started
*>>MAP2:METER <Enter>
Port 2, Data Region METER Map
Data Item Starting Address Type
_YEAR 2000h int
DAY_OF_YEAR 2001h int
TIME(ms) 2002h int[2]
MONTH 2004h char
DATE 2005h char
YEAR 2006h char
HOUR 2007h char
MIN 2008h char
SECONDS 2009h char
MSEC 200Ah int
IA 200Bh float[2]
IB 200Fh float[2]
IC 2013h float[2]
IN 2017h float[2]
VA 201Bh float[2]
VB 201Fh float[2]
VC 2023h float[2]
VS 2027h float[2]
FREQ 202Bh float[2]
VBAT 202Fh float[2]
IAB(A) 2033h float[2]
IBC(A) 2037h float[2]
ICA(A) 203Bh float[2]
VAB(V) 203Fh float[2]
VBC(V) 2043h float[2]
VCA(V) 2047h float[2]
PA(MW) 204Bh float
QA(MVAR) 204Dh float
PB(MW) 204Fh float
QB(MVAR) 2051h float
PC(MW) 2053h float
QC(MVAR) 2055h float
P(MW) 2057h float
Q(MVAR) 2059h float
I0(A) 205Bh float[2]
I1(A) 205Fh float[2]
I2(A) 2063h float[2]
V0(V) 2067h float[2]
V1(V) 206Bh float[2]
V2(V) 206Fh float[2]
*>>

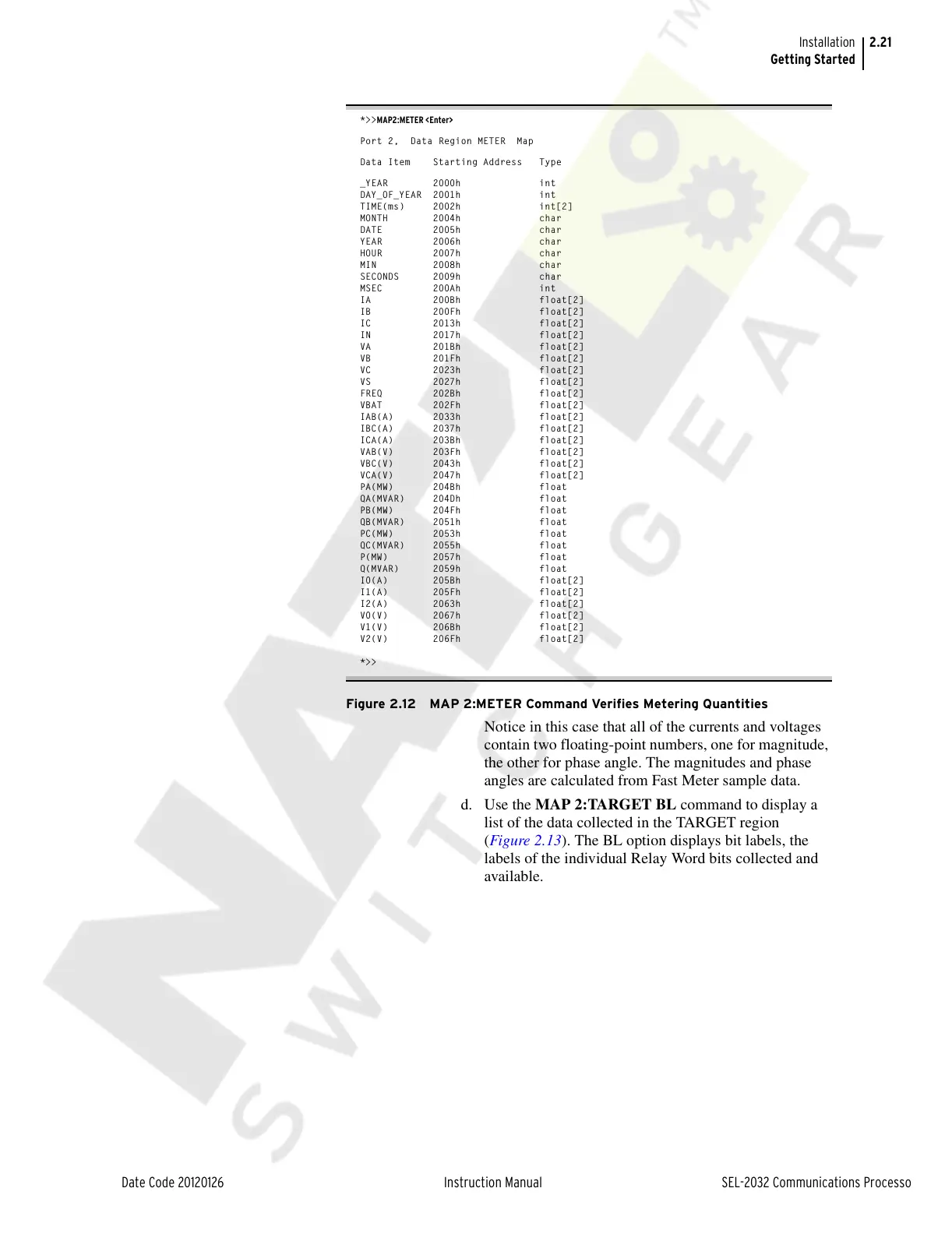

Figure 2.12 MAP 2:METER Command Verifies Metering Quantities
Notice in this case that all of the currents and voltages
contain two floating-point numbers, one for magnitude,
the other for phase angle. The magnitudes and phase
angles are calculated from Fast Meter sample data.
d. Use the MAP 2:TARGET BL command to display a
list of the data collected in the TARGET region
(Figure 2.13). The BL option displays bit labels, the
labels of the individual Relay Word bits collected and
available.
