Example 3: Collect SEL Relay Status and Measurements
*>>MAP 2 <Enter>
Port 2 Database Assignments
Region Data Type # Records
GLOBAL --
LOCAL --
BUF --
D1 B METER
D2 B TARGET
D3 Unused
D4 Unused
D5 Unused
D6 Unused
D7 Unused
D8 Unused
A1 Unused
A2 Unused
A3 Unused
USER Unused
*>>

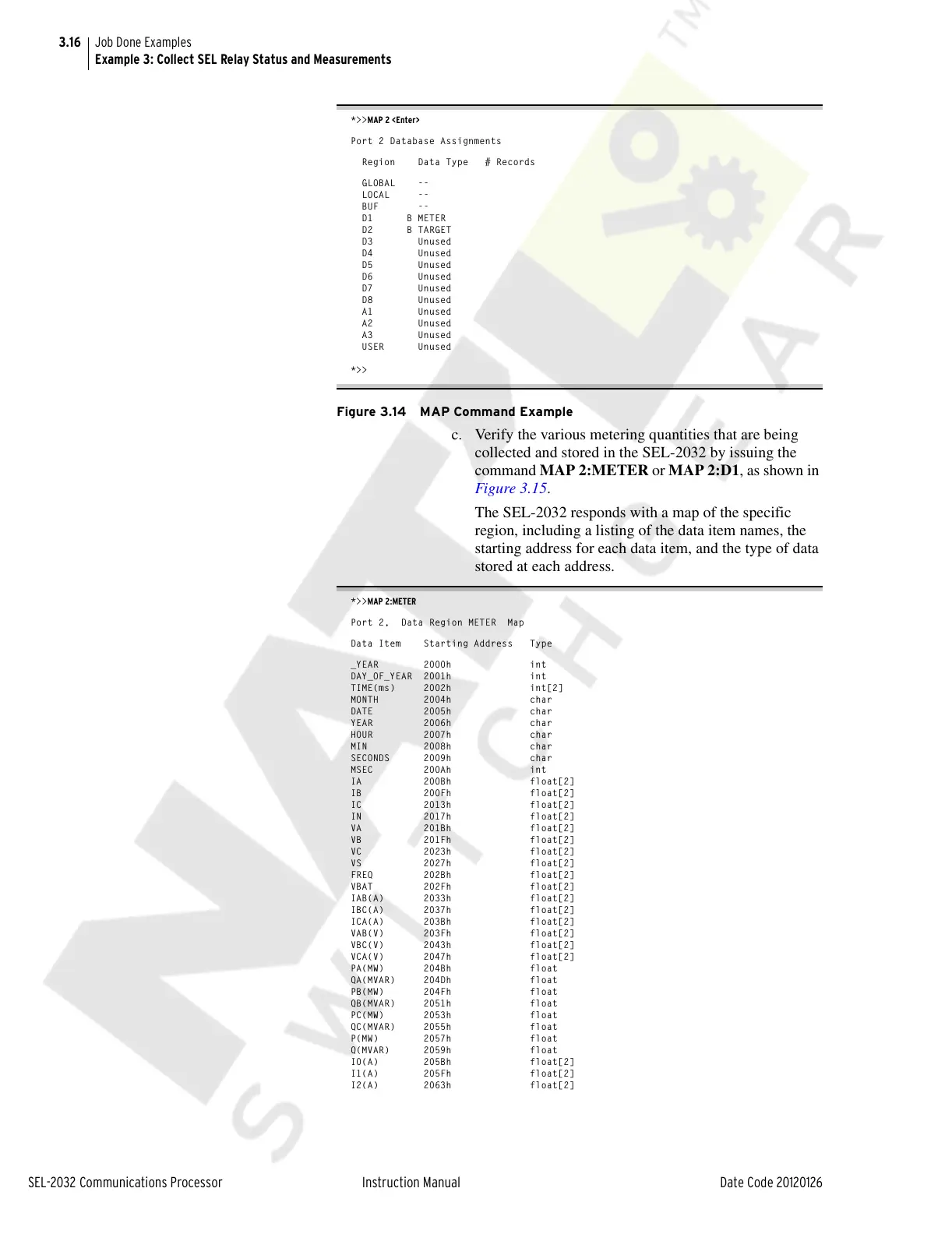

Figure 3.14 MAP Command Example
c. Verify the various metering quantities that are being
collected and stored in the SEL-2032 by issuing the
command MAP 2:METER or MAP 2:D1, as shown in
Figure 3.15.
The SEL-2032 responds with a map of the specific
region, including a listing of the data item names, the
starting address for each data item, and the type of data
stored at each address.
*>>MAP 2:METER
Port 2, Data Region METER Map
Data Item Starting Address Type
_YEAR 2000h int
DAY_OF_YEAR 2001h int
TIME(ms) 2002h int[2]
MONTH 2004h char
DATE 2005h char
YEAR 2006h char
HOUR 2007h char
MIN 2008h char
SECONDS 2009h char
MSEC 200Ah int
IA 200Bh float[2]
IB 200Fh float[2]
IC 2013h float[2]
IN 2017h float[2]
VA 201Bh float[2]
VB 201Fh float[2]
VC 2023h float[2]
VS 2027h float[2]
FREQ 202Bh float[2]
VBAT 202Fh float[2]
IAB(A) 2033h float[2]
IBC(A) 2037h float[2]
ICA(A) 203Bh float[2]
VAB(V) 203Fh float[2]
VBC(V) 2043h float[2]
VCA(V) 2047h float[2]
PA(MW) 204Bh float
QA(MVAR) 204Dh float
PB(MW) 204Fh float
QB(MVAR) 2051h float
PC(MW) 2053h float
QC(MVAR) 2055h float
P(MW) 2057h float
Q(MVAR) 2059h float
I0(A) 205Bh float[2]
I1(A) 205Fh float[2]
I2(A) 2063h float[2]
