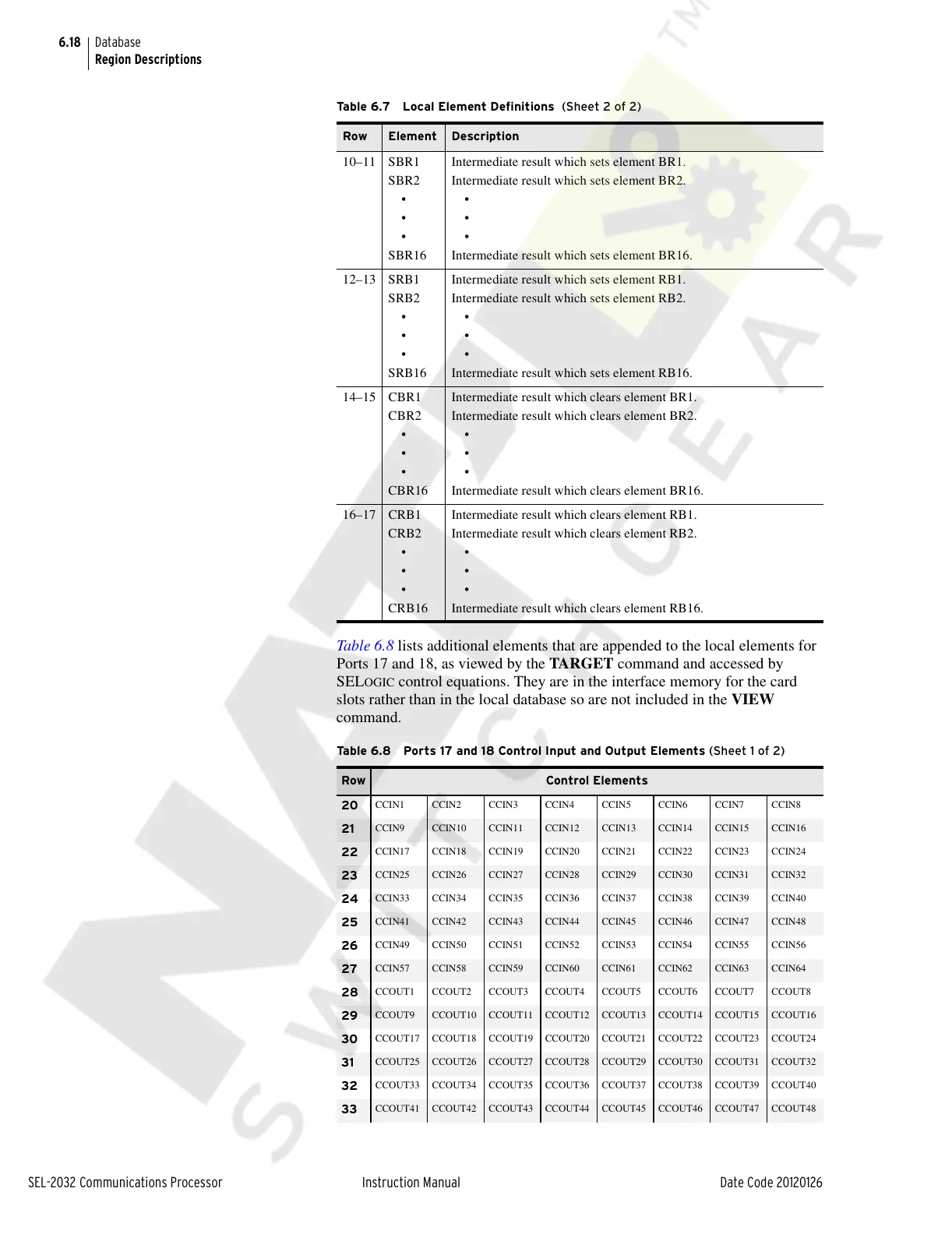

Schweitzer Engineering SEL-2032 - Table 6.8 Ports 17 and 18 Control Input and Output Elements

6.18
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Database
Region Descriptions
Table 6.8 lists additional elements that are appended to the local elements for
Ports 17 and 18, as viewed by the TAR GET command and accessed by
SEL
OGIC control equations. They are in the interface memory for the card
slots rather than in the local database so are not included in the VIEW
command.
10–11 SBR1
SBR2
•
•
•
SBR16
Intermediate result which sets element BR1.
Intermediate result which sets element BR2.
•
•
•
Intermediate result which sets element BR16.
12–13 SRB1
SRB2
•
•
•
SRB16
Intermediate result which sets element RB1.
Intermediate result which sets element RB2.
•
•
•
Intermediate result which sets element RB16.
14–15 CBR1
CBR2
•
•
•
CBR16
Intermediate result which clears element BR1.
Intermediate result which clears element BR2.
•
•
•
Intermediate result which clears element BR16.
16–17 CRB1
CRB2
•
•
•
CRB16
Intermediate result which clears element RB1.
Intermediate result which clears element RB2.
•
•
•
Intermediate result which clears element RB16.
Table 6.8 Ports 17 and 18 Control Input and Output Elements (Sheet 1 of 2)
Row Control Elements
20
CCIN1 CCIN2 CCIN3 CCIN4 CCIN5 CCIN6 CCIN7 CCIN8
21
CCIN9 CCIN10 CCIN11 CCIN12 CCIN13 CCIN14 CCIN15 CCIN16
22
CCIN17 CCIN18 CCIN19 CCIN20 CCIN21 CCIN22 CCIN23 CCIN24
23
CCIN25 CCIN26 CCIN27 CCIN28 CCIN29 CCIN30 CCIN31 CCIN32
24
CCIN33 CCIN34 CCIN35 CCIN36 CCIN37 CCIN38 CCIN39 CCIN40
25
CCIN41 CCIN42 CCIN43 CCIN44 CCIN45 CCIN46 CCIN47 CCIN48
26
CCIN49 CCIN50 CCIN51 CCIN52 CCIN53 CCIN54 CCIN55 CCIN56
27
CCIN57 CCIN58 CCIN59 CCIN60 CCIN61 CCIN62 CCIN63 CCIN64
28
CCOUT1 CCOUT2 CCOUT3 CCOUT4 CCOUT5 CCOUT6 CCOUT7 CCOUT8
29
CCOUT9 CCOUT10 CCOUT11 CCOUT12 CCOUT13 CCOUT14 CCOUT15 CCOUT16
30
CCOUT17 CCOUT18 CCOUT19 CCOUT20 CCOUT21 CCOUT22 CCOUT23 CCOUT24
31
CCOUT25 CCOUT26 CCOUT27 CCOUT28 CCOUT29 CCOUT30 CCOUT31 CCOUT32
32
CCOUT33 CCOUT34 CCOUT35 CCOUT36 CCOUT37 CCOUT38 CCOUT39 CCOUT40
33
CCOUT41 CCOUT42 CCOUT43 CCOUT44 CCOUT45 CCOUT46 CCOUT47 CCOUT48
Table 6.7 Local Element Definitions (Sheet 2 of 2)
Row Element Description
