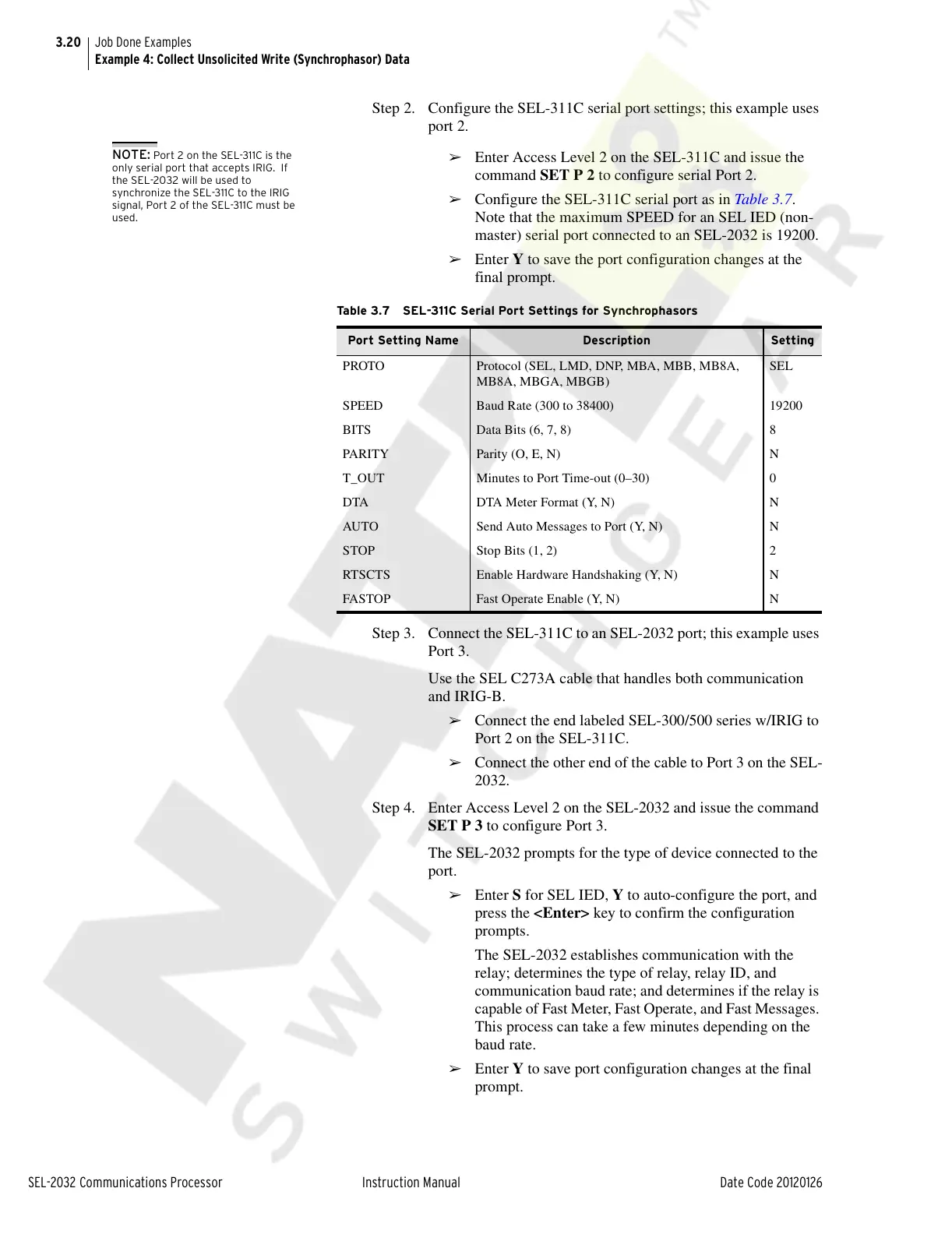

3.20
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Job Done Examples
Example 4: Collect Unsolicited Write (Synchrophasor) Data
Step 2. Configure the SEL-311C serial port settings; this example uses
port 2.
NOTE: Port 2 on the SEL-311C is the
only serial port that accepts IRIG. If
the SEL-2032 will be used to
synchronize the SEL-311C to the IRIG
signal, Port 2 of the SEL-311C must be
used.
➢ Enter Access Level 2 on the SEL-311C and issue the
command SET P 2 to configure serial Port 2.
➢ Configure the SEL-311C serial port as in Table 3.7.
Note that the maximum SPEED for an SEL IED (non-
master) serial port connected to an SEL-2032 is 19200.
➢ Enter Y to save the port configuration changes at the
final prompt.
Step 3. Connect the SEL-311C to an SEL-2032 port; this example uses
Port 3.
Use the SEL C273A cable that handles both communication
and IRIG-B.
➢ Connect the end labeled SEL-300/500 series w/IRIG to
Port 2 on the SEL-311C.
➢ Connect the other end of the cable to Port 3 on the SEL-
2032.
Step 4. Enter Access Level 2 on the SEL-2032 and issue the command
SET P 3 to configure Port 3.
The SEL-2032 prompts for the type of device connected to the
port.
➢ Enter S for SEL IED, Y to auto-configure the port, and
press the <Enter> key to confirm the configuration
prompts.
The SEL-2032 establishes communication with the
relay; determines the type of relay, relay ID, and
communication baud rate; and determines if the relay is
capable of Fast Meter, Fast Operate, and Fast Messages.
This process can take a few minutes depending on the
baud rate.
➢ Enter Y to save port configuration changes at the final
prompt.
Table 3.7 SEL-311C Serial Port Settings for Synchrophasors
Port Setting Name Description Setting
PROTO Protocol (SEL, LMD, DNP, MBA, MBB, MB8A,
MB8A, MBGA, MBGB)
SEL
SPEED Baud Rate (300 to 38400) 19200
BITS Data Bits (6, 7, 8) 8
PARITY Parity (O, E, N) N
T_OUT Minutes to Port Time-out (0–30) 0
DTA DTA Meter Format (Y, N) N
AUTO Send Auto Messages to Port (Y, N) N
STOP Stop Bits (1, 2) 2
RTSCTS Enable Hardware Handshaking (Y, N) N
FASTOP Fast Operate Enable (Y, N) N
