Distributed Network Protocol 3.0 (DNP3) LAN/WAN
[INFO]
RELAYTYPE=SEL-2701
FID=SEL-2701-X169-V2-Z002001-D20050922
BFID=SLBT-2701-X046-V0-Z000000-D20050824
PARTNO=27011H4X
[D1]
AIM0000,"3:200Bh,F"
AIC0000,"DFLT"
AIS0000,"DFLT"
AID0000,"DFLT"
AIM0001,"3:200Fh,F"
AIC0001,"DFTL"
AIS0001,"DFTL"
AID0001,"DFTL"
AIM0002,"3:2013h,F"
AIC0002,"DFTL"
AIS0002,"DFTL"
AID0002,"DFTL"
AIM0003,"3:2017h,F"
AIC0003,"DFLT"
AIS0003,"DFTL"
AID0003,"DFLT"
AIM0004,"3:201Bh,F"
AIC0004,"DFLT"
AIS0004,"DFLT"
AID0004,"DFLT"
AIM0005,"3:201Fh,F"
AIC0005,"DFLT"
AIS0005,"DFLT"
AID0005,"DFLT"
AIM0006,"3:2032h,F"
AIC0006,"DFLT"
AIS0006,"DFTL"
AID0006,"DFTL"
AIM0007,"3:2027h,F"
AIC0007,"DFLT"
AIS0007,"DFLT"
AID0007,"DFLT"
AIM0008,""
AIC0008,"DFLT"
AIS0008,"DFLT"
AID0008,"DFLT"
…
AIM0511,""
AIC0511,"DFLT"
AIS0511,"DFLT"
AID0511,"DFLT"
BIM0000,"3:281Dh:0"
BIC0000,"DFLT"
BIM0001,"3:281Dh:1"
BIC0001,"DFLT"
BIM0002,"3:281Dh:2"
BIC0002,"DFLT"
BIM0003,"3:281Dh:3"
BIC0003,"DFLT"
BIM0004,"3:281Dh:4"
BIC0004,"DFLT"
BIM0005,"3:281Dh:5"
BIC0005,"DFLT"
BIM0006,""
BIC0006,"DFLT"
…
BIM1023,""
BIC1023,"DFLT"
CIM0000,""
CIC0000,"DFLT"
CIM0001,""
CIC0001,"DFLT"
…
CIM0127,""
CIC0127,"DFLT"
AOM0000,"OFF"
AOM0001,"OFF"
…
AOM0063,"OFF"
BOM0000,"0"
BOM0001,"1"
BOM0002,"2"
BOM0003,"3"
BOM0004,"OFF"
…
BOM0511,"OFF"

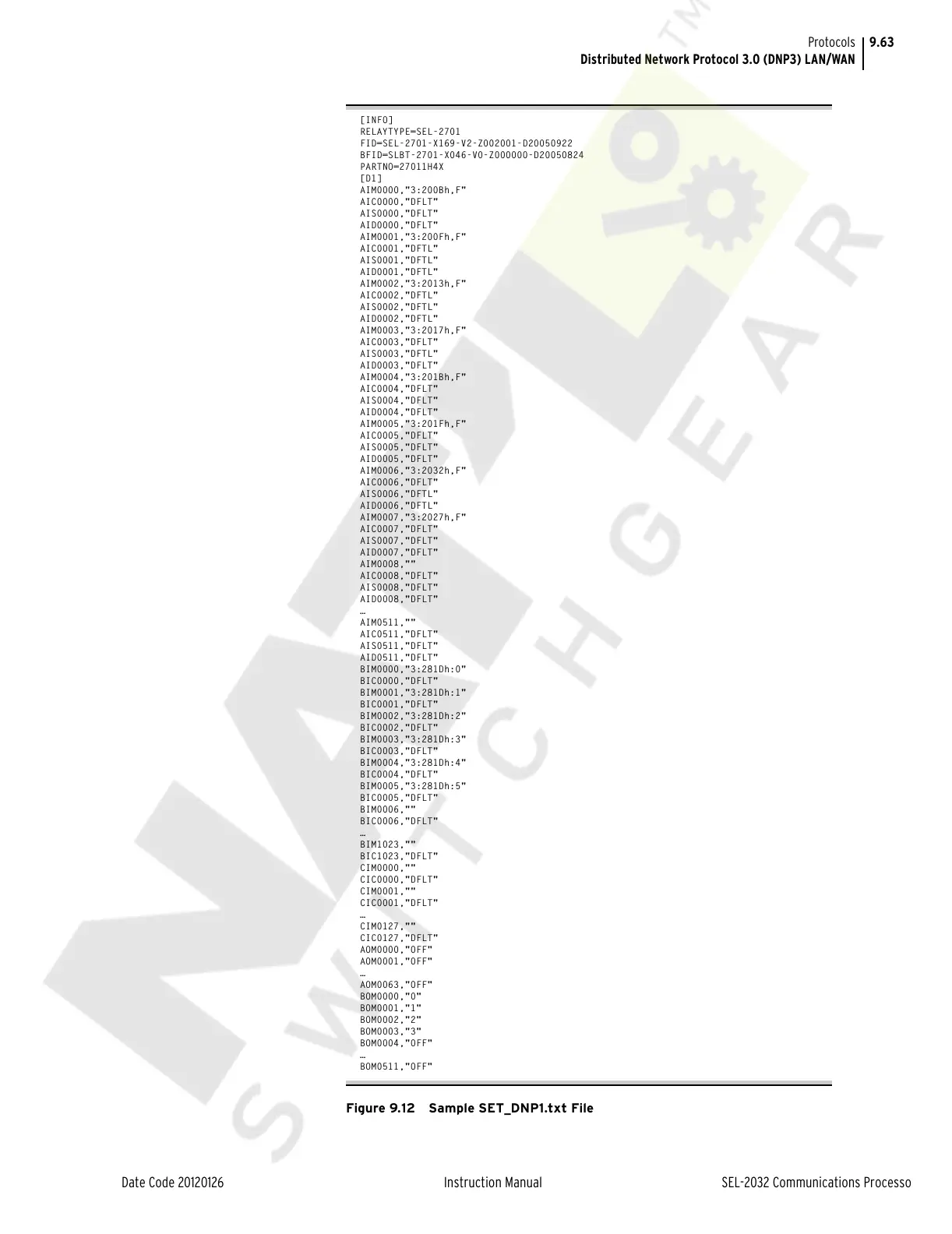

Figure 9.12 Sample SET_DNP1.txt File
