6.7

Date Code 20120126 Instruction Manual SEL-2032 Communications Processor

Database

Region Descriptions

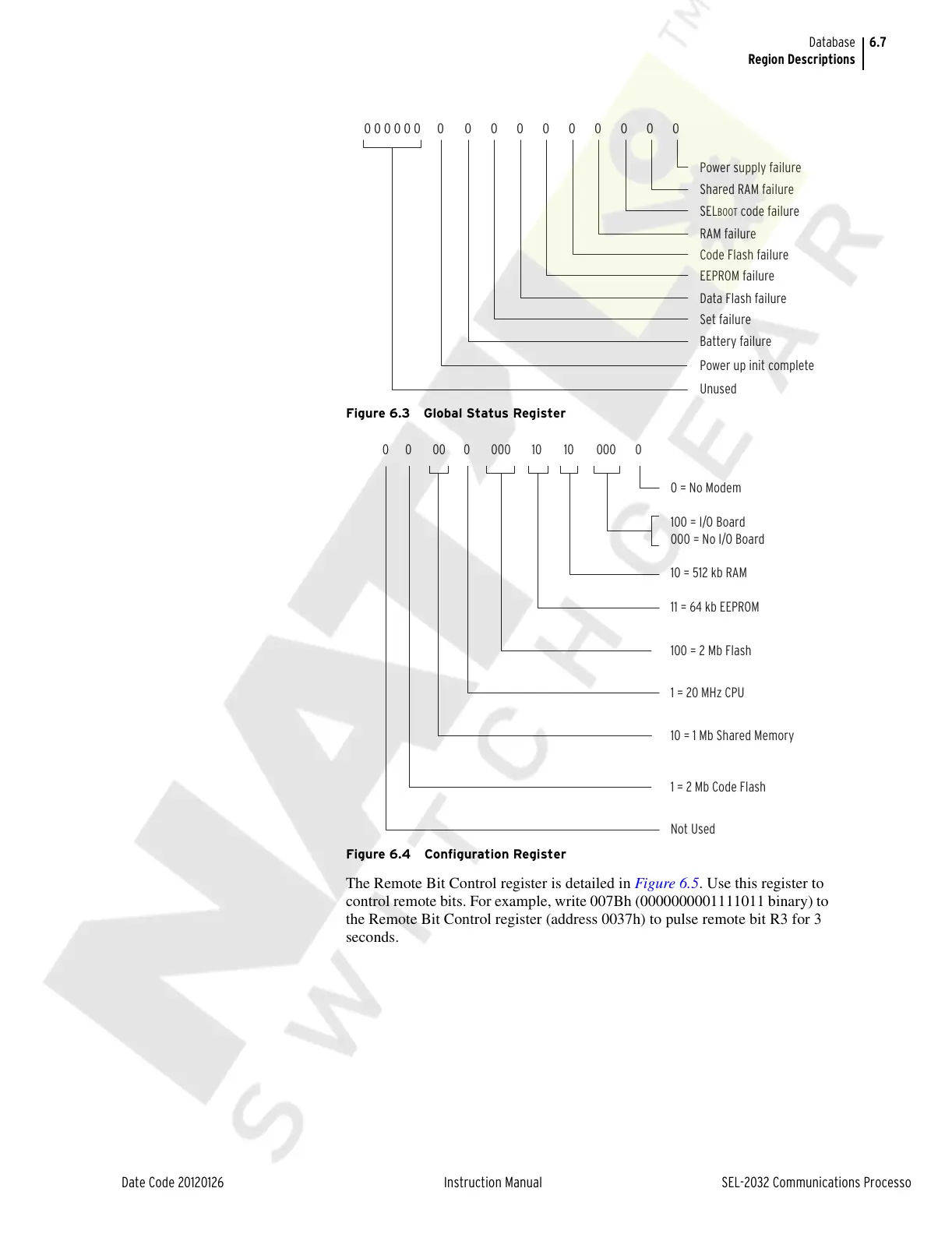

Figure 6.3 Global Status Register

Figure 6.4 Configuration Register

The Remote Bit Control register is detailed in Figure 6.5. Use this register to

control remote bits. For example, write 007Bh (0000000001111011 binary) to

the Remote Bit Control register (address 0037h) to pulse remote bit R3 for 3

seconds.

000000

Power supply failure

Shared RAM failure

SEL

BOOT code failure

RAM failure

Code Flash failure

EEPROM failure

Data Flash failure

Set failure

Battery failure

Power up init complete

Unused

00 00000000

0 = No Modem

100 = I/O Board

000 = No I/O Board

10 = 512 kb RAM

11 = 64 kb EEPROM

100 = 2 Mb Flash

1 = 20 MHz CPU

10 = 1 Mb Shared Memory

1 = 2 Mb Code Flash

Not Used

0 0 00 0 000 10 10 000 0
