Schweitzer Engineering SEL-2032 - Table 9.31 SEL-2032 DNP3 over Ethernet Map Settings

9.58
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
recommended for creation and modification of DNP3 maps within the
communications processor. You can use either absolute addresses or data
labels to specify input points in custom DNP3 maps.

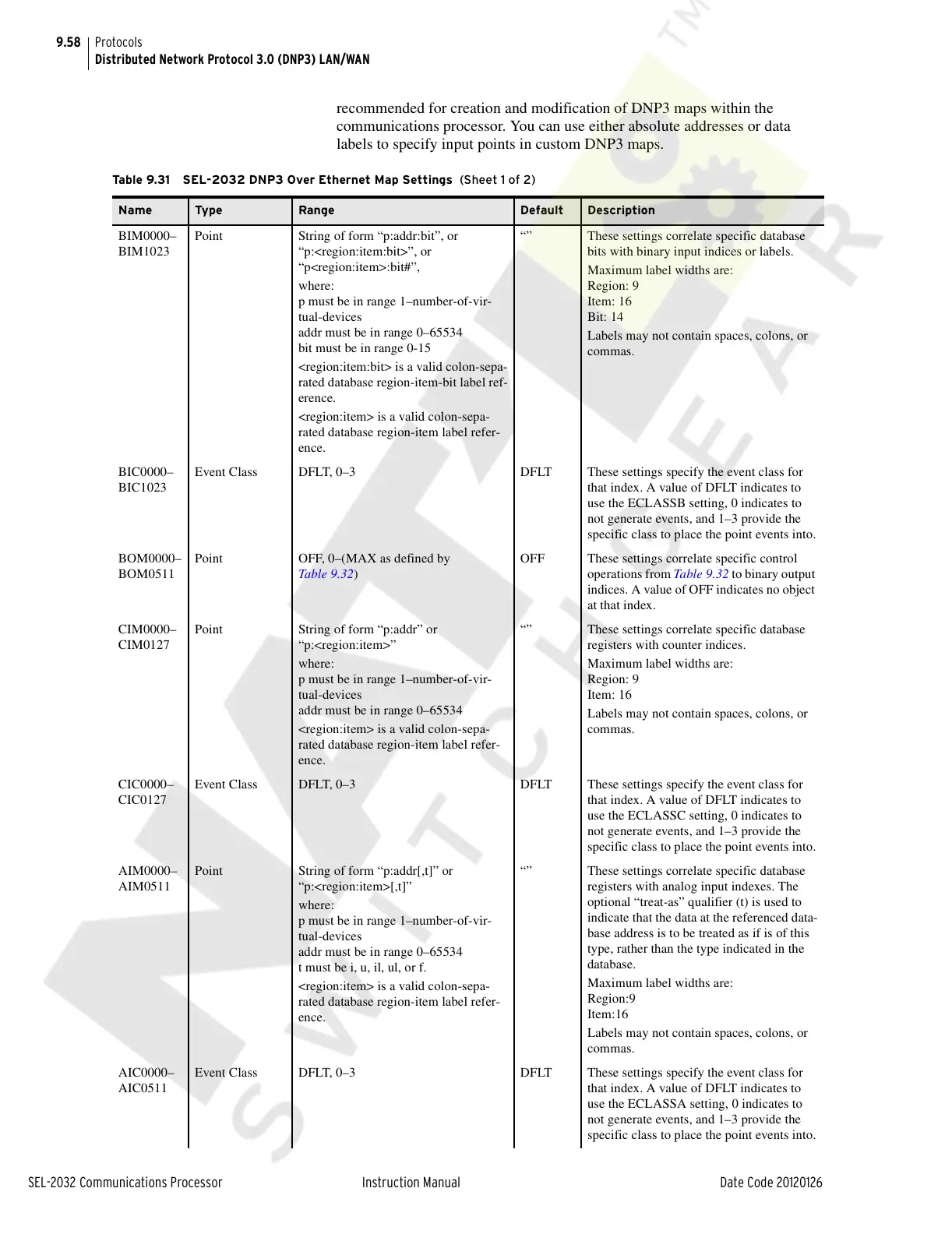

Table 9.31 SEL-2032 DNP3 Over Ethernet Map Settings (Sheet 1 of 2)
Name Type Range Default Description
BIM0000–
BIM1023
Point String of form “p:addr:bit”, or
“p:<region:item:bit>”, or
“p<region:item>:bit#”,
where:
p must be in range 1–number-of-vir-
tual-devices
addr must be in range 0–65534
bit must be in range 0-15
<region:item:bit> is a valid colon-sepa-
rated database region-item-bit label ref-
erence.
<region:item> is a valid colon-sepa-
rated database region-item label refer-
ence.
“” These settings correlate specific database
bits with binary input indices or labels.
Maximum label widths are:
Region: 9
Item: 16
Bit: 14
Labels may not contain spaces, colons, or
commas.
BIC0000–
BIC1023
Event Class DFLT, 0–3 DFLT These settings specify the event class for
that index. A value of DFLT indicates to
use the ECLASSB setting, 0 indicates to
not generate events, and 1–3 provide the
specific class to place the point events into.
BOM0000–
BOM0511
Point OFF, 0–(MAX as defined by
Table 9.32)
OFF These settings correlate specific control
operations from Table 9.32 to binary output
indices. A value of OFF indicates no object
at that index.
CIM0000–
CIM0127
Point String of form “p:addr” or
“p:<region:item>”
where:
p must be in range 1–number-of-vir-
tual-devices
addr must be in range 0–65534
<region:item> is a valid colon-sepa-
rated database region-item label refer-
ence.
“” These settings correlate specific database
registers with counter indices.
Maximum label widths are:
Region: 9
Item: 16
Labels may not contain spaces, colons, or
commas.
CIC0000–
CIC0127
Event Class DFLT, 0–3 DFLT These settings specify the event class for
that index. A value of DFLT indicates to
use the ECLASSC setting, 0 indicates to
not generate events, and 1–3 provide the
specific class to place the point events into.
AIM0000–
AIM0511
Point String of form “p:addr[,t]” or
“p:<region:item>[,t]”
where:
p must be in range 1–number-of-vir-
tual-devices
addr must be in range 0–65534
t must be i, u, il, ul, or f.
<region:item> is a valid colon-sepa-
rated database region-item label refer-
ence.
“” These settings correlate specific database
registers with analog input indexes. The
optional “treat-as” qualifier (t) is used to
indicate that the data at the referenced data-
base address is to be treated as if is of this
type, rather than the type indicated in the
database.
Maximum label widths are:
Region:9
Item:16
Labels may not contain spaces, colons, or
commas.
AIC0000–
AIC0511
Event Class DFLT, 0–3 DFLT These settings specify the event class for
that index. A value of DFLT indicates to
use the ECLASSA setting, 0 indicates to
not generate events, and 1–3 provide the
specific class to place the point events into.
