Schweitzer Engineering SEL-2032 - Figure 2.11 MAP 2 Command Verifies Data Types and Locations

To Next Page

To Previous Page

2.20

SEL-2032 Communications Processor Instruction Manual Date Code 20120126

Installation

Getting Started

*>>MAP2 <Enter>

Port 2 Database Assignments

Region Data Type # Records

GLOBAL --

LOCAL --

BUF --

D1 B METER

D2 B TARGET

D3 Unused

D4 Unused

D5 Unused

D6 Unused

D7 Unused

D8 Unused

A1 Unused

A2 Unused

A3 Unused

USER Unused

*>>

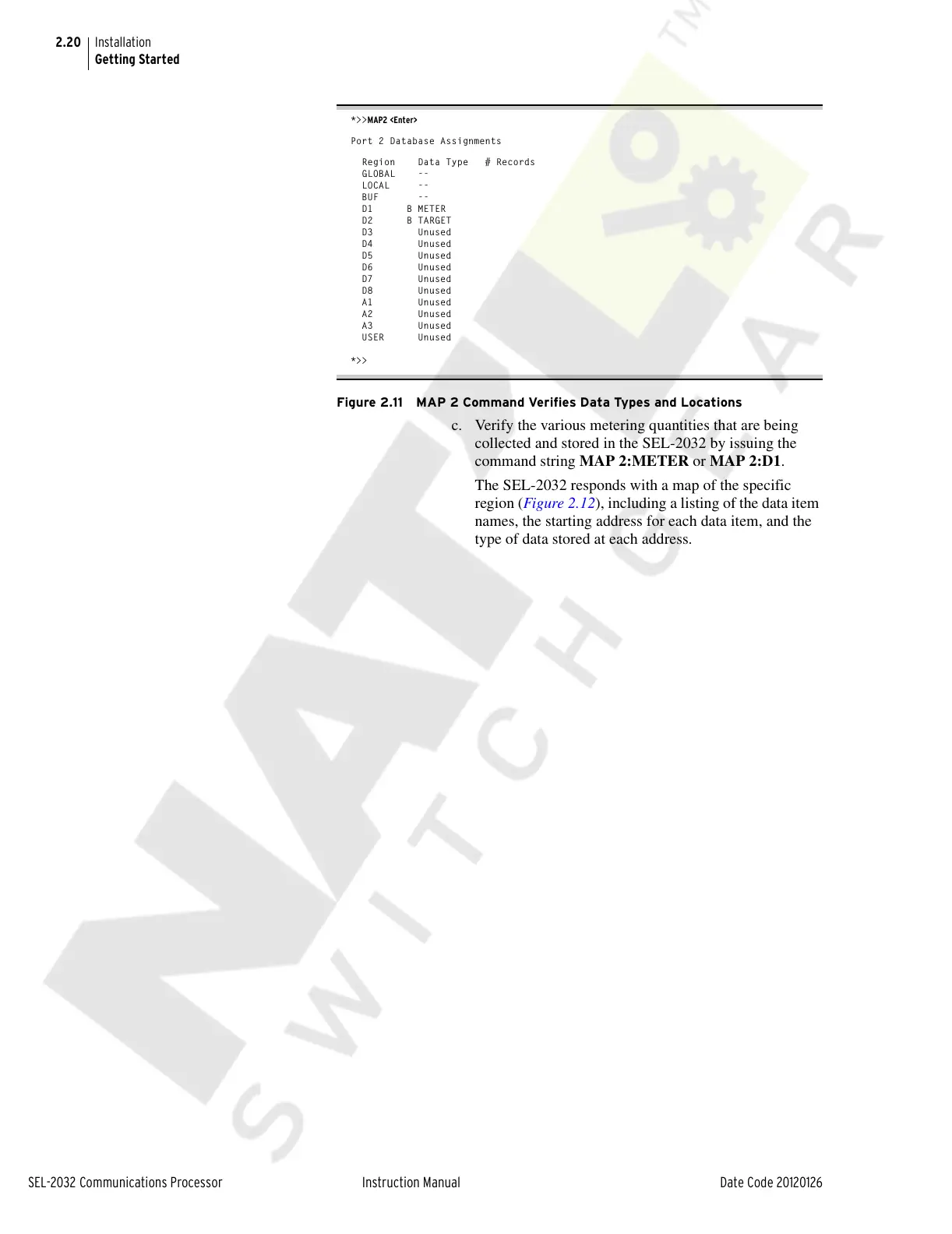

Figure 2.11 MAP 2 Command Verifies Data Types and Locations

c. Verify the various metering quantities that are being

collected and stored in the SEL-2032 by issuing the

command string MAP 2:METER or MAP 2:D1.

The SEL-2032 responds with a map of the specific

region (Figure 2.12), including a listing of the data item

names, the starting address for each data item, and the

type of data stored at each address.
