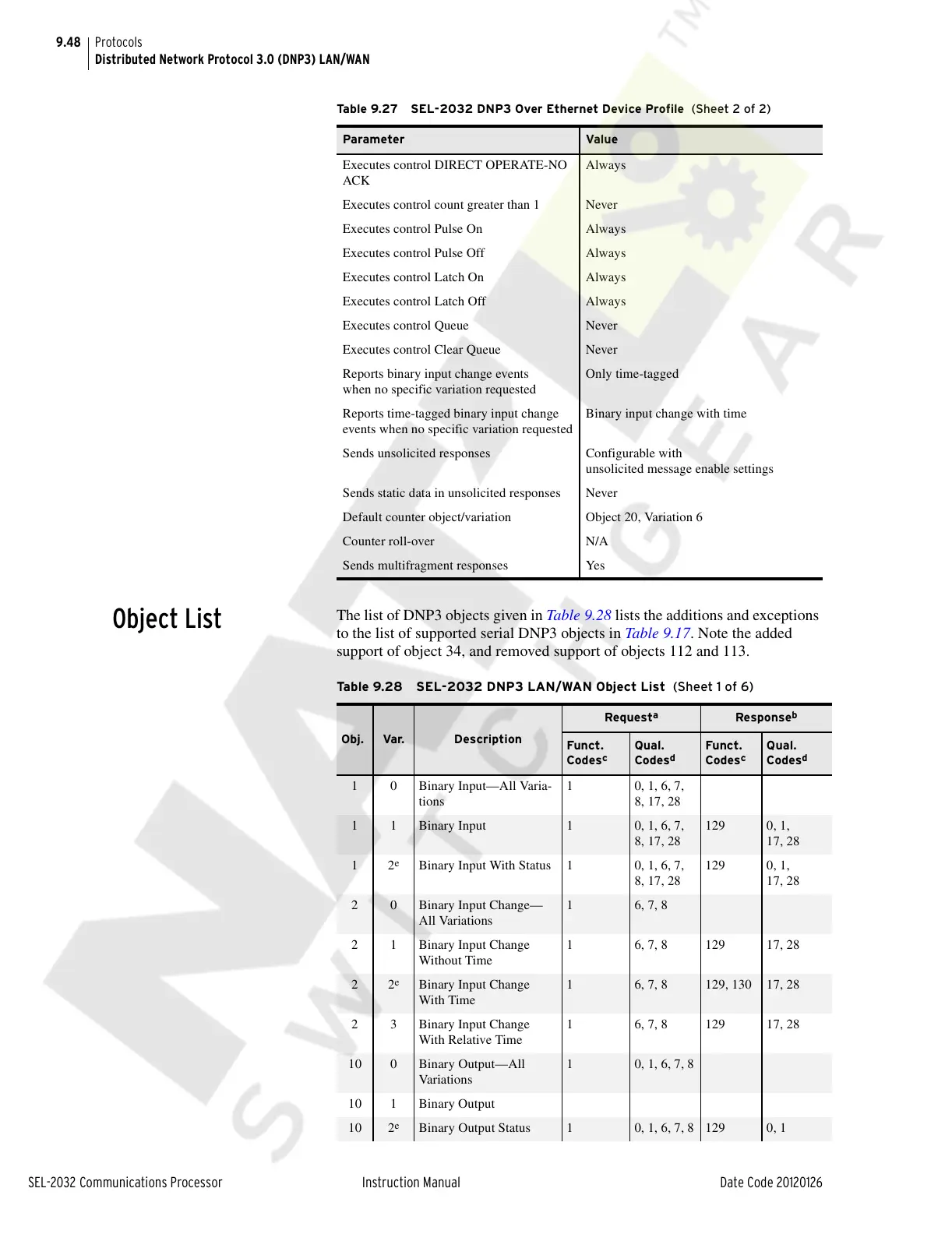

9.48
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
Object List
The list of DNP3 objects given in Table 9.28 lists the additions and exceptions
to the list of supported serial DNP3 objects in Table 9.17. Note the added
support of object 34, and removed support of objects 112 and 113.
Executes control DIRECT OPERATE-NO
ACK
Always
Executes control count greater than 1 Never
Executes control Pulse On Always
Executes control Pulse Off Always
Executes control Latch On Always
Executes control Latch Off Always
Executes control Queue Never
Executes control Clear Queue Never
Reports binary input change events
when no specific variation requested
Only time-tagged
Reports time-tagged binary input change
events when no specific variation requested
Binary input change with time
Sends unsolicited responses Configurable with
unsolicited message enable settings
Sends static data in unsolicited responses Never
Default counter object/variation Object 20, Variation 6
Counter roll-over N/A
Sends multifragment responses Yes
Table 9.27 SEL-2032 DNP3 Over Ethernet Device Profile (Sheet 2 of 2)
Parameter Value
Ta b le 9.2 8 S EL - 203 2 DNP3 LAN/WAN Object List (Sheet 1 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
1 0 Binary Input—All Varia-
tions
1 0, 1, 6, 7,
8, 17, 28
1 1 Binary Input 1 0, 1, 6, 7,
8, 17, 28
129 0, 1,
17, 28
12
e
Binary Input With Status 1 0, 1, 6, 7,
8, 17, 28
129 0, 1,
17, 28
2 0 Binary Input Change—
All Variations
1 6, 7, 8
2 1 Binary Input Change
Without Time
1 6, 7, 8 129 17, 28
2 2
e
Binary Input Change
With Time
1 6, 7, 8 129, 130 17, 28
2 3 Binary Input Change
With Relative Time
1 6, 7, 8 129 17, 28
10 0 Binary Output—All
Varia ti ons
1 0, 1, 6, 7, 8
10 1 Binary Output
10 2
e
Binary Output Status 1 0, 1, 6, 7, 8 129 0, 1
