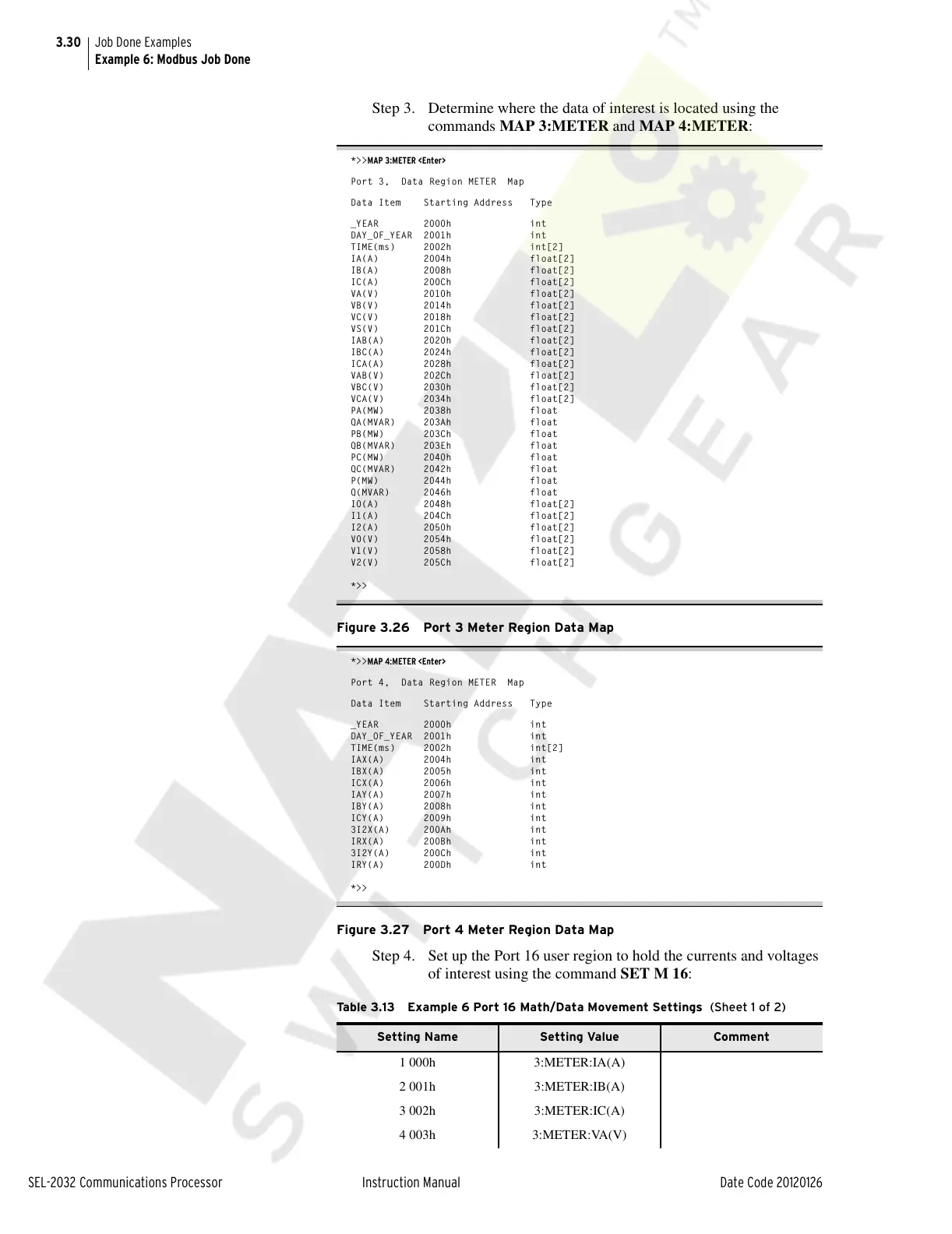

Example 6: Modbus Job Done
Step 3. Determine where the data of interest is located using the
commands MAP 3:METER and MAP 4:METER:
*>>MAP 3:METER <Enter>
Port 3, Data Region METER Map
Data Item Starting Address Type
_YEAR 2000h int
DAY_OF_YEAR 2001h int
TIME(ms) 2002h int[2]
IA(A) 2004h float[2]
IB(A) 2008h float[2]
IC(A) 200Ch float[2]
VA(V) 2010h float[2]
VB(V) 2014h float[2]
VC(V) 2018h float[2]
VS(V) 201Ch float[2]
IAB(A) 2020h float[2]
IBC(A) 2024h float[2]
ICA(A) 2028h float[2]
VAB(V) 202Ch float[2]
VBC(V) 2030h float[2]
VCA(V) 2034h float[2]
PA(MW) 2038h float
QA(MVAR) 203Ah float
PB(MW) 203Ch float
QB(MVAR) 203Eh float
PC(MW) 2040h float
QC(MVAR) 2042h float
P(MW) 2044h float
Q(MVAR) 2046h float
I0(A) 2048h float[2]
I1(A) 204Ch float[2]
I2(A) 2050h float[2]
V0(V) 2054h float[2]
V1(V) 2058h float[2]
V2(V) 205Ch float[2]
*>>
Figure 3.26 Port 3 Meter Region Data Map
*>>MAP 4:METER <Enter>
Port 4, Data Region METER Map
Data Item Starting Address Type
_YEAR 2000h int
DAY_OF_YEAR 2001h int
TIME(ms) 2002h int[2]
IAX(A) 2004h int
IBX(A) 2005h int
ICX(A) 2006h int
IAY(A) 2007h int
IBY(A) 2008h int
ICY(A) 2009h int
3I2X(A) 200Ah int
IRX(A) 200Bh int
3I2Y(A) 200Ch int
IRY(A) 200Dh int
*>>
Figure 3.27 Port 4 Meter Region Data Map
Step 4. Set up the Port 16 user region to hold the currents and voltages
of interest using the command SET M 16:
Table 3.13 Example 6 Port 16 Math/Data Movement Settings (Sheet 1 of 2)
Setting Name Setting Value Comment
1 000h 3:METER:IA(A)
2 001h 3:METER:IB(A)
3 002h 3:METER:IC(A)
4 003h 3:METER:VA(V)
