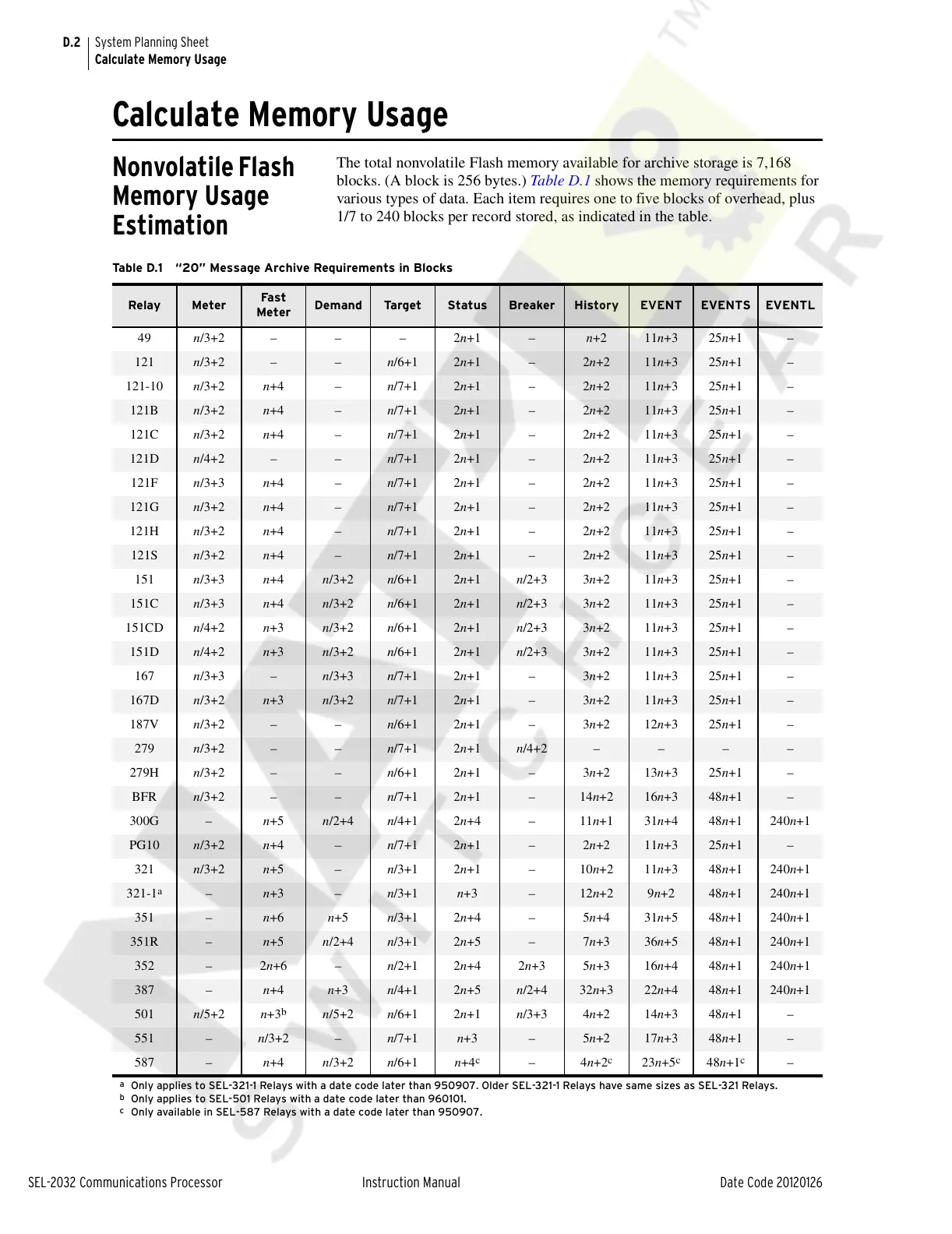

Schweitzer Engineering SEL-2032 - Calculate Memory Usage; Table D.1 20 Message Archive Requirements in Blocks

D.2
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
System Planning Sheet
Calculate Memory Usage
Calculate Memory Usage
Nonvolatile Flash
Memory Usage
Estimation
The total nonvolatile Flash memory available for archive storage is 7,168
blocks. (A block is 256 bytes.) Table D. 1 shows the memory requirements for
various types of data. Each item requires one to five blocks of overhead, plus
1/7 to 240 blocks per record stored, as indicated in the table.
Table D.1 “20” Message Archive Requirements in Blocks
Relay Meter
Fast
Meter
Demand Tar g e t Status Breaker History EVENT EVENTS EVENTL
49 n/3+2 – – – 2n+1 – n+2 11n+3 25n+1 –
121 n/3+2 – – n/6+1 2n+1 – 2n+2 11n+3 25n+1 –
121-10 n/3+2 n+4 – n/7+1 2n+1–2n+2 11n+3 25n+1 –
121B n/3+2 n+4 – n/7+1 2n+1 – 2n+2 11n+3 25n+1 –
121C n/3+2 n+4 – n/7+1 2n+1–2n+2 11n+3 25n+1 –
121D n/4+2 – – n/7+1 2n+1 – 2n+2 11n+3 25n+1 –
121F n/3+3 n+4 – n/7+1 2n+1–2n+2 11n+3 25n+1 –
121G n/3+2 n+4 – n/7+1 2n+1 – 2n+2 11n+3 25n+1 –
121H n/3+2 n+4 – n/7+1 2n+1–2n+2 11n+3 25n+1 –
121S n/3+2 n+4 – n/7+1 2n+1 – 2n+2 11n+3 25n+1 –
151 n/3+3 n+4 n/3+2 n/6+1 2n+1 n/2+3 3n+2 11n+3 25n+1 –
151C n/3+3 n+4 n/3+2 n/6+1 2n+1 n/2+3 3n+2 11n+3 25n+1 –
151CD n/4+2 n+3 n/3+2 n/6+1 2n+1 n/2+3 3n+2 11n+3 25n+1 –
151D n/4+2 n+3 n/3+2 n/6+1 2n+1 n/2+3 3n+2 11n+3 25n+1 –
167 n/3+3 – n/3+3 n/7+1 2n+1–3n+2 11n+3 25n+1 –
167D n/3+2 n+3 n/3+2 n/7+1 2n+1 – 3n+2 11n+3 25n+1 –
187V n/3+2 – – n/6+1 2n+1–3n+2 12n+3 25n+1 –
279 n/3+2 – – n/7+1 2n+1 n/4+2 – – – –
279H n/3+2 – – n/6+1 2n+1–3n+2 13n+3 25n+1 –
BFR n/3+2 – – n/7+1 2n+1 – 14n+2 16n+3 48n+1 –
300G – n+5 n/2+4 n/4+1 2n+4 – 11n+1 31n+4 48n+1 240n+1
PG10 n/3+2 n+4 – n/7+1 2n+1 – 2n+2 11n+3 25n+1 –
321 n/3+2 n+5 – n/3+1 2n+1 – 10n+2 11n+3 48n+1 240n+1
321-1
a
a
Only applies to SEL-321-1 Relays with a date code later than 950907. Older SEL-321-1 Relays have same sizes as SEL-321 Relays.
– n+3 – n/3+1 n+3 – 12n+2 9n+2 48n+1 240n+1
351 – n+6 n+5 n/3+1 2n+4–5n+4 31n+5 48n+1 240n+1
351R – n+5 n/2+4 n/3+1 2n+5 – 7n+3 36n+5 48n+1 240n+1
352 – 2n+6 – n/2+1 2n+4 2n+3 5n+3 16n+4 48n+1 240n+1
387 – n+4 n+3 n/4+1 2n+5 n/2+4 32n+3 22n+4 48n+1 240n+1
501 n/5+2 n+3
b
b
Only applies to SEL-501 Relays with a date code later than 960101.
n/5+2 n/6+1 2n+1 n/3+3 4n+2 14n+3 48n+1 –
551 – n/3+2 – n/7+1 n+3 – 5n+2 17n+3 48n+1 –
587 – n+4 n/3+2 n/6+1 n+4
c
c
Only available in SEL-587 Relays with a date code later than 950907.
–4n+2
c
23n+5
c
48n+1
c
–
