Schweitzer Engineering SEL-2032 - Table 6.4 Global Element Definitions

6.10
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Database
Region Descriptions

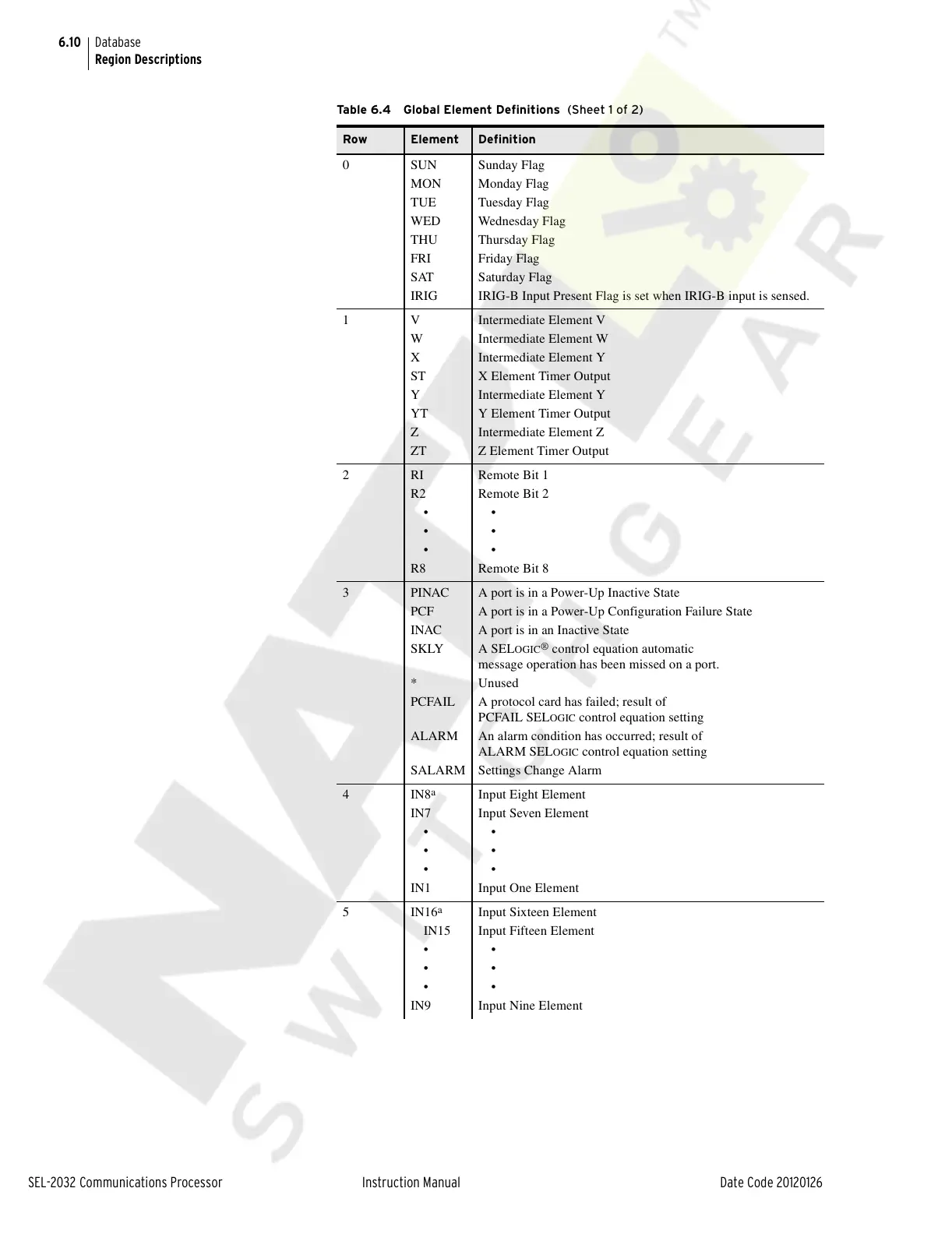

Table 6.4 Global Element Definitions (Sheet 1 of 2)
Row Element Definition
0SUN
MON
TUE
WED
THU
FRI
SAT
IRIG
Sunday Flag
Monday Flag
Tuesday Flag
Wednesday Flag
Thursday Flag
Friday Flag
Saturday Flag
IRIG-B Input Present Flag is set when IRIG-B input is sensed.
1V
W
X
ST
Y
YT
Z
ZT
Intermediate Element V
Intermediate Element W
Intermediate Element Y
X Element Timer Output
Intermediate Element Y
Y Element Timer Output
Intermediate Element Z
Z Element Timer Output
2RI
R2
•
•
•
R8
Remote Bit 1
Remote Bit 2
•
•
•
Remote Bit 8
3PINAC
PCF
INAC
SKLY
*
PCFAIL
ALARM
SALARM
A port is in a Power-Up Inactive State
A port is in a Power-Up Configuration Failure State
A port is in an Inactive State
A SEL
OGIC
®
control equation automatic
message operation has been missed on a port.
Unused
A protocol card has failed; result of
PCFAIL SEL
OGIC control equation setting
An alarm condition has occurred; result of
ALARM SEL
OGIC control equation setting
Settings Change Alarm
4IN8
a
IN7
•
•
•
IN1
Input Eight Element
Input Seven Element
•
•
•
Input One Element
5IN16
a
IN15
•
•
•
IN9
Input Sixteen Element
Input Fifteen Element
•
•
•
Input Nine Element
