Date Code 20120126 Instruction Manual SEL-2032 Communications Processor

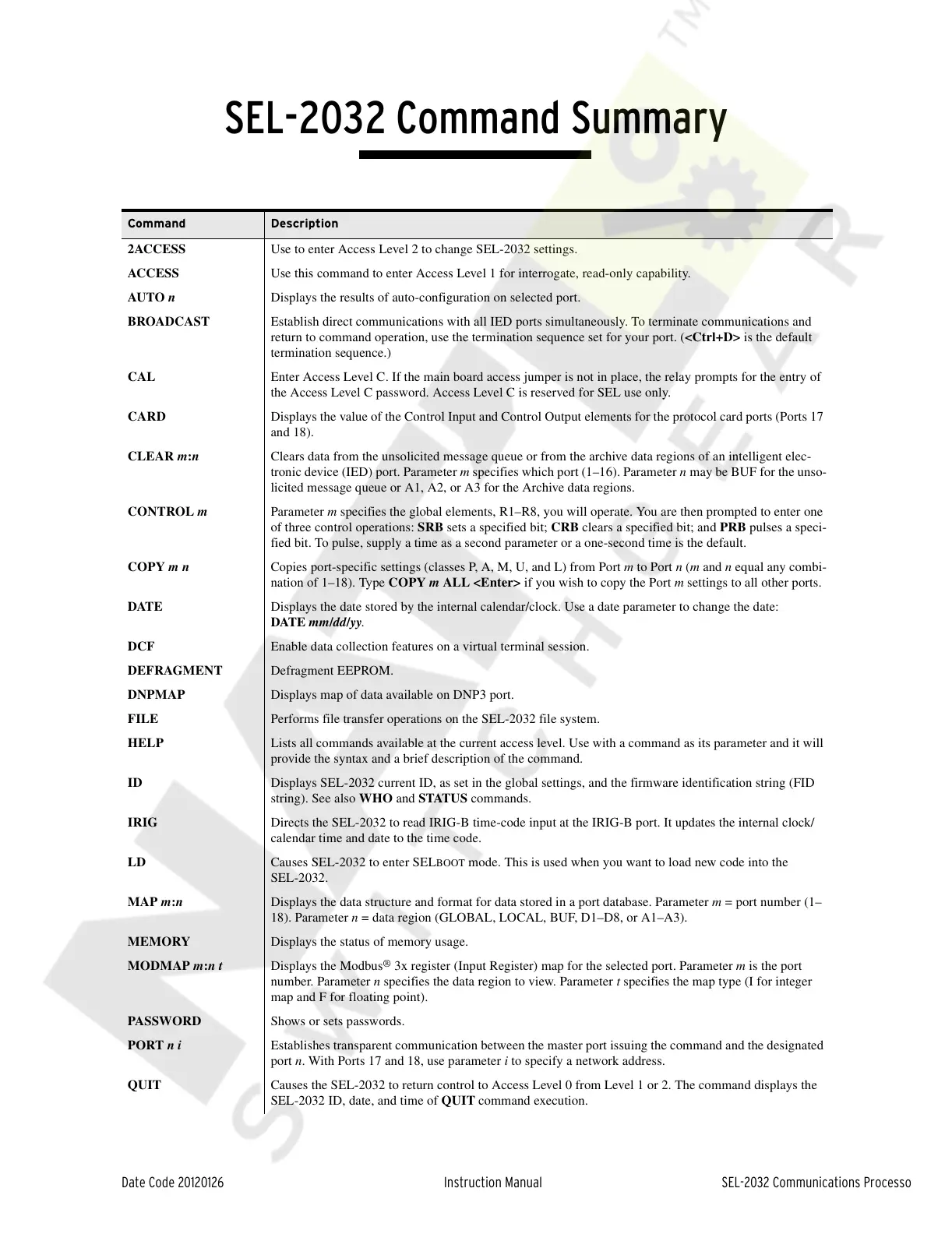

SEL-2032 Command Summary
Command Description
2ACCESS Use to enter Access Level 2 to change SEL-2032 settings.
ACCESS Use this command to enter Access Level 1 for interrogate, read-only capability.
AUTO n Displays the results of auto-configuration on selected port.
BROADCAST Establish direct communications with all IED ports simultaneously. To terminate communications and
return to command operation, use the termination sequence set for your port. (<Ctrl+D> is the default
termination sequence.)
CAL Enter Access Level C. If the main board access jumper is not in place, the relay prompts for the entry of
the Access Level C password. Access Level C is reserved for SEL use only.
CARD Displays the value of the Control Input and Control Output elements for the protocol card ports (Ports 17
and 18).
CLEAR m:n Clears data from the unsolicited message queue or from the archive data regions of an intelligent elec-
tronic device (IED) port. Parameter m specifies which port (1–16). Parameter n may be BUF for the unso-
licited message queue or A1, A2, or A3 for the Archive data regions.
CONTROL m Parameter m specifies the global elements, R1–R8, you will operate. You are then prompted to enter one
of three control operations: SRB sets a specified bit; CRB clears a specified bit; and PRB pulses a speci-
fied bit. To pulse, supply a time as a second parameter or a one-second time is the default.
COPY m n Copies port-specific settings (classes P, A, M, U, and L) from Port m to Port n (m and n equal any combi-
nation of 1–18). Type COPY m ALL <Enter> if you wish to copy the Port m settings to all other ports.
DATE Displays the date stored by the internal calendar/clock. Use a date parameter to change the date:
DATE mm/dd/yy.
DCF Enable data collection features on a virtual terminal session.
DEFRAGMENT Defragment EEPROM.
DNPMAP Displays map of data available on DNP3 port.
FILE Performs file transfer operations on the SEL-2032 file system.
HELP Lists all commands available at the current access level. Use with a command as its parameter and it will
provide the syntax and a brief description of the command.
ID Displays SEL-2032 current ID, as set in the global settings, and the firmware identification string (FID
string). See also WHO and STATUS commands.
IRIG Directs the SEL-2032 to read IRIG-B time-code input at the IRIG-B port. It updates the internal clock/
calendar time and date to the time code.
LD Causes SEL-2032 to enter SEL
BOOT mode. This is used when you want to load new code into the
SEL-2032.
MAP m:n Displays the data structure and format for data stored in a port database. Parameter m = port number (1–
18). Parameter n = data region (GLOBAL, LOCAL, BUF, D1–D8, or A1–A3).
MEMORY Displays the status of memory usage.
MODMAP m:n t Displays the Modbus
®
3x register (Input Register) map for the selected port. Parameter m is the port
number. Parameter n specifies the data region to view. Parameter t specifies the map type (I for integer
map and F for floating point).
PASSWORD Shows or sets passwords.
PORT n i Establishes transparent communication between the master port issuing the command and the designated
port n. With Ports 17 and 18, use parameter i to specify a network address.
QUIT Causes the SEL-2032 to return control to Access Level 0 from Level 1 or 2. The command displays the
SEL-2032 ID, date, and time of QUIT command execution.
