2
SEL-2032 Communications Processor Instruction Manual Date Code 20120126

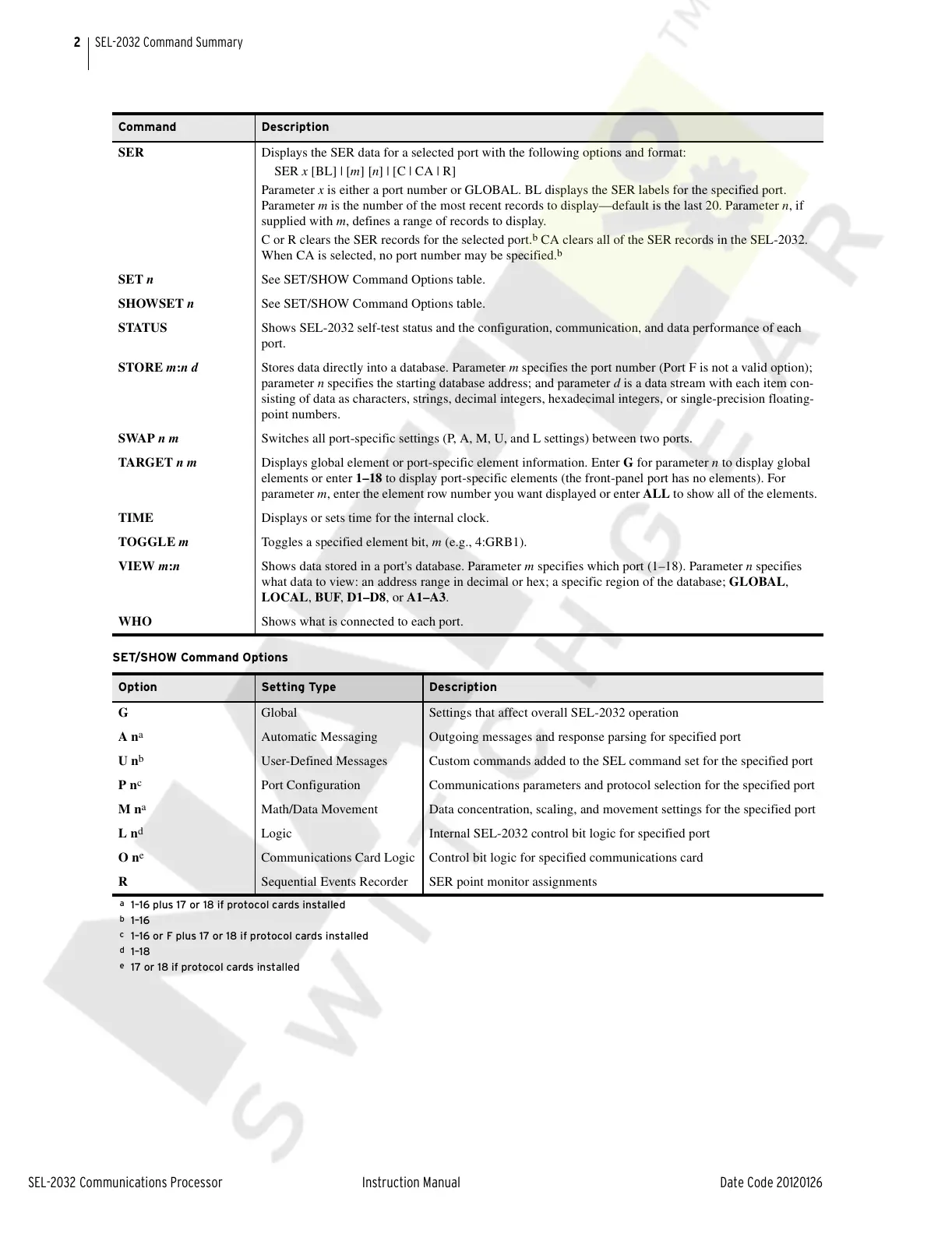

SEL-2032 Command Summary
SER Displays the SER data for a selected port with the following options and format:
SER x [BL] | [m] [n] | [C | CA | R]
Parameter x is either a port number or GLOBAL. BL displays the SER labels for the specified port.
Parameter m is the number of the most recent records to display—default is the last 20. Parameter n, if
supplied with m, defines a range of records to display.
C or R clears the SER records for the selected port.
b
CA clears all of the SER records in the SEL-2032.
When CA is selected, no port number may be specified.
b
SET n See SET/SHOW Command Options table.
SHOWSET n See SET/SHOW Command Options table.
STATUS Shows SEL-2032 self-test status and the configuration, communication, and data performance of each
port.
STORE m:n d Stores data directly into a database. Parameter m specifies the port number (Port F is not a valid option);
parameter n specifies the starting database address; and parameter d is a data stream with each item con-
sisting of data as characters, strings, decimal integers, hexadecimal integers, or single-precision floating-
point numbers.
SWAP n m Switches all port-specific settings (P, A, M, U, and L settings) between two ports.
TARGET n m Displays global element or port-specific element information. Enter G for parameter n to display global
elements or enter 1–18 to display port-specific elements (the front-panel port has no elements). For
parameter m, enter the element row number you want displayed or enter ALL to show all of the elements.
TIME Displays or sets time for the internal clock.
TOGGLE m Toggles a specified element bit, m (e.g., 4:GRB1).
VIEW m:n Shows data stored in a port's database. Parameter m specifies which port (1–18). Parameter n specifies
what data to view: an address range in decimal or hex; a specific region of the database; GLOBAL,
LOCAL, BUF, D1–D8, or A1–A3.
WHO Shows what is connected to each port.
SET/SHOW Command Options
Option Setting Type Description
G Global Settings that affect overall SEL-2032 operation
A n
a
Automatic Messaging Outgoing messages and response parsing for specified port
U n
b
User-Defined Messages Custom commands added to the SEL command set for the specified port
P n
c
Port Configuration Communications parameters and protocol selection for the specified port
M n
a
Math/Data Movement Data concentration, scaling, and movement settings for the specified port
L n
d
Logic Internal SEL-2032 control bit logic for specified port
O n
e
Communications Card Logic Control bit logic for specified communications card
R Sequential Events Recorder SER point monitor assignments
a
1–16 plus 17 or 18 if protocol cards installed
b
1–16
c
1–16 or F plus 17 or 18 if protocol cards installed
d
1–18
e
17 or 18 if protocol cards installed
Command Description
