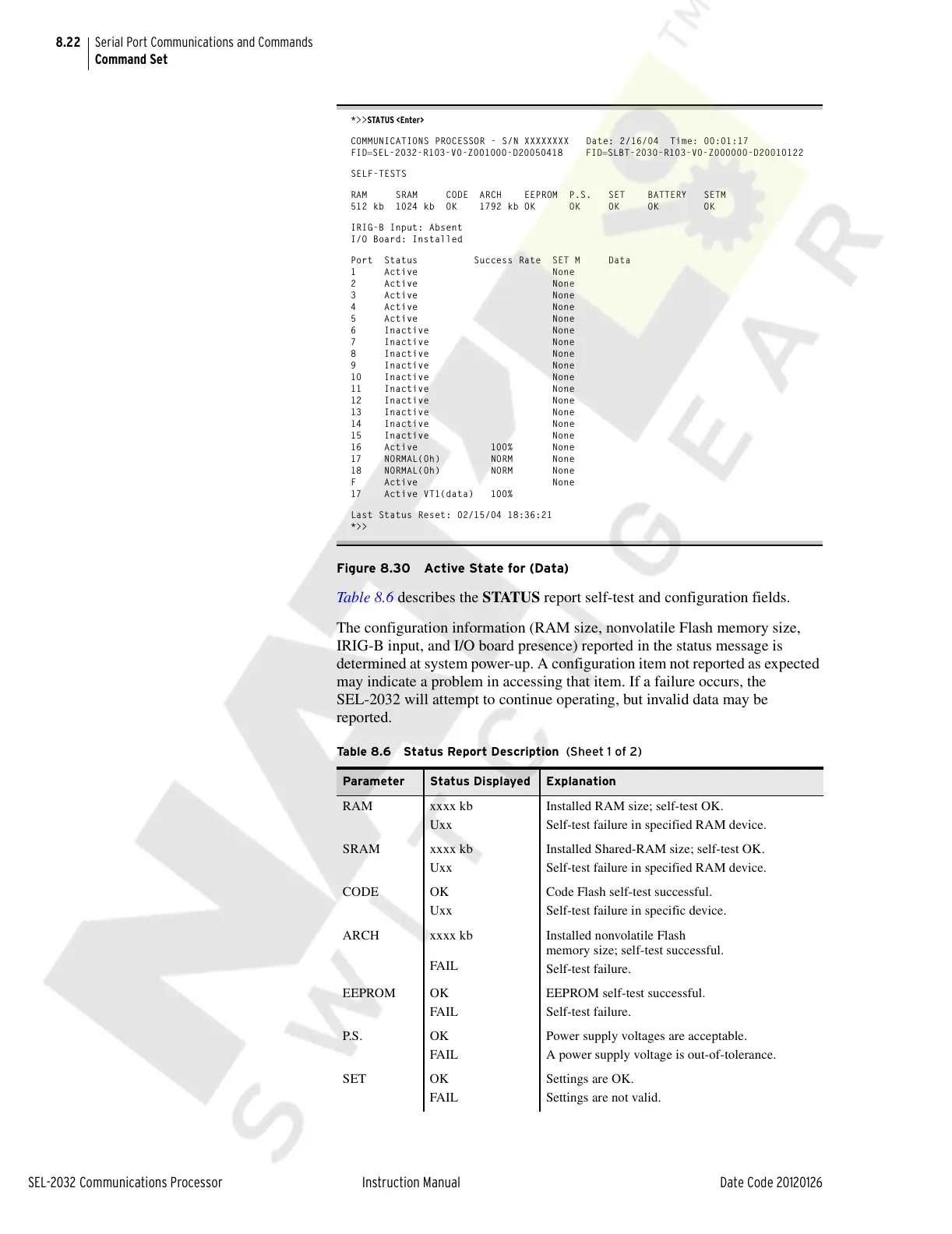

8.22
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Serial Port Communications and Commands
Command Set
*>>STATUS <Enter>
COMMUNICATIONS PROCESSOR - S/N XXXXXXXX Date: 2/16/04 Time: 00:01:17
FIDSEL-2032-R103-V0-Z001000-D20050418 FIDSLBT-2030-R103-V0-Z000000-D20010122
SELF-TESTS
RAM SRAM CODE ARCH EEPROM P.S. SET BATTERY SETM
512 kb 1024 kb OK 1792 kb OK OK OK OK OK
IRIG-B Input: Absent
I/O Board: Installed
Port Status Success Rate SET M Data
1 Active None
2 Active None
3 Active None
4 Active None
5 Active None
6 Inactive None
7 Inactive None
8 Inactive None
9 Inactive None
10 Inactive None
11 Inactive None
12 Inactive None
13 Inactive None
14 Inactive None
15 Inactive None
16 Active 100% None
17 NORMAL(0h) NORM None
18 NORMAL(0h) NORM None
F Active None
17 Active VT1(data) 100%
Last Status Reset: 02/15/04 18:36:21
*>>
Figure 8.30 Active State for (Data)
Table 8.6 describes the STATUS report self-test and configuration fields.
The configuration information (RAM size, nonvolatile Flash memory size,
IRIG-B input, and I/O board presence) reported in the status message is
determined at system power-up. A configuration item not reported as expected
may indicate a problem in accessing that item. If a failure occurs, the
SEL-2032 will attempt to continue operating, but invalid data may be
reported.
Table 8.6 Status Report Description (Sheet 1 of 2)
Parameter Status Displayed Explanation
RAM xxxx kb
Uxx
Installed RAM size; self-test OK.
Self-test failure in specified RAM device.
SRAM xxxx kb
Uxx
Installed Shared-RAM size; self-test OK.
Self-test failure in specified RAM device.
CODE OK
Uxx
Code Flash self-test successful.
Self-test failure in specific device.
ARCH xxxx kb
FAIL
Installed nonvolatile Flash
memory size; self-test successful.
Self-test failure.
EEPROM OK
FAIL
EEPROM self-test successful.
Self-test failure.
P.S. OK
FAIL
Power supply voltages are acceptable.
A power supply voltage is out-of-tolerance.
SET OK
FAIL
Settings are OK.
Settings are not valid.
