Schweitzer Engineering SEL-2032 - Table D.3 Data Record Sizes (Bytes) by Relay and Record Type

D.5
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
System Planning Sheet
Calculate Memory Usage
S = 128 + NUM if PARSE = CHAR_STRING
S = 128 + 2 • NUM if PARSE = INT_STRING or PARSE = ASCII_INT
S = 128 + 4 • NUM if PARSE = ASCII_FLOAT

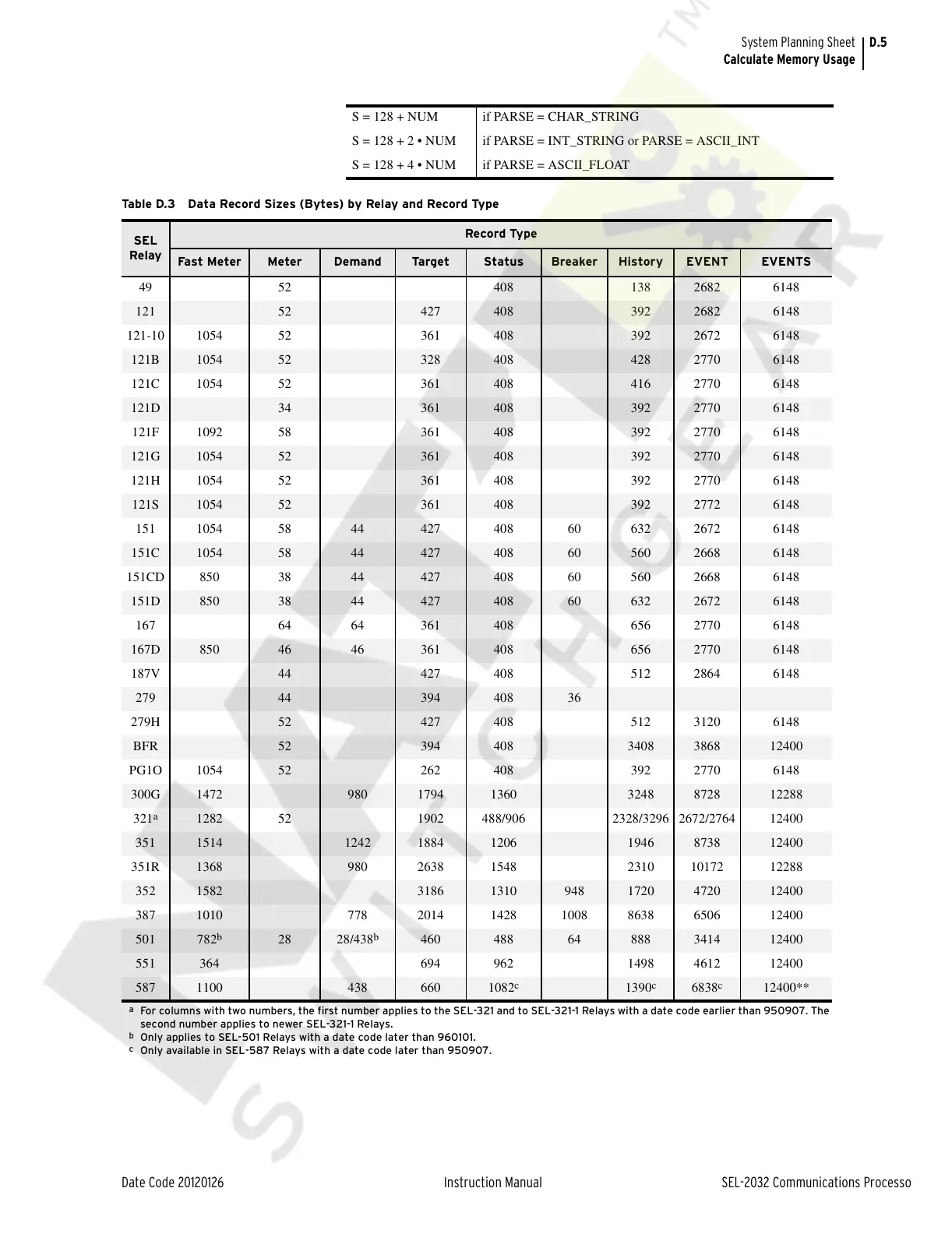

Table D.3 Data Record Sizes (Bytes) by Relay and Record Type
SEL
Relay
Record Type
Fast Me ter Meter Demand Ta rge t Status Breaker History EVENT EVENTS
49 52 408 138 2682 6148
121 52 427 408 392 2682 6148
121-10 1054 52 361 408 392 2672 6148
121B 1054 52 328 408 428 2770 6148
121C 1054 52 361 408 416 2770 6148
121D 34 361 408 392 2770 6148
121F 1092 58 361 408 392 2770 6148
121G 1054 52 361 408 392 2770 6148
121H 1054 52 361 408 392 2770 6148
121S 1054 52 361 408 392 2772 6148
151 1054 58 44 427 408 60 632 2672 6148
151C 1054 58 44 427 408 60 560 2668 6148
151CD 850 38 44 427 408 60 560 2668 6148
151D 850 38 44 427 408 60 632 2672 6148
167 64 64 361 408 656 2770 6148
167D 850 46 46 361 408 656 2770 6148
187V 44 427 408 512 2864 6148
279 44 394 408 36
279H 52 427 408 512 3120 6148
BFR 52 394 408 3408 3868 12400
PG1O 1054 52 262 408 392 2770 6148
300G 1472 980 1794 1360 3248 8728 12288
321
a
a
For columns with two numbers, the first number applies to the SEL-321 and to SEL-321-1 Relays with a date code earlier than 950907. The
second number applies to newer SEL-321-1 Relays.
1282 52 1902 488/906 2328/3296 2672/2764 12400
351 1514 1242 1884 1206 1946 8738 12400
351R 1368 980 2638 1548 2310 10172 12288
352 1582 3186 1310 948 1720 4720 12400
387 1010 778 2014 1428 1008 8638 6506 12400
501 782
b
b
Only applies to SEL-501 Relays with a date code later than 960101.
28 28/438
b
460 488 64 888 3414 12400
551 364 694 962 1498 4612 12400
587 1100 438 660 1082
c
c
Only available in SEL-587 Relays with a date code later than 950907.
1390
c
6838
c
12400**
