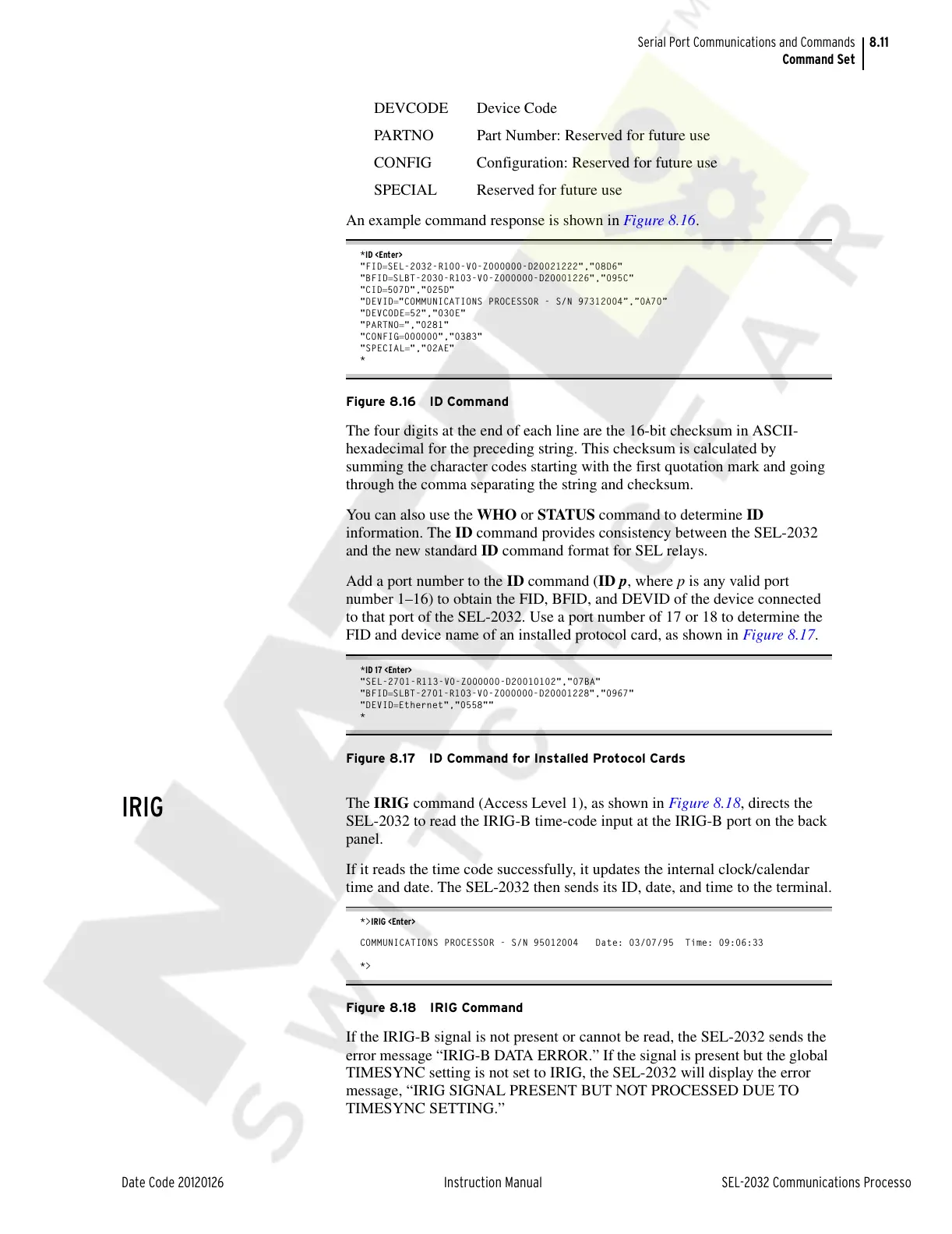

8.11
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Serial Port Communications and Commands
Command Set
DEVCODE Device Code
PARTNO Part Number: Reserved for future use
CONFIG Configuration: Reserved for future use
SPECIAL Reserved for future use
An example command response is shown in Figure 8.16.
*ID <Enter>
"FIDSEL-2032-R100-V0-Z000000-D20021222","08D6"
"BFIDSLBT-2030-R103-V0-Z000000-D20001226","095C"
"CID507D","025D"
"DEVID"COMMUNICATIONS PROCESSOR - S/N 97312004”,”0A70”
"DEVCODE52","030E"
"PARTNO","0281"
"CONFIG000000","0383"
"SPECIAL","02AE"
*
Figure 8.16 ID Command
The four digits at the end of each line are the 16-bit checksum in ASCII-
hexadecimal for the preceding string. This checksum is calculated by
summing the character codes starting with the first quotation mark and going
through the comma separating the string and checksum.
You can also use the WHO or STATUS command to determine ID
information. The ID command provides consistency between the SEL-2032
and the new standard ID command format for SEL relays.
Add a port number to the ID command (ID p, where p is any valid port
number 1–16) to obtain the FID, BFID, and DEVID of the device connected
to that port of the SEL-2032. Use a port number of 17 or 18 to determine the
FID and device name of an installed protocol card, as shown in Figure 8.17.
*ID 17 <Enter>
"SEL-2701-R113-V0-Z000000-D20010102","07BA"
"BFIDSLBT-2701-R103-V0-Z000000-D20001228","0967"
"DEVIDEthernet","0558""
*
Figure 8.17 ID Command for Installed Protocol Cards
IRIG
The IRIG command (Access Level 1), as shown in Figure 8.18, directs the
SEL-2032 to read the IRIG-B time-code input at the IRIG-B port on the back
panel.
If it reads the time code successfully, it updates the internal clock/calendar
time and date. The SEL-2032 then sends its ID, date, and time to the terminal.
*>IRIG <Enter>
COMMUNICATIONS PROCESSOR - S/N 95012004 Date: 03/07/95 Time: 09:06:33
*>
Figure 8.18 IRIG Command
If the IRIG-B signal is not present or cannot be read, the SEL-2032 sends the
error message “IRIG-B DATA ERROR.” If the signal is present but the global
TIMESYNC setting is not set to IRIG, the SEL-2032 will display the error
message, “IRIG SIGNAL PRESENT BUT NOT PROCESSED DUE TO
TIMESYNC SETTING.”
