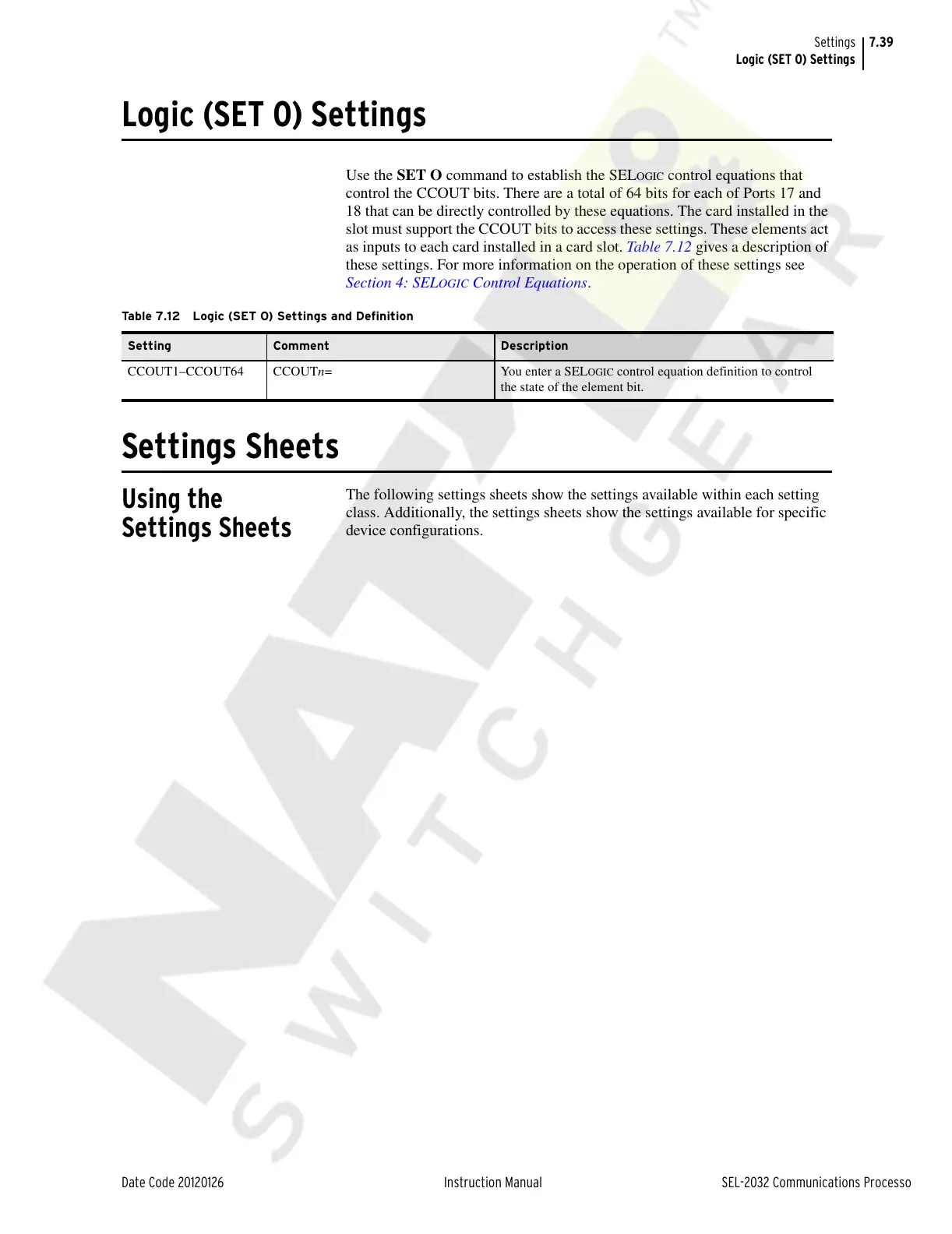

7.39
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Settings
Logic (SET O) Settings
Logic (SET O) Settings
Use the SET O command to establish the SELOGIC control equations that
control the CCOUT bits. There are a total of 64 bits for each of Ports 17 and
18 that can be directly controlled by these equations. The card installed in the
slot must support the CCOUT bits to access these settings. These elements act
as inputs to each card installed in a card slot. Table 7.12 gives a description of
these settings. For more information on the operation of these settings see
Section 4: SEL
OGIC Control Equations.
Settings Sheets
Using the
Settings Sheets
The following settings sheets show the settings available within each setting
class. Additionally, the settings sheets show the settings available for specific
device configurations.
Table 7.12 Logic (SET O) Settings and Definition
Setting Comment Description
CCOUT1–CCOUT64 CCOUTn= You enter a SELOGIC control equation definition to control
the state of the element bit.
