9.14
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Modbus RTU Protocol

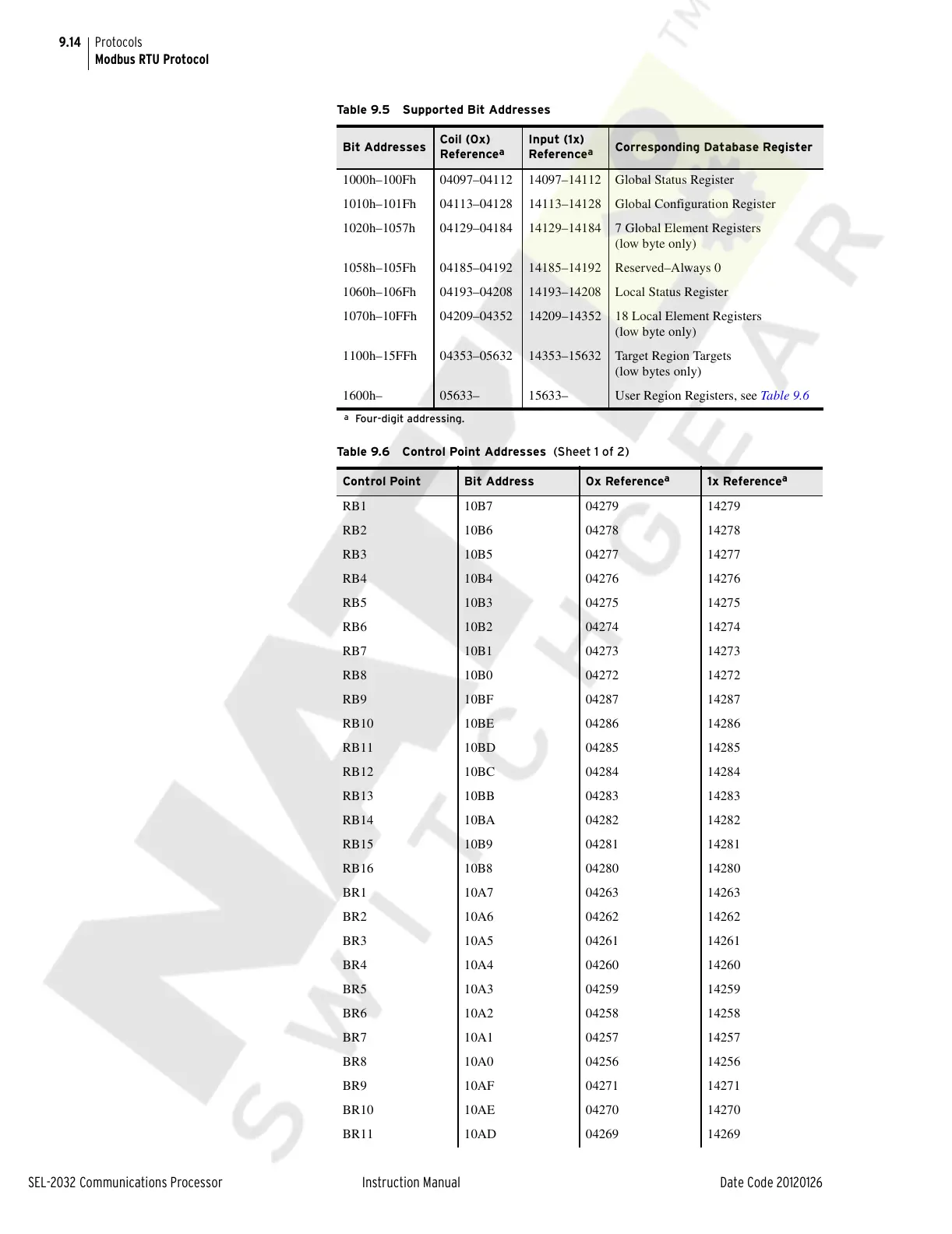

Table 9.5 Supported Bit Addresses
Bit Addresses
Coil (0x)
Reference
a
a
Four-digit addressing.
Input (1x)
Reference
a
Corresponding Database Register
1000h–100Fh 04097–04112 14097–14112 Global Status Register
1010h–101Fh 04113–04128 14113–14128 Global Configuration Register
1020h–1057h 04129–04184 14129–14184 7 Global Element Registers
(low byte only)
1058h–105Fh 04185–04192 14185–14192 Reserved–Always 0
1060h–106Fh 04193–04208 14193–14208 Local Status Register
1070h–10FFh 04209–04352 14209–14352 18 Local Element Registers
(low byte only)
1100h–15FFh 04353–05632 14353–15632 Target Region Targets
(low bytes only)
1600h– 05633– 15633– User Region Registers, see Table 9. 6
Table 9.6 Control Point Addresses (Sheet 1 of 2)
Control Point Bit Address 0x Reference
a
1x Reference
a
RB1 10B7 04279 14279
RB2 10B6 04278 14278
RB3 10B5 04277 14277
RB4 10B4 04276 14276
RB5 10B3 04275 14275
RB6 10B2 04274 14274
RB7 10B1 04273 14273
RB8 10B0 04272 14272
RB9 10BF 04287 14287
RB10 10BE 04286 14286
RB11 10BD 04285 14285
RB12 10BC 04284 14284
RB13 10BB 04283 14283
RB14 10BA 04282 14282
RB15 10B9 04281 14281
RB16 10B8 04280 14280
BR1 10A7 04263 14263
BR2 10A6 04262 14262
BR3 10A5 04261 14261
BR4 10A4 04260 14260
BR5 10A3 04259 14259
BR6 10A2 04258 14258
BR7 10A1 04257 14257
BR8 10A0 04256 14256
BR9 10AF 04271 14271
BR10 10AE 04270 14270
BR11 10AD 04269 14269
