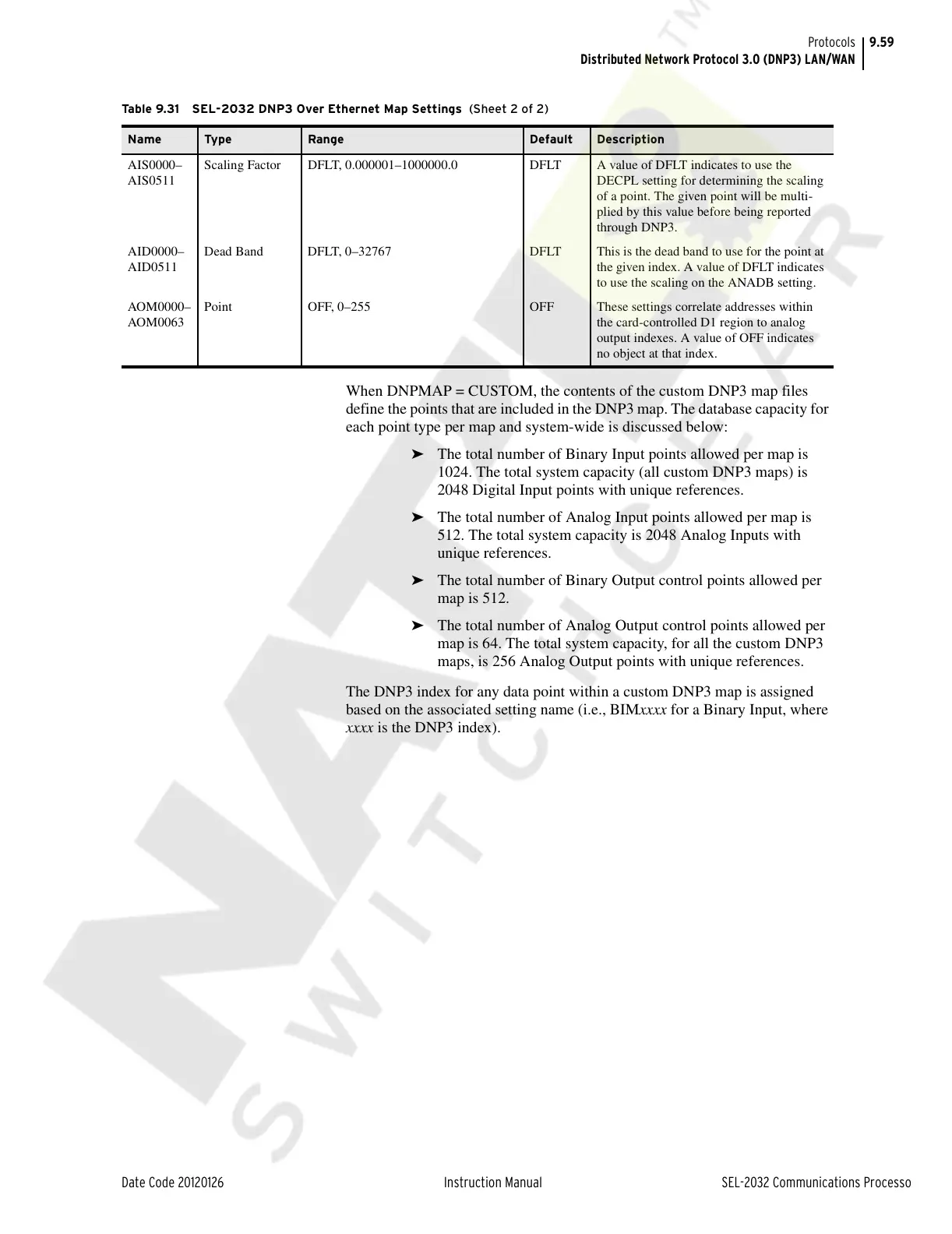

9.59
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
When DNPMAP = CUSTOM, the contents of the custom DNP3 map files
define the points that are included in the DNP3 map. The database capacity for
each point type per map and system-wide is discussed below:
➤ The total number of Binary Input points allowed per map is
1024. The total system capacity (all custom DNP3 maps) is
2048 Digital Input points with unique references.
➤ The total number of Analog Input points allowed per map is
512. The total system capacity is 2048 Analog Inputs with
unique references.
➤ The total number of Binary Output control points allowed per
map is 512.
➤ The total number of Analog Output control points allowed per
map is 64. The total system capacity, for all the custom DNP3
maps, is 256 Analog Output points with unique references.
The DNP3 index for any data point within a custom DNP3 map is assigned
based on the associated setting name (i.e., BIMxxxx for a Binary Input, where
xxxx is the DNP3 index).
AIS0000–
AIS0511
Scaling Factor DFLT, 0.000001–1000000.0 DFLT A value of DFLT indicates to use the
DECPL setting for determining the scaling
of a point. The given point will be multi-
plied by this value before being reported
through DNP3.
AID0000–
AID0511
Dead Band DFLT, 0–32767 DFLT This is the dead band to use for the point at
the given index. A value of DFLT indicates
to use the scaling on the ANADB setting.
AOM0000–
AOM0063
Point OFF, 0–255 OFF These settings correlate addresses within
the card-controlled D1 region to analog
output indexes. A value of OFF indicates
no object at that index.
Table 9.31 SEL-2032 DNP3 Over Ethernet Map Settings (Sheet 2 of 2)
Name Type Range Default Description
