6.13
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Database
Region Descriptions
08Abh BIN_STATUS int Binary Communications Status.
Bit 0 = SER receipt enabled
Bit 1 = SER transmit enabled
Bit 2 = Unread SER data available
Bit 3 = SER Data lost (from this
port point of view)
Bit 4–8 = Unused
Bit 3 cleared by STATUS C or
STATUS R command.
08Ach BIN_MSG_LOST int Number of Binary
Messages Dropped due to
buffer overflow or invalid header.
Cleared by STATUS C
or STATUS R command.
08ADh UNSOL_SER_RX int Number of Unsolicited
Binary SER Messages Received.
Cleared by STATUS C
or STATUS R command.
08AEh SER_RX_NOACK int Number of Unsolicited
Binary SER Messages
Received but not Acknowledged.
Cleared by STATUS C
or STATUS R command.
08AFh UNSOL_SER_TX int Binary SER Messages Transmitted.
Cleared by STATUS C
or STATUS R command.
08B0h SER_TX_NOACK int Binary SER Messages
Transmitted but not Acknowledged.
Cleared by STATUS C
or STATUS R command.
a
See Archive Data Regions on page 6.21 for important information about archive memory
clear operation frequency.

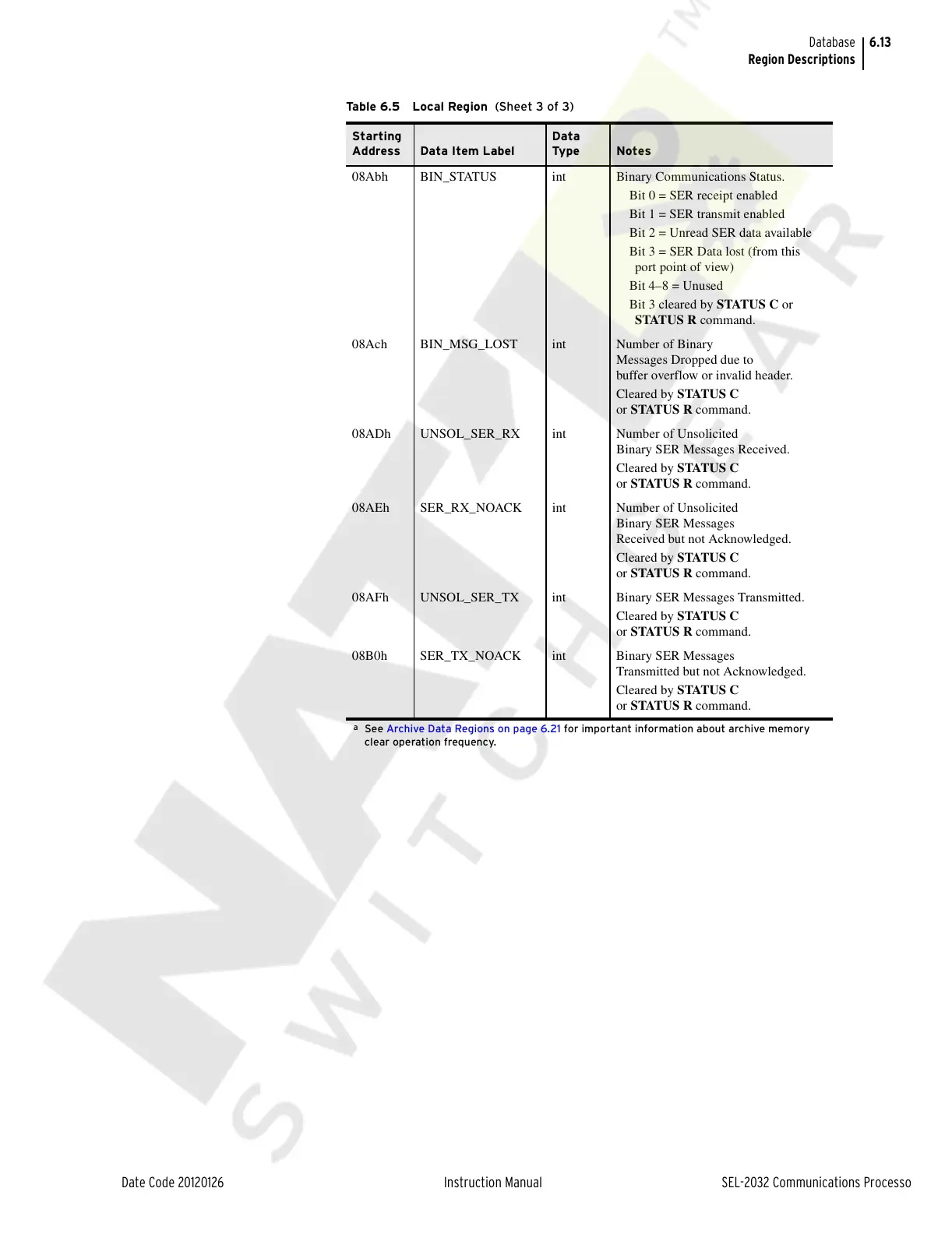

Table 6.5 Local Region (Sheet 3 of 3)
Starting
Address
Data Item Label
Data
Type
Notes
