9.45
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
RPADR04 DNP3 Address for Master 4
(0–65519)
0–65519 1
DNPIP04 IP Address for Master 4
(www.xxx.yyy.zzz)
20 Char String “”
•
•
•
DNPCL04 Enable Controls for Master 4 (Y, N) Y, N N
RPADR05 DNP3 Address for Master 5
(0–65519)
0–65519 1
DNPIP05 IP Address for Master 5
(www.xxx.yyy.zzz)
20 Char String “”
•
•
•
DNPCL05 Enable Controls for Master 5 (Y, N) Y, N N
RPADR06 DNP3 Address for Master 6
(0–65519)
0–65519 1
DNPIP06 IP Address for Master 6
(www.xxx.yyy.zzz)
20 Char String “”
•
•
•
DNPCL06 Enable Controls for Master 4 (Y, N) Y, N N
RPADR07 DNP3 Address for Master 7
(0–65519)
0–65519 1
DNPIP07 IP Address for Master 7
(www.xxx.yyy.zzz)
20 Char String ""
•
•
•
DNPCL07 Enable Controls for Master 7 (Y, N) Y, N N
RPADR08 DNP3 Address for Master 8
(0–65519)
0–65519 1
DNPIP08 IP Address for Master 8
(www.xxx.yyy.zzz)
20 Char String “”
•
•
•
DNPCL08 Enable Controls for Master 8 (Y, N) Y, N N
RPADR09 DNP3 Address for Master 9
(0–65519)
0–65519 1
DNPIP09 IP Address for Master 9
(www.xxx.yyy.zzz)
20 Char String “”
•
•
•
DNPCL09 Enable Controls for Master 9 (Y, N) Y, N N

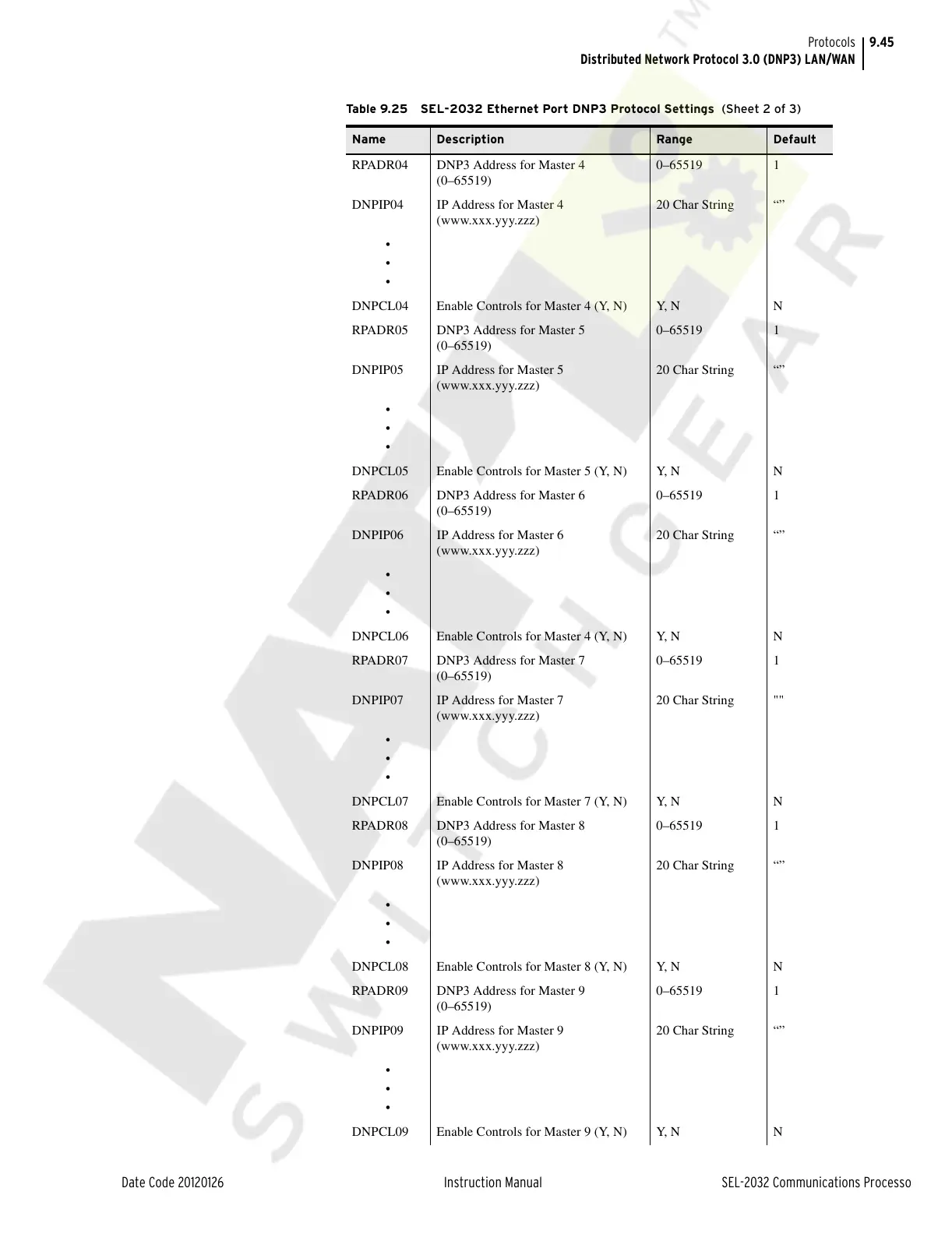

Table 9.25 SEL-2032 Ethernet Port DNP3 Protocol Settings (Sheet 2 of 3)
Name Description Range Default
