9.50
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
22 0 Counter Change Event—
All Variations
1 6, 7, 8
22 1 32-Bit Counter Change
Event Without Time
1 6, 7, 8 129 17, 28
22 2
e
16-Bit Counter Change
Event Without Time
1 6, 7, 8 129, 130 17, 28
22 3 32-Bit Delta Counter
Change Event Without
Time
22 4 16-Bit Delta Counter
Change Event Without
Time
22 5 32-Bit Counter Change
Event With Time
1 6, 7, 8 129 17, 28
22 6 16-Bit Counter Change
Event With Time
1 6, 7, 8 129 17, 28
22 7 32-Bit Delta Counter
Change Event With Time
22 8 16-Bit Delta Counter
Change Event With Time
23 0 Frozen Counter Event—
All Variations
23 1 32-Bit Frozen Counter
Event Without Time
23 2 16-Bit Frozen Counter
Event Without Time
23 3 32-Bit Frozen Delta
Counter Event Without
Time
23 4 16-Bit Frozen Delta
Counter Event Without
Time
23 5 32-Bit Frozen Counter
Event With Time
23 6 16-Bit Frozen Counter
Event With Time
23 7 32-Bit Frozen Delta
Counter Event With Time
23 8 16-Bit Frozen Delta
Counter Event With Time
30 0 Analog Input—All
Varia ti ons
1 0, 1, 6, 7,
8, 17, 28
30 1 32-Bit Analog Input 1 0, 1, 6, 7,
8, 17, 28
129 0, 1,
17, 28
30 2 16-Bit Analog Input 1 0, 1, 6, 7,
8, 17, 28
129 0, 1,
17, 28
30 3 32-Bit Analog Input
Without Flag
1 0, 1, 6, 7,
8, 17, 28
129 0, 1,
17, 28

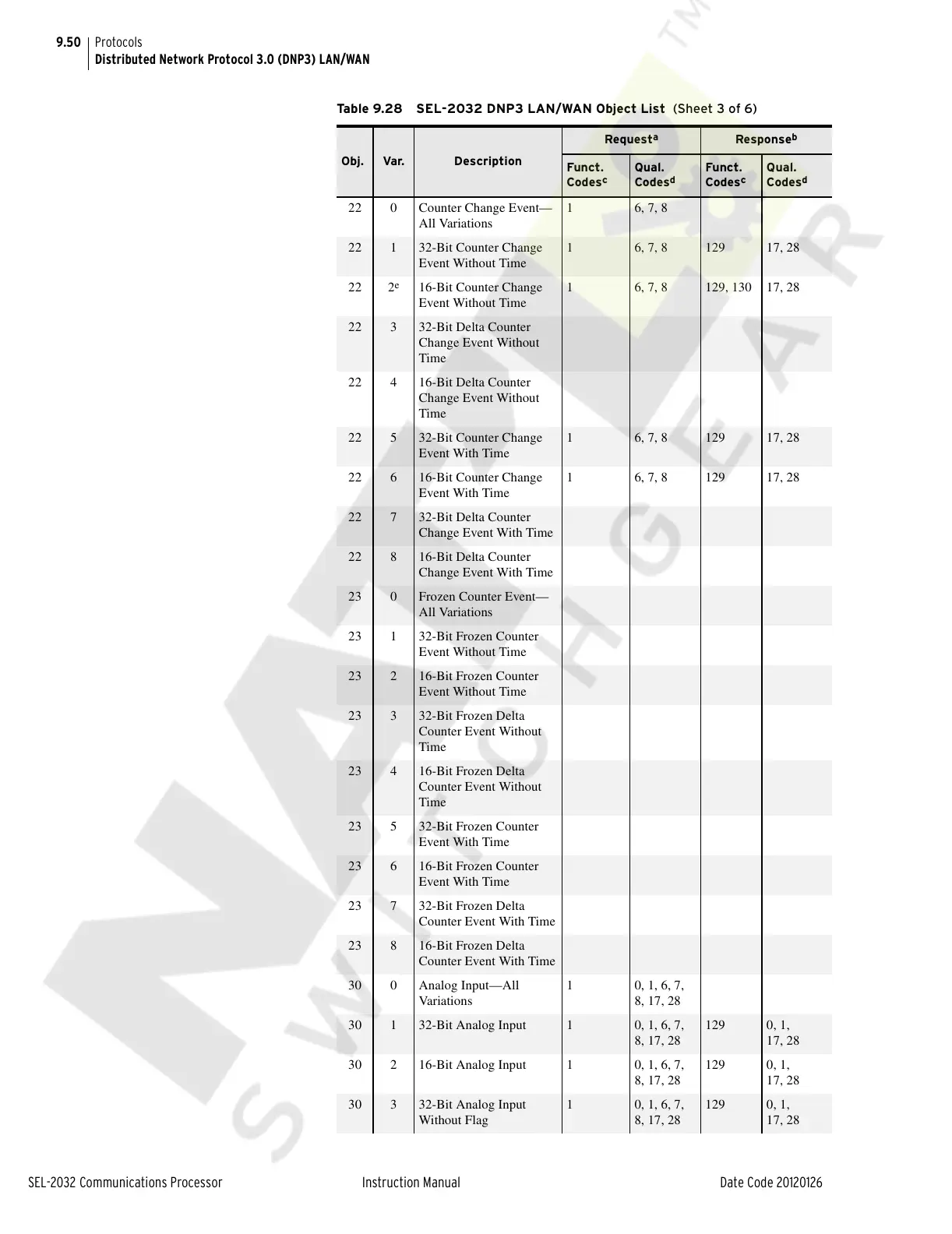

Ta b le 9.2 8 S EL - 203 2
DNP3 LAN/WAN Object List (Sheet 3 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
