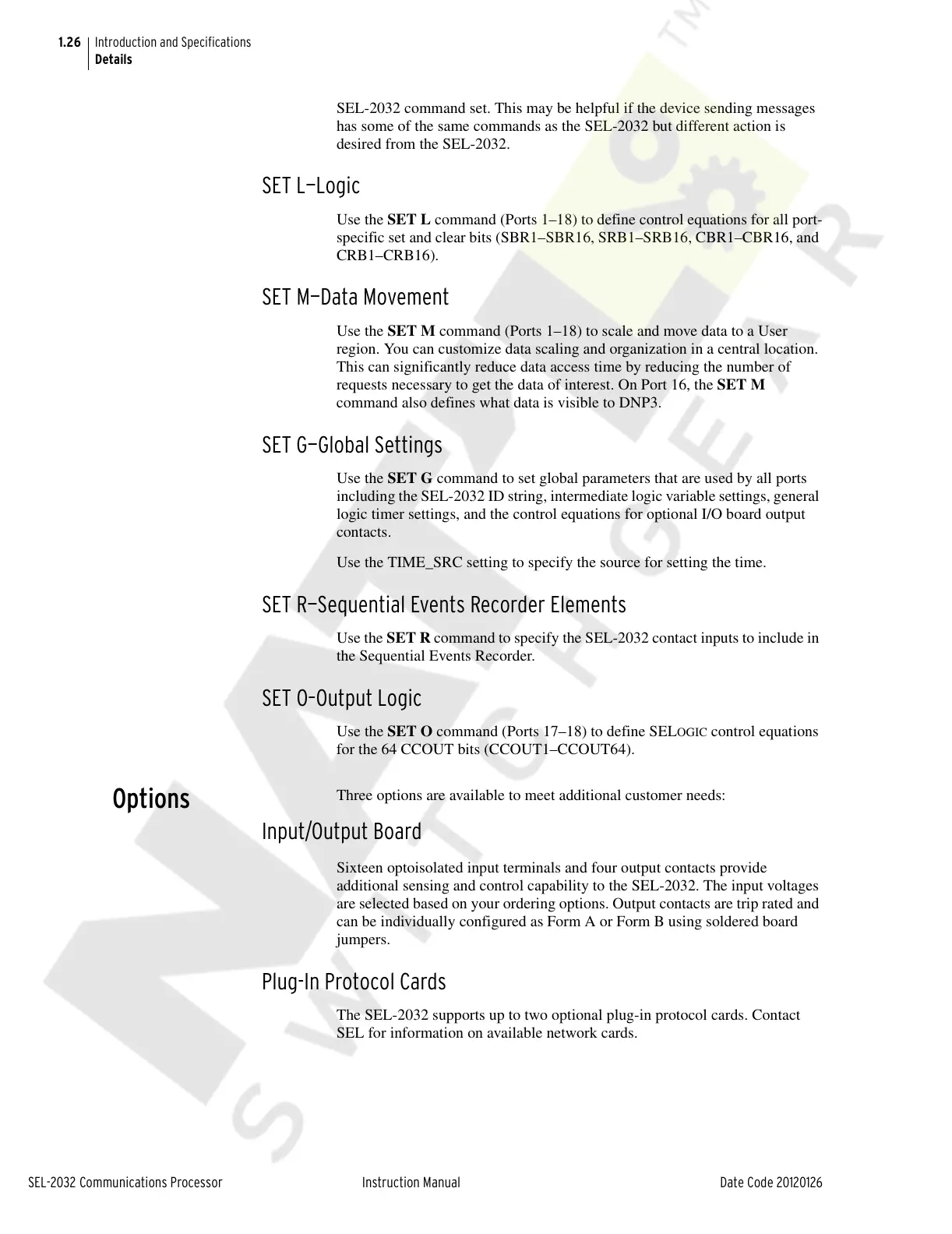

1.26
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Introduction and Specifications
Details
SEL-2032 command set. This may be helpful if the device sending messages
has some of the same commands as the SEL-2032 but different action is
desired from the SEL-2032.
SET L—Logic
Use the SET L command (Ports 1–18) to define control equations for all port-
specific set and clear bits (SBR1–SBR16, SRB1–SRB16, CBR1–CBR16, and
CRB1–CRB16).
SET M—Data Movement
Use the SET M command (Ports 1–18) to scale and move data to a User
region. You can customize data scaling and organization in a central location.
This can significantly reduce data access time by reducing the number of
requests necessary to get the data of interest. On Port 16, the SET M
command also defines what data is visible to DNP3.
SET G—Global Settings
Use the SET G command to set global parameters that are used by all ports
including the SEL-2032 ID string, intermediate logic variable settings, general
logic timer settings, and the control equations for optional I/O board output
contacts.
Use the TIME_SRC setting to specify the source for setting the time.
SET R—Sequential Events Recorder Elements
Use the SET R command to specify the SEL-2032 contact inputs to include in
the Sequential Events Recorder.
SET O–Output Logic
Use the SET O command (Ports 17–18) to define SELOGIC control equations
for the 64 CCOUT bits (CCOUT1–CCOUT64).
Options
Three options are available to meet additional customer needs:
Input/Output Board
Sixteen optoisolated input terminals and four output contacts provide
additional sensing and control capability to the SEL-2032. The input voltages
are selected based on your ordering options. Output contacts are trip rated and
can be individually configured as Form A or Form B using soldered board
jumpers.
Plug-In Protocol Cards
The SEL-2032 supports up to two optional plug-in protocol cards. Contact
SEL for information on available network cards.
