Section 05 ELECTRICAL SYSTEM
Subsection 06 (INFORMATION CENTER)
MULTIFUNCTION
GAUGE USB POWER
VOLTAGETESTATGAUGE
GAUGE
PINOUT B
BATTERY SPECIFICATION
Pin 2 0
Negative (-)
post
Close to 5 V
219100949-018-005_a

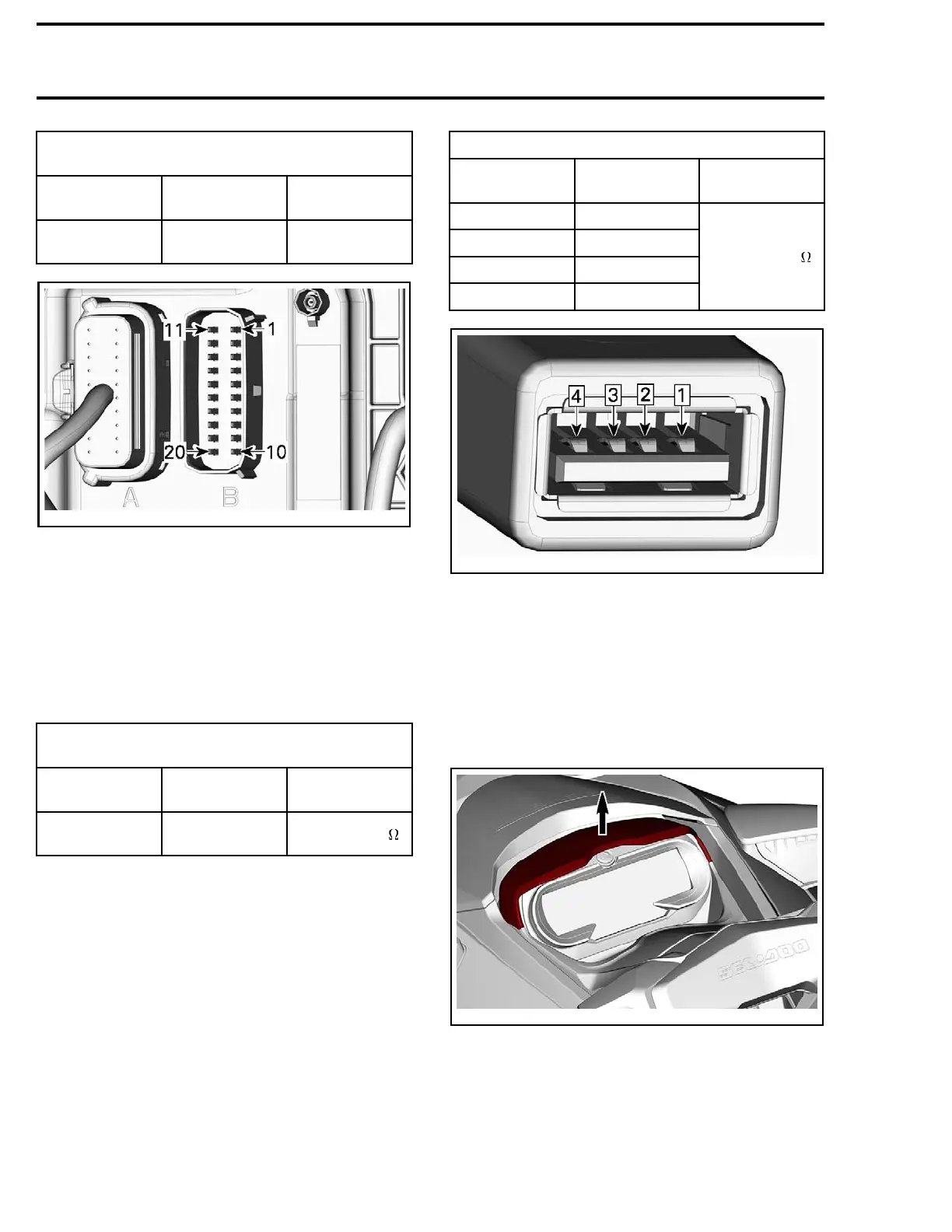

GAUGE PINOUT B
If result is not as per specification, test with a new
gauge.
If result is good, carry out a
TESTING THE MUL-
TIFUNCTION GAUGE USB CIRCUIT
.
Testing the Multifunction Gauge USB
Ground Circuit
1. Test as per the following table.
MULTIFUNCTION GAUGE USB GROUND
CIRCUIT T
EST AT USB CONNECTOR
USB
CONNECTOR
BATTERY SPECIFICATION
Pin 4
Negative (-)
post
Closeto1.5
If the result is not within specification, check the
related circuit.
Testing the Multifunction Gauge USB
Circuit
1. Disconnect Connector CL_B from the gauge.
2. Test as per the following table.
MULTIFUNCTION
GAUGE USB CIRCUIT TEST
CL_B
CONNECTOR
USB
CONNECTOR
SPECIFICATION
Pin20 Pin1(5V)
Pin 9 Pin 2 (Data -)
Pin 8 Pin 3 (Dat a +)
Pin 1 0
Pin 4 (Ground)
Close to 0.4
219100949-018-004_a
USB CONNECTOR PINOUT
1. Pin 1 (5V)
2. Pin 2 (Data -)
3. Pin 3 (Data +)
4. Pin 4 (Ground)
If results are out of specifications, repair the de-
fective c ircuit.
Removing the Multifunction Gauge
Remove gauge support cover.
21910
0963-015-001
TYPICAL
Pull top of gauge and lift.
142 219101047-001
