SeaDoo GTX Series 2022 User Manual

Section 06 ST EE RING AND PROPULSION
Subsection 01 (STEERING)

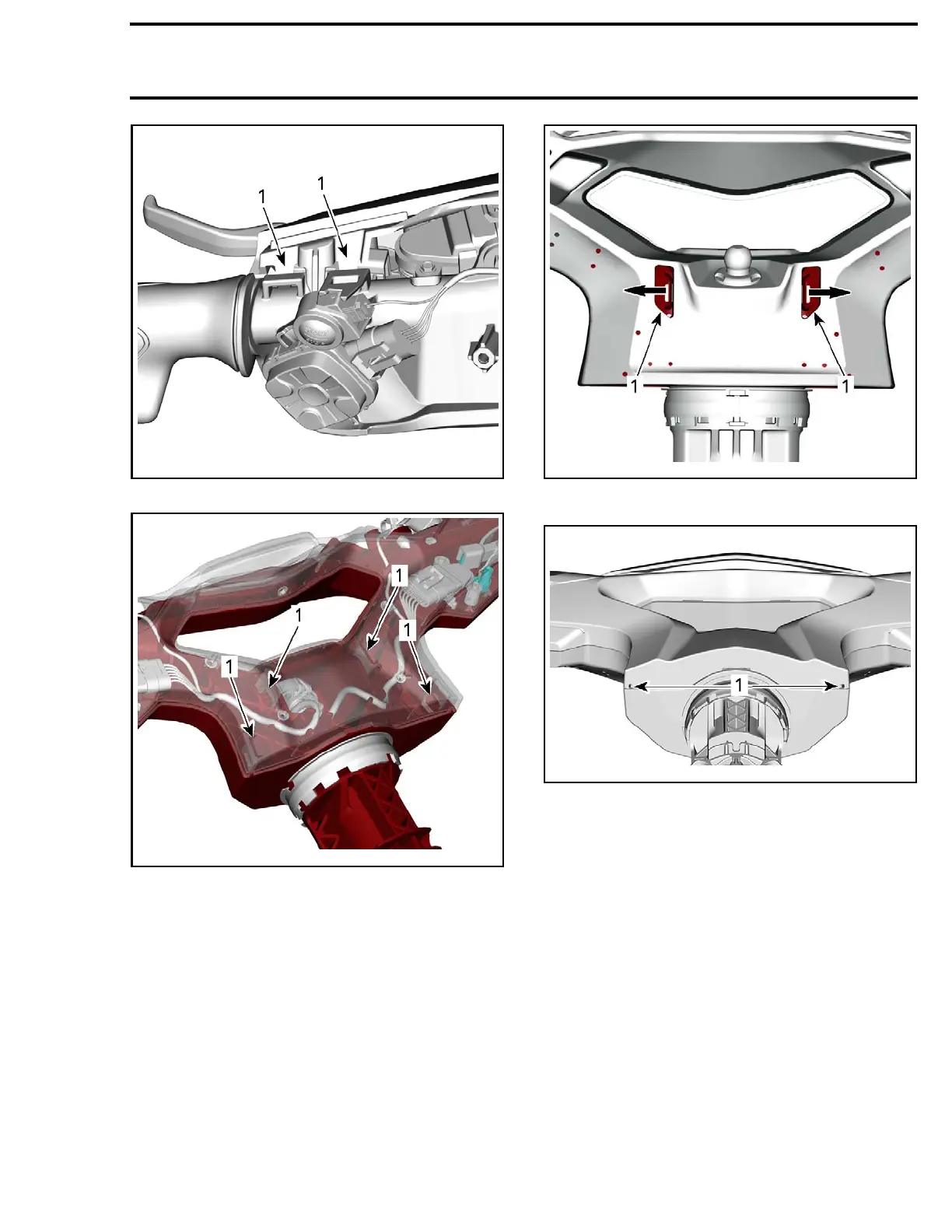

219100893-028-008_a
1. Retaining tab
219100893-028-007_a
1. Retaining tab
2.2 In both cavities under the steering cover,
release both inner retaining tabs using a
long screwdriver.
219100893-028-028_a
VIEWED FROM UNDERNEATH
1. Rear cavity
219100893-028-303_a
Installing the Steering Cover
1. Make sure all harnesses are routed properly
into their positioning slots and are away from
the outer edges. This will ensure the wires will
not get pinched.
219100963-017 155

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
