SeaDoo GTX Series 2022 - Page 199

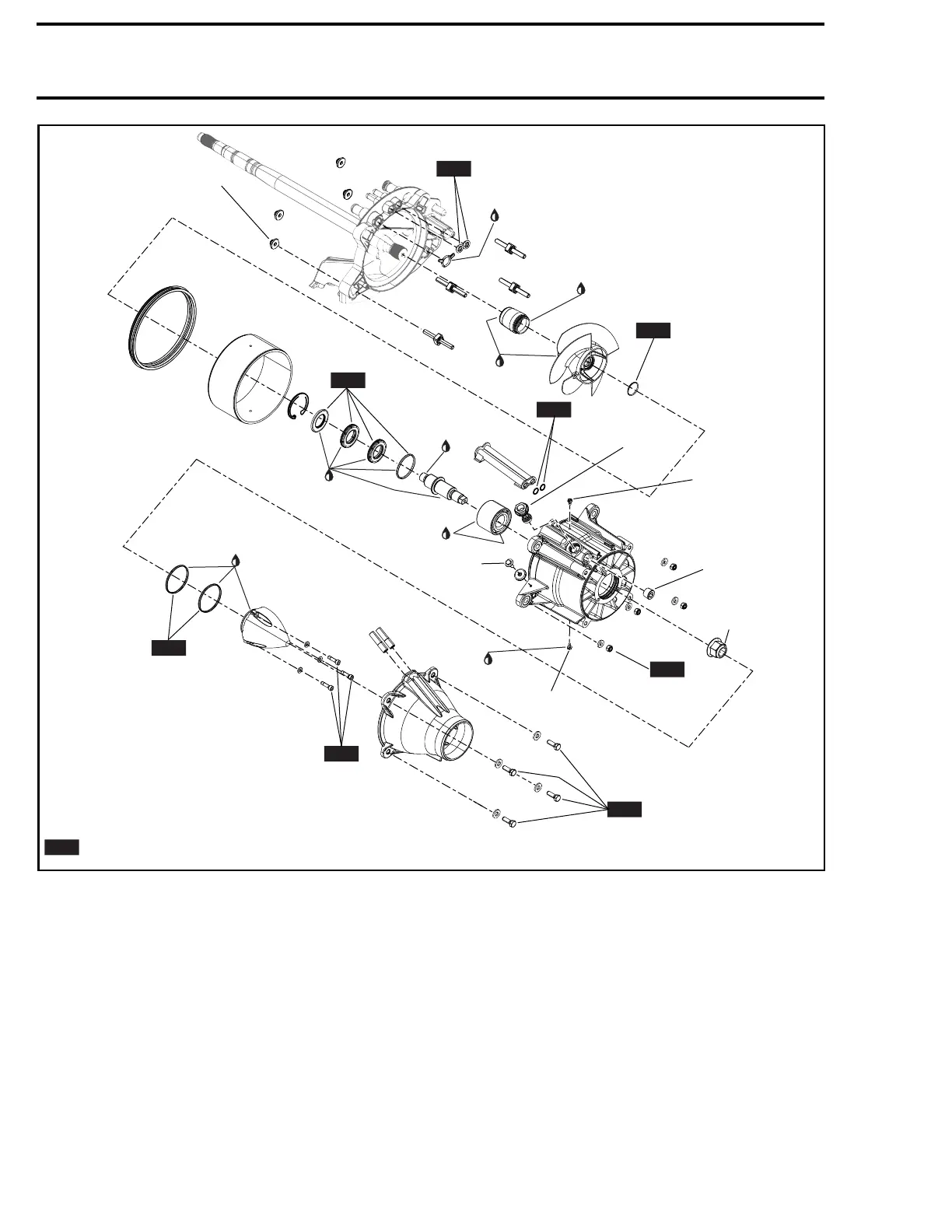

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
125 ± 10 N•m
(92 ± 7 lbf•ft)
12 ± 1 N•m
(106 ± 9 lbf•in)
2.5 ± 0.5 N•m
(22 ± 4 lbf•in)
9 ± 1 N•m
(80 ± 9 lbf•in)
8 ± 1 N•m
(71 ± 9 lbf•in)
9 ± 1 N•m
(80 ± 9 lbf•in)
2.5 ± 0.5 N•m
(22 ± 9 lbf•in)
25 ± 1 N•m
(18 ± 1 lbf•ft)
7.5 ± 0.5 N•m
(66 ± 4 lbf•in)
NEW
NEW
NEW
NEW
NEW
NEW
NEW
Loctite 518
Loctite 438
Loctite 243
25 ± 1 N•m
(18 ± 1 lbf•ft)
25 ± 1 N•m
(18 ± 1 lbf•ft)
NEW
Jet Pump
Bearing grease
Jet Pump
Bearing grease
Jet Pump
Bearing grease
Loctite 767
(antiseize
lubricant)
Triple guard
grease
= Component must be replaced when removed.
NEW
219100963-012-100
184 219100963-019
