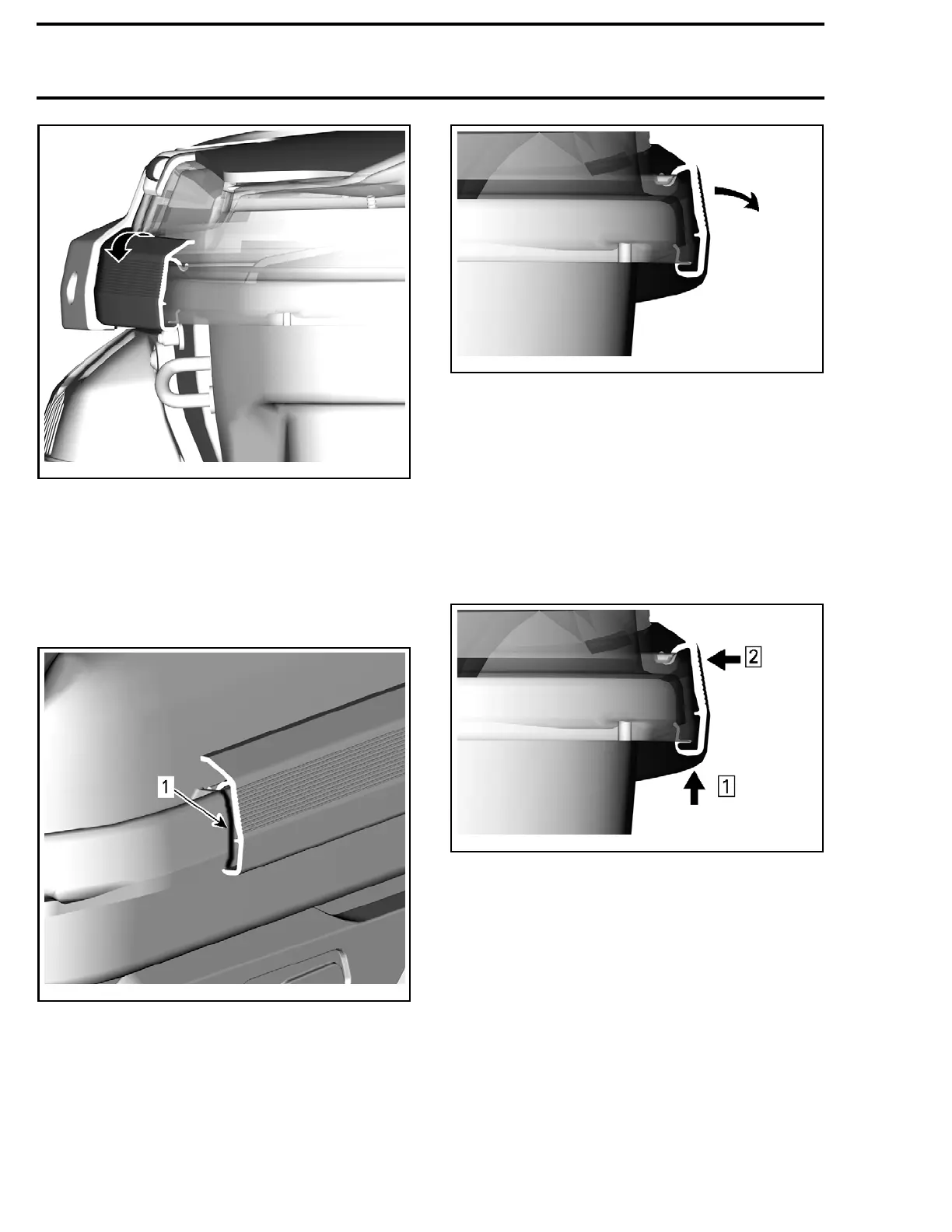

219100893-032-008_a
4. Remove rear bumper from vehicle.
Side Bumpers
1. Remove front and rear bumpers.
2. Using a marker, trace a line at bumper end.
NOTE: These marks will be used during installa-
tion.
2191
00893-032-009_a
1. Trace a line at end of bumper
3. Pull the top of bumper to unclip it from body.
219100893-032-712_a
Installing the Bumper
Front and Rear Bumper
The installation is the reverse of the removal pro-
cedure.
Side Bumpers
1. Insert bumper over body lip.
1.1 Insert lower section first.
1.2 Insert upper section last.
219100893-032-712_b
1. Insert
lower edge
2. Push towards watercraft
NOTE: Use soapy water to ease bumper installa-
tion.
