SeaDoo GTX Series 2022 User Manual

Section 07 BODY AND HULL
Subsection 01 (BODY)
219100963-021-008

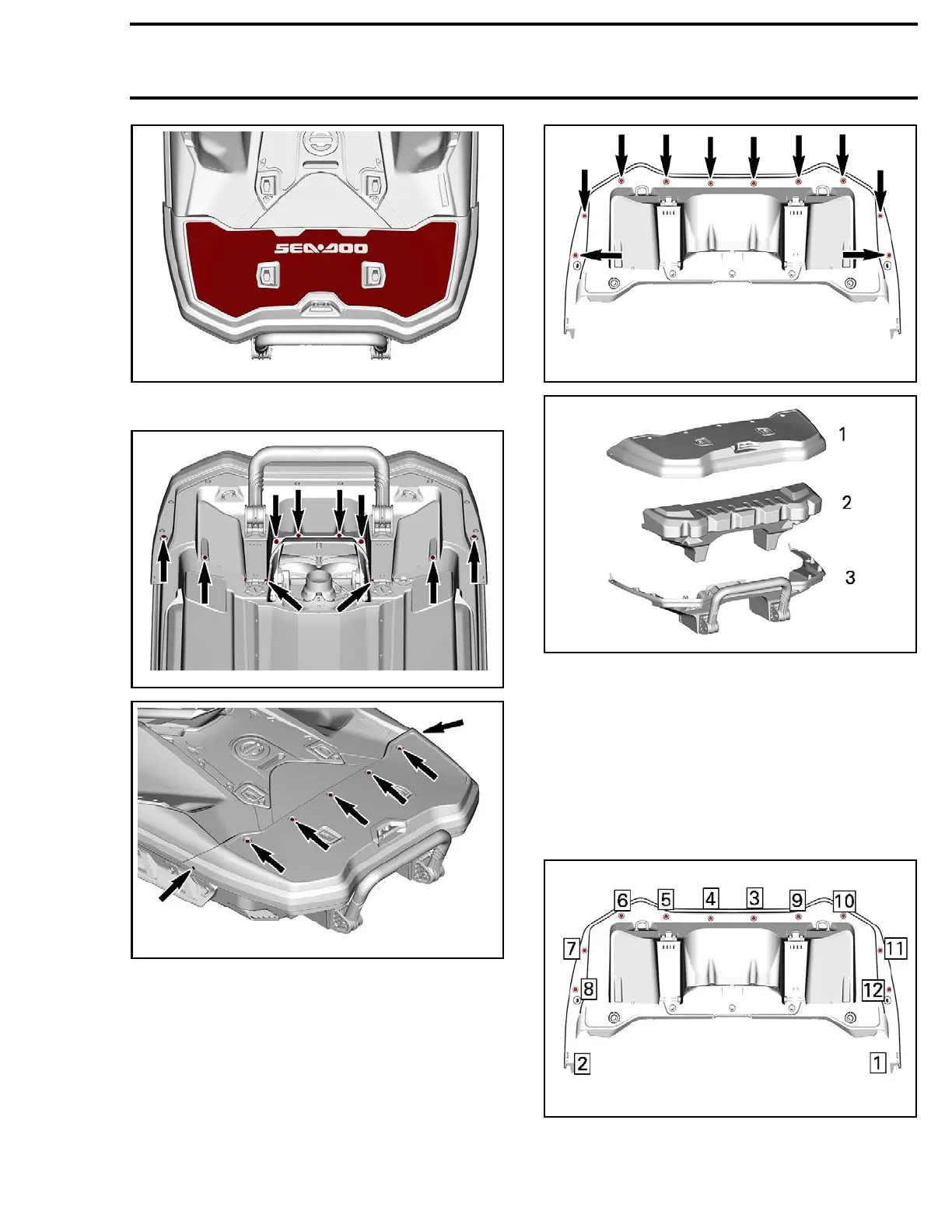

Remove the following fasteners.
219100963-021-010
219100963-021-009
Remove extension.
To open the extension, remove the following fas-
teners.
219100963-021-011
219100963-021-012
1. Extention body
2. Extension float
3. Extension hull
Installing the Fish PRO Extension
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Refer to the exploded view for tightening torques.
Assemble the body and hull by following the tight-
ening sequence.
219100963-021-016
Install the extension to the body by following the
tightening sequence.
219100963-021 235

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
