Section 02 ENGINE
Subsection 03 (EXHAUST SYSTEM)
219100893-012-314_a

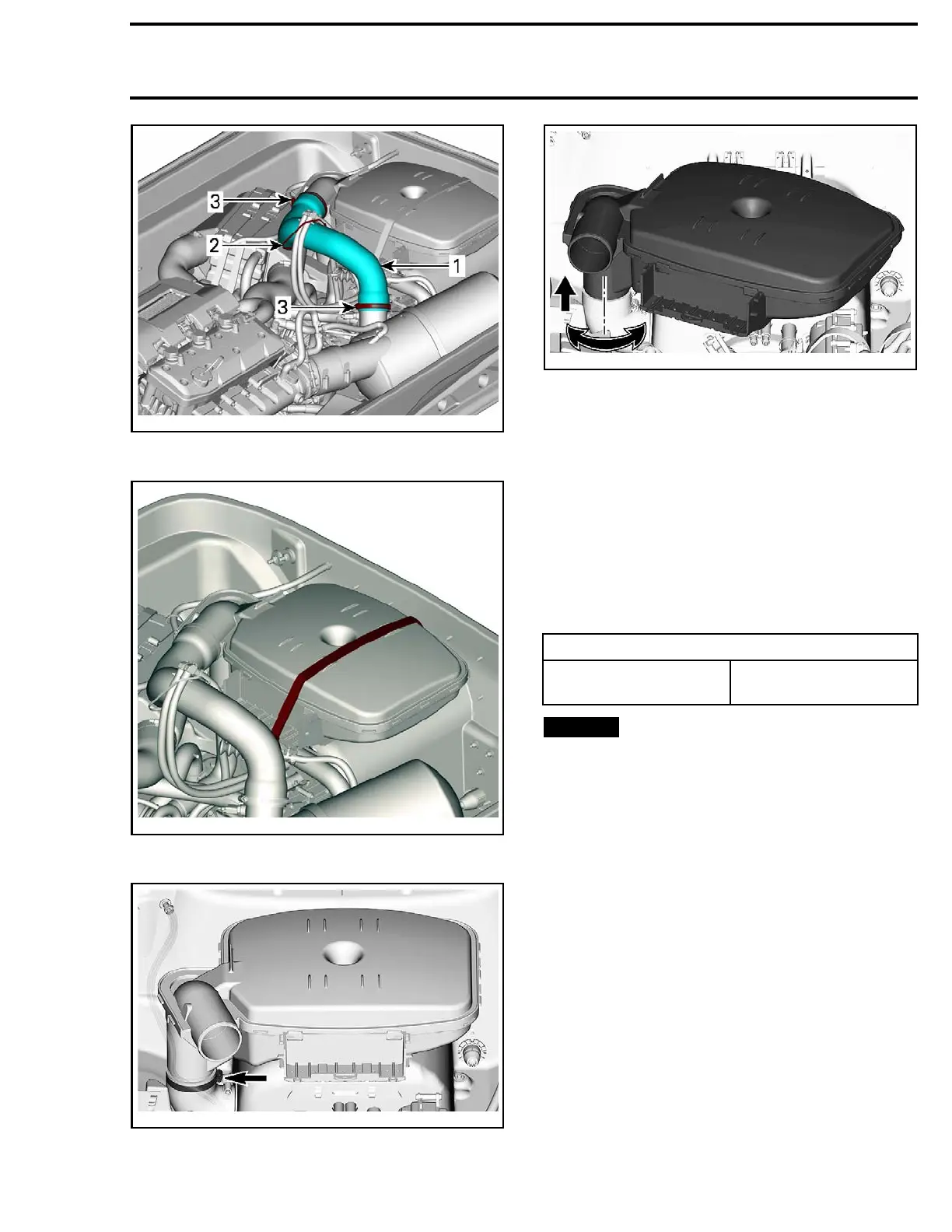

Remove strap holding resonator.
219100893-012-318_a
Loosen upper clamp from rear exhaust hose.
smr2016-012-013_a
Rotate resonator to free it up from rear exhaust
hose.
smr2016-012-014_a
Inspecting the Resonator
Inspect parts condition paying attention for defor-
mation, cracks or other damage. Check hoses.
Replace any defective part.
Installing the Resonator
Installation is the reverse of the removal proce-
dures. However, pay attention to the following.
After installation, ensure there is no water or ex-
haust gas leak when the engine is running. Test
run the engine while supplying water to the ex-
haust system.
TIGHTENING TORQUE
Crossover pipe clamps
4N•m ± 1N•m
(35 lbf•in ±9lbf•in)
NOTICE
Never run engine without supplying
water to the exhaust system when watercraft is
out of water.
