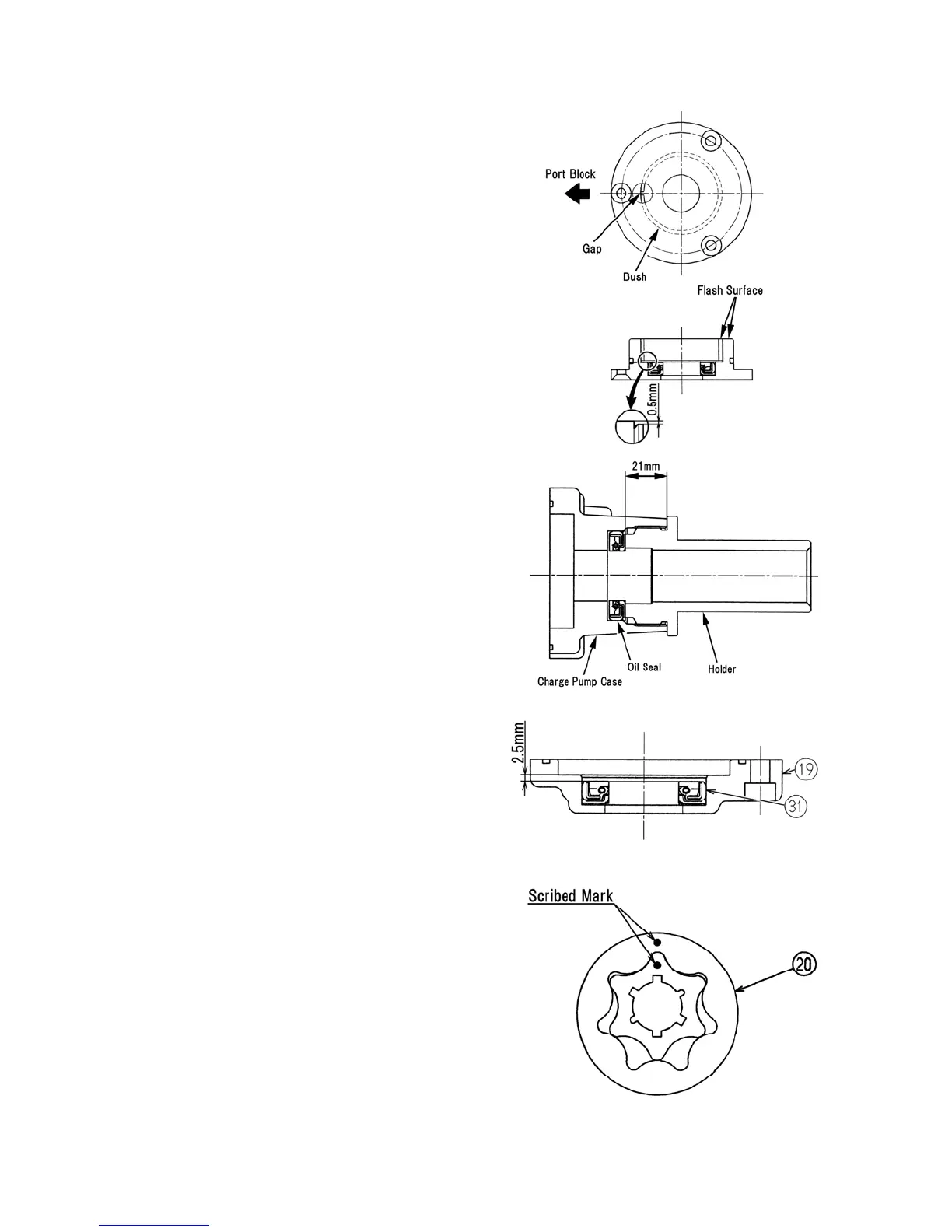

4) Trunnion cover assembly
① Press the oil seal to 0.5 mm in depth from counter
bore of the trunnion cover.
② Install the bush in the cover and take care bush’s
gap direction toward the port block.
③ Press the bush flush with trunnion the port block.
(5) Charge pump case assembly
・Install the oil seal to 21mm in depth from charge
pump case surface.
･Install the holder (17) on the charge pump case and
tighten to 58.8 N･m (6 kgf･m).
(6) Cover assembly
Install the oil seal (31) to 2.5 mm in depth from counter
bore surface.
(7) Trochoid pump assembly
Align the scribed mark on the inner and outer of
trochoid pump, and the scribed mark toward the plate
(18), figure 389Y.
382Y
383Y
384Y
385Y
