60

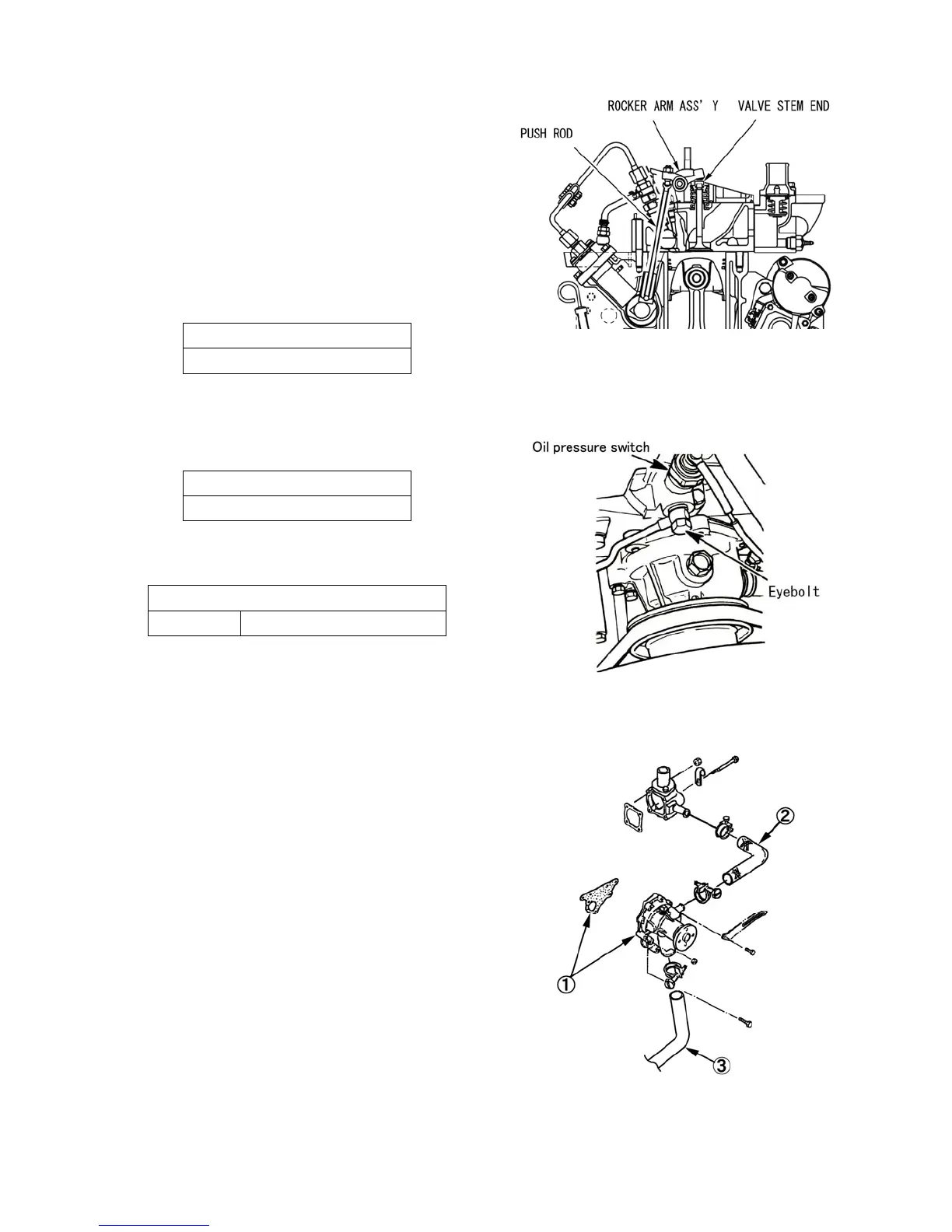

(23) Valve clearance adjustment
Untighten the nut of the intake and exhaust valves and
adjust the clearance to 0.2 mm.
NOTE:
1. Adjust the valve clearance while cold.
2. Set the No. 1 cylinder at the compression TDC, adjust
the valve clearance of the No. 1 intake and exhaust
valves, and No. 2 exhaust valve, turn the crankshaft
240° counterclockwise when viewed from the front side,
and adjust the No. 2 intake, and No. 3 intake and
exhaust valves.
Lock nut tightening torque
11.8 – 15.7 N·m {1.2 – 1.6 kgf·m}
(24) Oil pressure switch
Oil pressure switch tightening torque
15 – 20 N·m {1.5 – 2.0 kgf·m}
(25) Oil pipe
Eye bolt tightening torque
M8 10 – 13 N·m {1.0 – 1.3 kgf·m}
(26) Water pump ass’y · Bypass hose
➀ Install and tighten the gasket and water pump ass’y.
➁ Connect the thermostat case and water pump case with
bypass hose.
➂ Install the radiator hose.
(27) Connector
Install the connector to the glow plugs. (Reference Figure
103Y)
174Y
175Y
176Y
