11

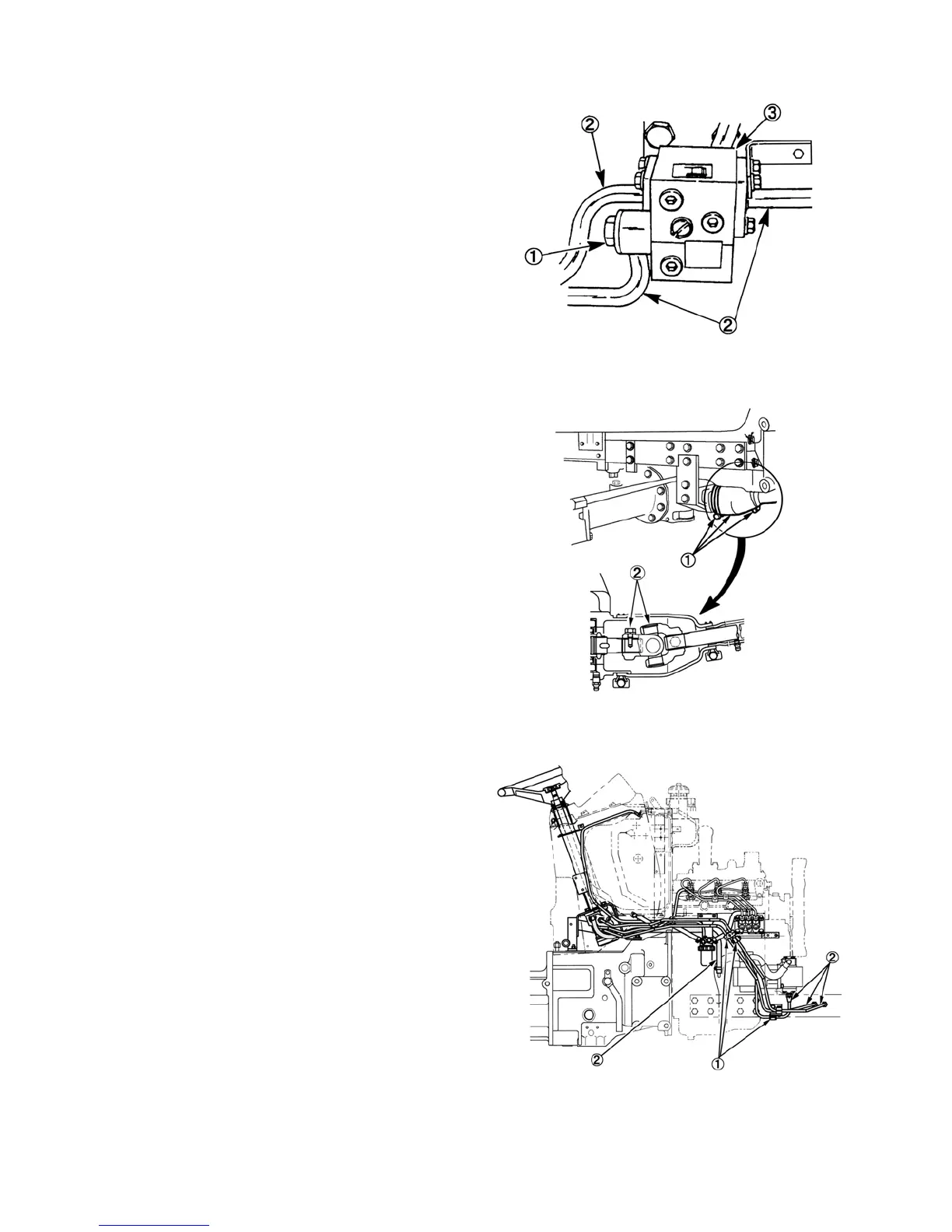

12) DIVERTER VALVE
① Remove the banjo bolts and disconnect the sump return
from the diverter valve disconnect the other end from the
sump.
② Disconnect the system pressure line from the diverter
valve and the lift cover.
③ Remove the diverter valve.
13) RUBBER AND DRIVE SHAFT
① Loosen the clamps on the front wheel drive shaft rubber
boot and slide the boot rearward to gain access to the
shaft universal joint.
② Remove the universal joint locking bolts from the front
axle and transmission end universal joints and if
necessary, remove the drive shaft.
14) POWER STEERING PIPING
① Remove the clamps for power steering oil pipings.
② Disconnect the oil pipes and hoses and remove them.
15) WIRING
① Disconnect the wire harness from the starter, alternator,
engine temperature switch, glow plug and engine oil
pressure switch, and move the harness out of the way.
② Remove the starter mounting bolts and remove the
starter.
017Y
018Y
018-1Y
