27） HST CRUISE LATCH RELEY
Description and Location

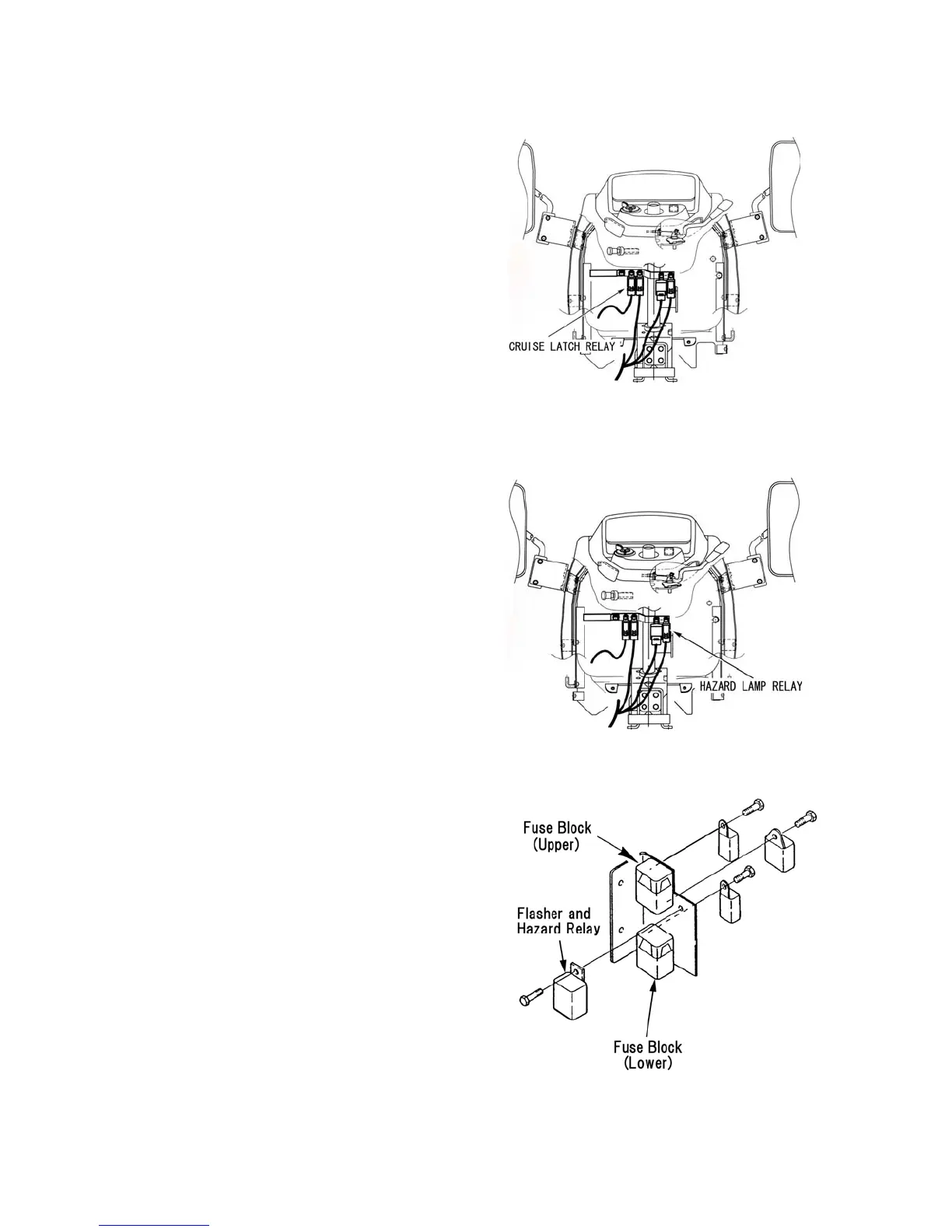

HST cruise latch relay is used to
automatically complete (close) a circuit.
The relay is located under the instrument
panel in the dashboard.
It is connected with black color connector of
main circuit.
The HST cruise relay is same part and
interchangeable with safety start relay.
The relay description and test operation are
referred to “ 6 ） RELAY FOR SAFETY
START.”
The coil is energized when HST switch is
“ ON”position and current flows to HST cruise
magnet.
28） HAZARD LAMP RELAY
Description
Hazard lamp relay is installed in the
dashboard. The hazard lamp relay is same
part and interchangeable with safety start
relay.
The relay description and test operation are
referred to “ 6 ） RELAY FOR SAFETY
START.”
29）FLASHER AND HAZARD RELAY
Description
Flasher and hazard relay is installed near
fuse blocks.
The flasher and hazard relay controls the
flashing of the turn light and/or hazard light,
and pilot light in the instrument panel by the
turn signal switch or hazard light switch.
NOTE：
Hazard relay is not working when the four
turn signal lights are not connected.
