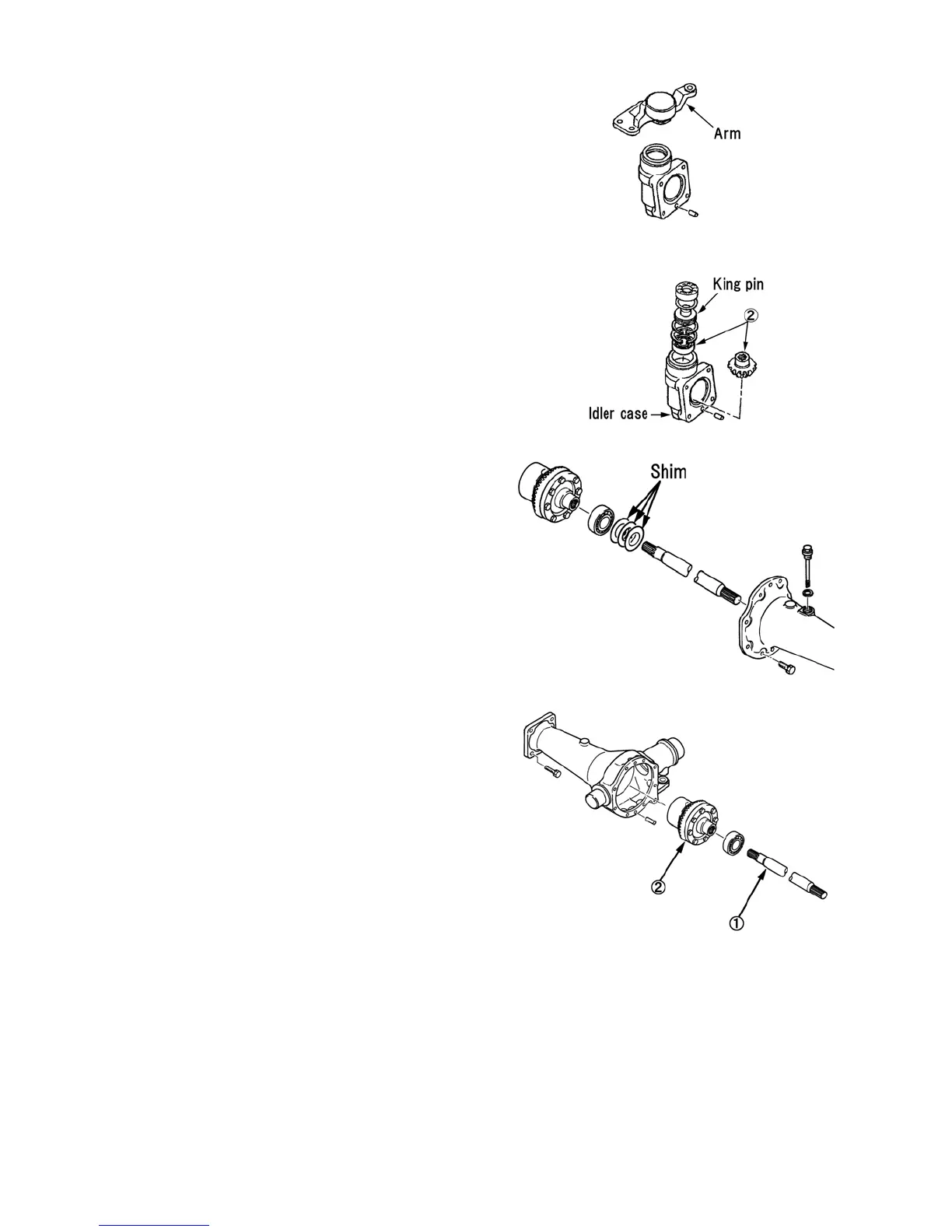

6. Arm（knuckle）
Remove the right and left arms from the idler case.
7. Transmission case (idler) · King pin
① Remove the right and left transmission cases, O-ring
and king pin as a set.
② Remove the final pinion and bearing from in the idler
case.
③ Remove the bearing, king pin, O-ring and snap ring
from idler case.
8. Wheel shaft case (left)
NOTE:
When any shims have been installed between the case and
bearing, note their thickness and quantity and take care
not to miss them.
9. Differential shaft (left)・Differential ass’y
1. Differential shaft（left）
2. Differential ass’y
