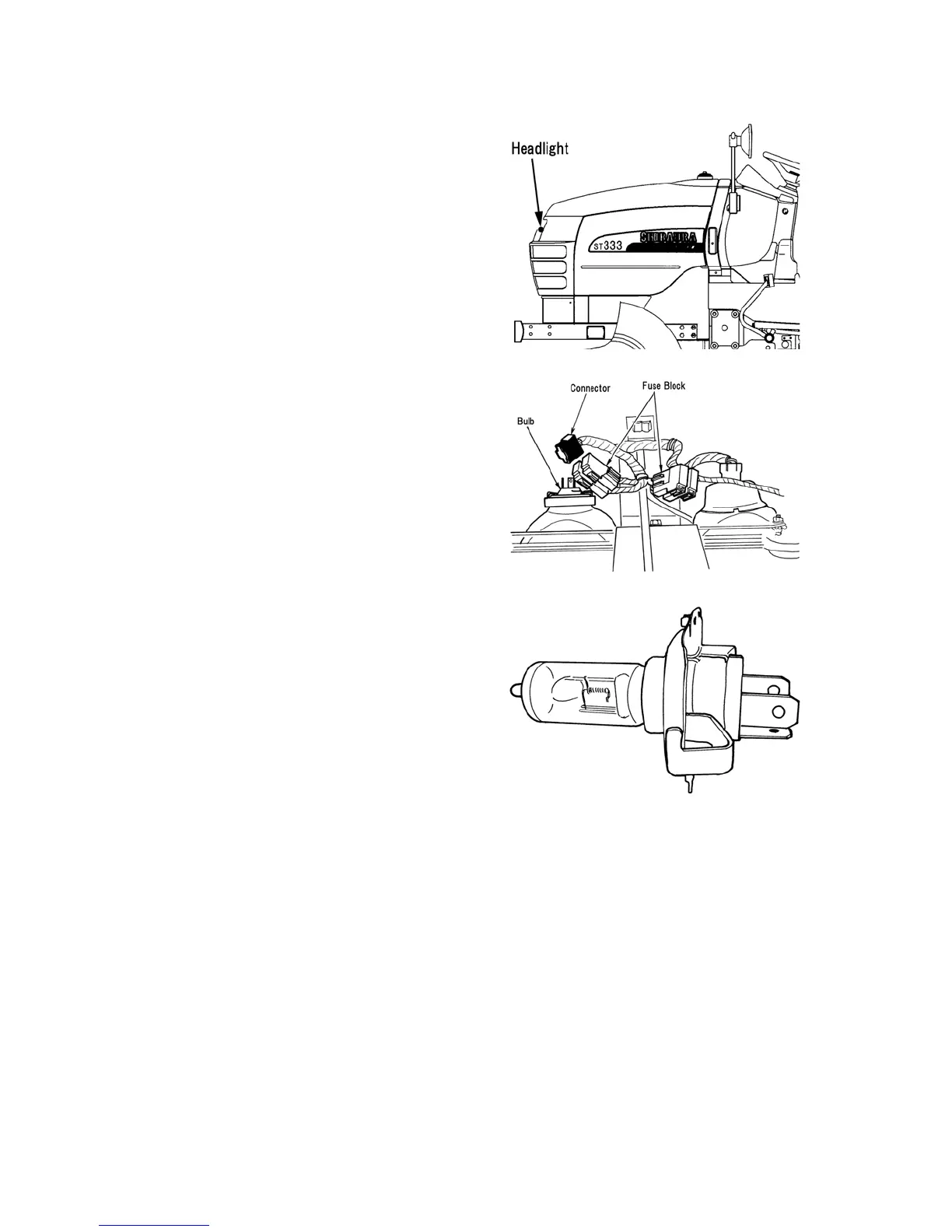

19） HEADLIGHT
Description
The headlights are located on the front of the
engine hood.
The headlight assemblies contain a bulb each
that may be replaced if the bulb burns out.
Removal
To remove the head light bulb as follows：
1. Disconnect the negative battery cable
from the battery.
2. Disconnect the connecter from the
defective headlight assembly.
3. Remove the rubber.
4. Turn the bulb support and pull out the
bulb.
Inspection
NOTE：
1.
Replace the headlight bulb with new
bulb.
2. Do not touch naked fingers to the bulb
glass.
Inspect the bulb and filament for damage or
corrosion. Replace as necessary.
Installation
1. Place the headlight bulb in place and
turn the bulb support to clockwise so that
locks bulb into the headlight assembly.
2. Install the rubber on the headlight
assembly.
3. Install the connector on the headlight
terminal.
4. Install the negative terminal to the
negative battery terminal.
562Y
563Y
564Y
