2. SPECIFICATIONS
Name
Two－axle type HST
Model
HVFD23F －R28 －P －LT
Max. input speed
3000 rpm
Output speed
0－2800 rpm
Pump swash plate inclination angle
0－±18°
Max. working pressure
27.5MPa [280 ㎏/c ㎡]（Relief set pressure）
Charging circuit pressure
0.4-0.6 MPa[4.1－6.1 ㎏/c ㎡] at engine 2800
rpm.
Case internal pressure
Less than 0.098 MPa [1 ㎏/c ㎡]
Pump capacity (variable displacement type)
0－23.4 cc/rev.
Motor capacity (fixed displacement type)
23.4 ㏄/rev.
Charge pump capacity
6.2 ㏄/rev.

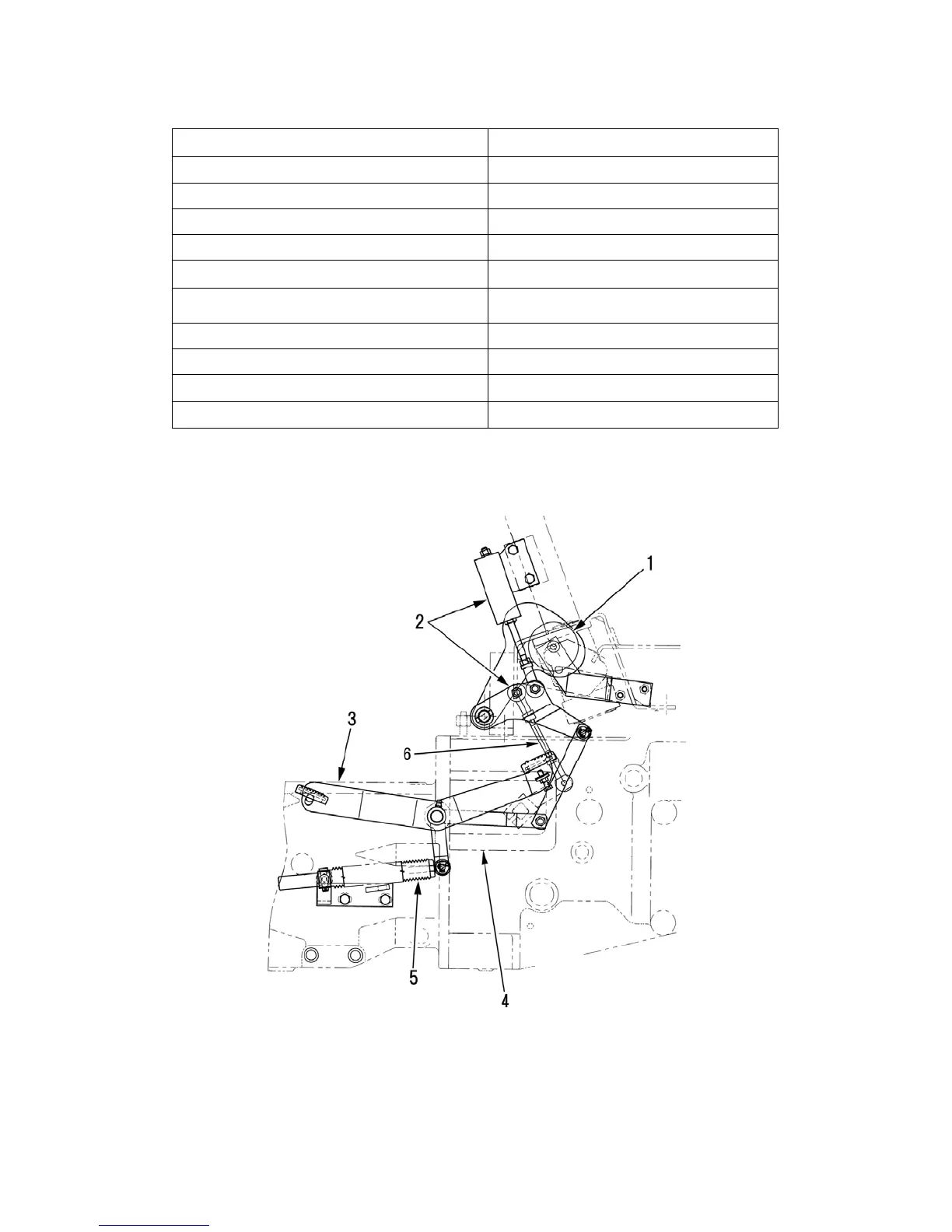

3. NAME OF UNITS
1) Control unit
361Y
1. Cruise control magnet
2. Neutral control linkage
3. Foot pedal
4. HST unit
5. Damper
6. HST control rod
