2） Inspection

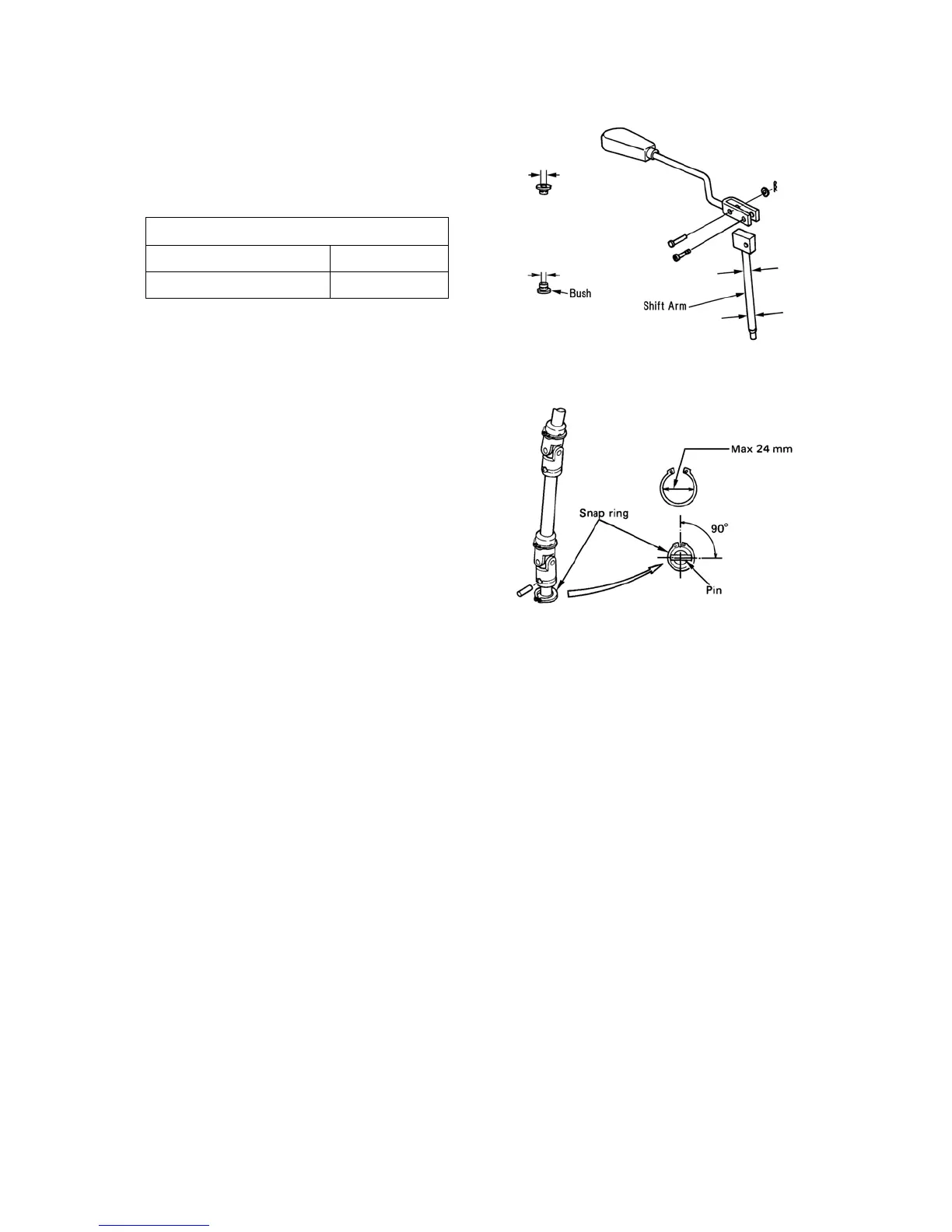

1. Check the clearance between the shift arm and
bush and replace if the service limit is exceeded.
Clearance between shift arm and bush
Standard assembling value Service limit
0.19－0.24 mm 0.5 mm
3） Reassembling
Reassemble units in the reverse order to disassembly,
taking care to the following points.
1. When connecting the shift arm and link ass'y, the
pin should be at the right angle to the snap ring
end gap. The snap ring should not be expanded to
more φ24 in bore at the time of installation.
2. Apply the grease to contact surface of change lever
and shift arms.
